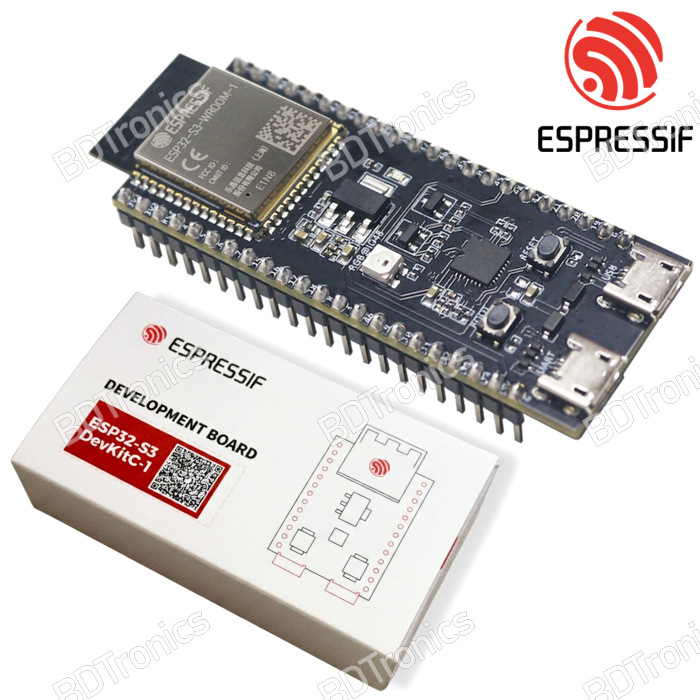

Made by Espressif Systems Original & Authentic ESP32-S3-DevKitC-1-N8R8 is a powerful development board designed for advanced Wi-Fi and Bluetooth Low Energy (BLE) applications. Built around the ESP32-S3-WROOM series module, this board is optimized for modern IoT, AIoT, and embedded system projects requiring reliable wireless connectivity, efficient signal processing, and neural network acceleration.

The ESP32-S3-DevKitC-1 provides easy access to most GPIO pins through standard pin headers, making it highly suitable for rapid prototyping, education, and professional development. With native USB OTG support, an integrated USB-to-UART bridge, onboard RGB LED, and robust power management, this development board enables fast setup and efficient debugging. This is an original Espressif product, featured and supplied by BDTronics in Bangladesh.

Product images are for reference only and may vary slightly from the actual product. Use a proper data-capable USB cable for programming, as charge-only cables will not work.

Features:

• Original Espressif ESP32-S3-DevKitC-1-N8R8 development board

• Integrated ESP32-S3-WROOM module with Wi-Fi and Bluetooth LE

• High-performance Xtensa 32-bit LX7 dual-core processor

• Neural network acceleration for AI, ML, and signal processing tasks

• Most GPIO pins broken out for flexible hardware interfacing

• Integrated USB-to-UART bridge supporting up to 3 Mbps

• Native USB OTG full-speed support (USB 1.1 compliant)

• Onboard addressable RGB LED controlled via GPIO48

• Boot and Reset buttons for easy firmware flashing

• Stable 5V to 3.3V LDO power regulation

• Compact, breadboard-friendly form factor

• Suitable for beginners, students, and professional developers

How to Use:

• Connect the board to a computer using a data-capable USB cable

• Install ESP-IDF or Arduino IDE with ESP32 board support

• Select the correct board and COM port

• Use BOOT and RESET buttons when flashing firmware if required

• Program and debug using USB-to-UART or native USB interface

• Interface sensors, displays, relays, or other peripherals via GPIO pins

• Use GPIO48 to control the onboard RGB LED for status indication

• Deploy for standalone or connected IoT applications

Applications:

• Wi-Fi and Bluetooth LE IoT device development

• Smart home automation and control systems

• AI and machine learning embedded projects

• Wearable electronics and compact smart devices

• Prototyping and electronics education

• Signal processing and data acquisition systems

• Wireless sensor networks

• Industrial and commercial embedded solutions

Specifications:

• Product Name: ESP32-S3-DevKitC-1-N8R8

• Module: ESP32-S3-WROOM-1 / 1U / 2

• Wireless Protocols: Wi-Fi, Bluetooth Low Energy (BLE)

• Processor: Xtensa 32-bit LX7 dual-core

• GPIO Access: Most GPIO pins available on headers

• USB-to-UART Speed: Up to 3 Mbps

• USB Support: Native USB OTG, USB 1.1 full-speed

• Power Supply: 5V via USB, onboard 3.3V LDO regulator

• RGB LED Pin: GPIO48

• Neural Network Acceleration: Supported

• Operating Temperature: -40°C to +85°C

• Form Factor: Compact, breadboard-compatible

• Shipment Weight: 0.02kg

• Shipment Dimensions: 5 × 5 × 3 cm
