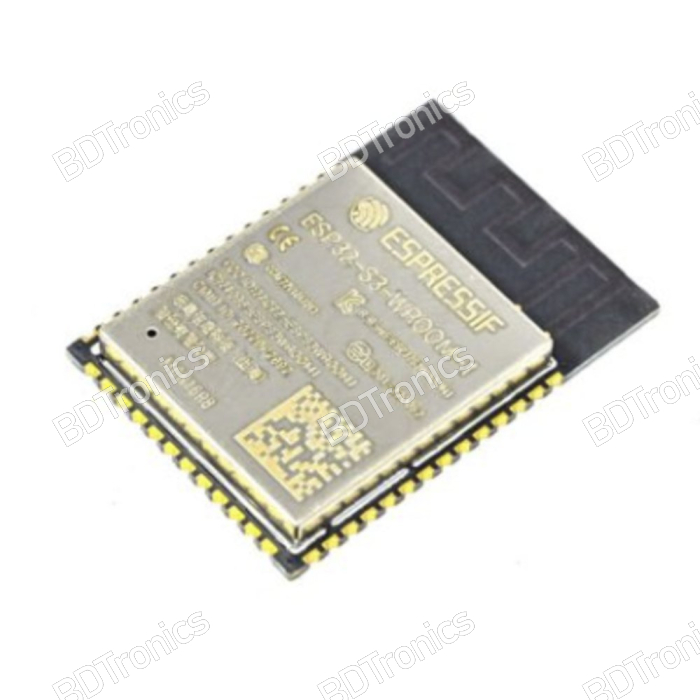

ESP32-S3-WROOM-1-N16R8 is an original Espressif ESP32-S3 Wi-Fi and Bluetooth LE MCU module with 16MB Quad SPI Flash and 8MB Octal SPI PSRAM. BDTronics offers this genuine Espressif ESP32-S3-WROOM-1-N16R8 module in Bangladesh for IoT devices, AIoT applications, embedded systems, smart home products, robotics, industrial electronics, display projects, audio applications, and custom PCB development. Espressif identifies ESP32-S3-WROOM-1 as a dual-core Wi-Fi + Bluetooth LE module with extensive peripherals and hardware acceleration for neural-network computing and signal-processing workloads. (Espressif Systems)

The ESP32-S3-WROOM-1-N16R8 combines the ESP32-S3 SoC with 16MB Flash and 8MB PSRAM, making it suitable for applications that require more memory than standard ESP32 modules. BDTronics supplies this original Espressif module for developers building custom ESP32-S3 hardware, AI-enabled IoT products, wireless controllers, smart appliances, displays, sensors, automation systems, and embedded products. (Espressif Systems)

Features:

• Original Espressif ESP32-S3-WROOM-1 module

• Part number: ESP32-S3-WROOM-1-N16R8

• Dual-core ESP32-S3 MCU

• 16MB Quad SPI Flash

• 8MB Octal SPI PSRAM

• 2.4GHz Wi-Fi connectivity

• Bluetooth Low Energy (Bluetooth LE)

• PCB antenna

• Hardware acceleration for neural-network workloads

• Hardware acceleration for signal-processing applications

• Rich peripheral interface

• USB 2.0 Full-Speed OTG

• USB Serial/JTAG support

• UART interfaces

• SPI interface

• I2C interface

• I2S interface

• LCD interface

• Camera interface

• LED PWM

• Motor-control PWM (MCPWM)

• ADC

• Touch sensing

• Temperature sensor

• SD/MMC host controller

• TWAI controller compatible with CAN 2.0

• Suitable for AIoT applications

• Suitable for custom PCB designs

• Suitable for advanced IoT products

• Compact 18.0 × 25.5 × 3.1mm module

• Available from BDTronics in Bangladesh

Espressif's module documentation lists ESP32-S3-WROOM-1-N16R8 with 16MB Flash, 8MB PSRAM and a PCB antenna. (Espressif Systems)

Specifications:

• Brand: Espressif Systems

• Series: ESP32-S3

• Module: ESP32-S3-WROOM-1

• Ordering Code: ESP32-S3-WROOM-1-N16R8

• MCU: ESP32-S3

• CPU: Dual Core

• Flash: 16MB

• Flash Interface: Quad SPI

• PSRAM: 8MB

• PSRAM Interface: Octal SPI

• Wireless: 2.4GHz Wi-Fi

• Bluetooth: Bluetooth Low Energy

• Antenna: Integrated PCB antenna

• Module Dimensions: 18.0 × 25.5 × 3.1mm

• Operating Temperature: -40°C to +65°C

• USB: Full-Speed USB 2.0 OTG

• USB Serial/JTAG: Yes

• UART: Yes

• SPI: Yes

• I2C: Yes

• I2S: Yes

• LCD Interface: Yes

• Camera Interface: Yes

• ADC: Yes

• Touch Sensor: Yes

• Temperature Sensor: Yes

• LED PWM: Yes

• MCPWM: Yes

• SD/MMC Host: Yes

• TWAI/CAN 2.0 compatible controller: Yes

• Module Type: Wi-Fi + Bluetooth LE MCU module

• Seller: BDTronics

• Market: Bangladesh

Espressif's current module documentation confirms the N16R8 configuration as 16MB Quad SPI Flash plus 8MB Octal SPI PSRAM. R8 variants have a specified ambient operating range of -40°C to +65°C under the standard configuration. (Espressif Systems)

ESP32-S3-WROOM-1-N16R8 Memory Configuration:

The N16R8 suffix identifies the memory configuration of this ESP32-S3 module.

• N16: 16MB Flash memory

• R8: 8MB PSRAM

• Flash: Quad SPI

• PSRAM: Octal SPI

• Suitable for memory-intensive embedded applications

• Larger Flash capacity provides additional space for firmware, web interfaces, graphics, configuration data, and application resources.

• PSRAM provides additional working memory for applications such as displays, image processing, audio processing, networking, and AI-related workloads.

Espressif's official part-number documentation specifically identifies ESP32-S3-WROOM-1-N16R8 as an ESP32-S3 WROOM-1 module with 16MB Flash and 8MB PSRAM. (Developer Portal)

Wireless Connectivity:

• 2.4GHz Wi-Fi

• Bluetooth Low Energy

• Integrated PCB antenna

• Suitable for wireless IoT products

• Suitable for Wi-Fi-enabled controllers

• Suitable for BLE sensors and peripherals

• Suitable for wireless data logging

• Suitable for smart-home devices

• Suitable for connected industrial equipment

• Suitable for wireless configuration and control

USB Capabilities:

ESP32-S3 provides a Full-Speed USB 2.0 OTG interface, allowing suitable applications to communicate with USB devices and peripherals directly. The module also supports USB Serial/JTAG functionality. (Espressif Systems)

• USB 2.0 Full-Speed OTG

• USB device applications

• USB host applications

• USB Serial/JTAG

• USB-based debugging

• USB firmware development

• USB peripheral integration

Peripheral Interfaces:

ESP32-S3 provides a broad range of peripheral functions, making ESP32-S3-WROOM-1 suitable for complex embedded designs. (Espressif Systems)

• UART

• SPI

• I2C

• I2S

• LCD interface

• Camera interface

• ADC

• Touch sensor

• Temperature sensor

• LED PWM

• MCPWM

• SD/MMC host

• TWAI controller

• USB Serial/JTAG

• USB OTG

The ESP32-S3 includes three UART controllers, with supported UART communication speeds up to 5Mbps according to Espressif's module documentation. (Espressif Systems)

AI and Edge Computing Applications:

ESP32-S3 is designed with acceleration capabilities for neural-network computing and signal processing, making it suitable for edge AI and AIoT products. (Espressif Systems)

• AI-enabled IoT

• Wake-word detection

• Speech command recognition

• Image processing

• Face detection

• Face recognition

• Smart control panels

• Smart speakers

• Intelligent sensors

• Local data processing

• Embedded machine-learning applications

Display and Camera Projects:

The ESP32-S3 peripheral set includes LCD and camera interfaces, making this module useful for advanced graphical and vision-related embedded projects. (Espressif Systems)

• TFT LCD projects

• SPI displays

• Smart displays

• Touch interfaces

• Camera systems

• Image capture

• Image processing

• Portable control panels

• Smart dashboards

• HMI applications

Audio and Signal Processing:

The ESP32-S3 provides I2S and signal-processing acceleration, making it suitable for embedded audio and digital signal applications.

• Digital microphones

• Audio streaming

• Voice-controlled devices

• Speech recognition

• Audio processing

• Internet-connected audio devices

• Smart speakers

• Voice command systems

• DSP-related embedded applications

IoT Applications:

• Wi-Fi IoT devices

• Bluetooth LE devices

• Smart home products

• Smart appliances

• Wireless sensors

• Environmental monitoring

• Remote data logging

• Home automation

• Industrial IoT

• Wireless controllers

• Smart switches

• Smart meters

• Connected displays

• Remote monitoring systems

• Cloud-connected embedded devices

Robotics Applications:

• Robot controllers

• Wi-Fi robot control

• Bluetooth robot control

• Camera-enabled robots

• Autonomous robotics projects

• Motor control

• Servo control

• Sensor fusion

• Wireless telemetry

• Remote-controlled vehicles

• Smart robotic platforms

Industrial and Embedded Applications:

• Industrial IoT controllers

• Data acquisition systems

• Sensor gateways

• Wireless control systems

• Machine monitoring

• Automation controllers

• Embedded HMIs

• Motor control systems

• Smart instrumentation

• Custom industrial electronics

• Custom PCB products

Development and Programming:

ESP32-S3-WROOM-1-N16R8 can be incorporated into custom PCB designs and developed using the Espressif ESP32 development ecosystem.

Suitable development environments and frameworks include:

• ESP-IDF

• Arduino framework

• PlatformIO

• C/C++ embedded development

• Wi-Fi application development

• Bluetooth LE application development

• USB application development

The module is intended for integration into a custom hardware design rather than being a complete development board. A custom PCB should provide the required power regulation, USB circuitry where needed, reset/boot circuitry, antenna clearance, decoupling, and exposed GPIO connections according to Espressif's hardware design recommendations.

PCB Design Considerations:

• Use the official ESP32-S3-WROOM-1 datasheet and hardware design documentation when designing a custom PCB.

• Provide a stable and suitable power supply.

• Place appropriate decoupling capacitors close to power pins.

• Follow Espressif's recommended PCB layout around the integrated PCB antenna.

• Keep copper, ground planes, traces, and other components away from the antenna clearance area as specified by Espressif.

• Provide appropriate boot and reset circuitry where required.

• Consider USB routing requirements when using USB functionality.

• Verify GPIO availability because not every ESP32-S3 peripheral signal is necessarily exposed through every module pin. (Espressif Systems)

Suitable Projects:

• ESP32-S3 IoT device

• ESP32-S3 Wi-Fi controller

• ESP32-S3 Bluetooth LE project

• ESP32-S3 AI project

• ESP32-S3 camera project

• ESP32-S3 display project

• ESP32-S3 touchscreen project

• ESP32-S3 audio project

• ESP32-S3 USB project

• ESP32-S3 robotics project

• ESP32-S3 industrial controller

• ESP32-S3 smart home device

• ESP32-S3 automation controller

• ESP32-S3 wireless sensor

• ESP32-S3 data logger

• ESP32-S3 smart appliance

• ESP32-S3 custom PCB

• ESP32-S3 embedded system

• ESP32-S3 edge AI device

Original Espressif Module:

Supplied by BDTronics, this product is the ESP32-S3-WROOM-1-N16R8 module manufactured by Espressif Systems. The official Espressif documentation lists this exact ordering code with 16MB Quad SPI Flash and 8MB Octal SPI PSRAM. (Espressif Systems)
