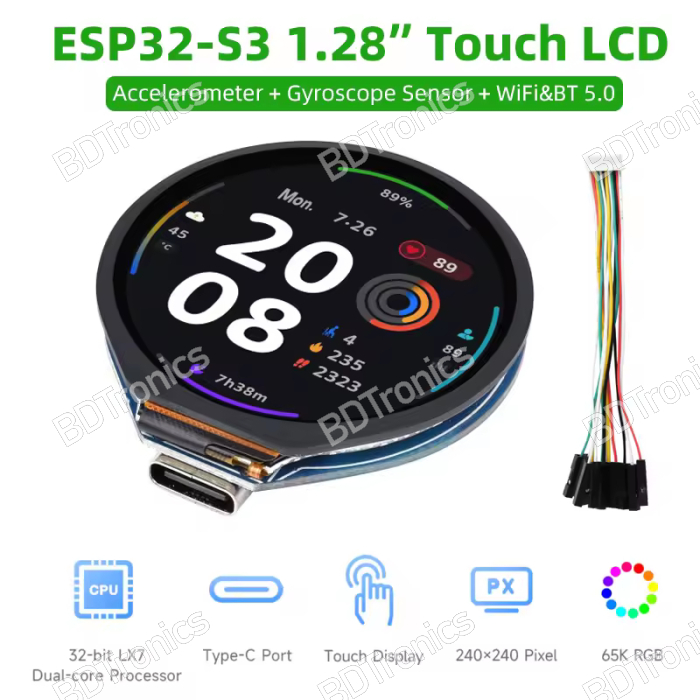

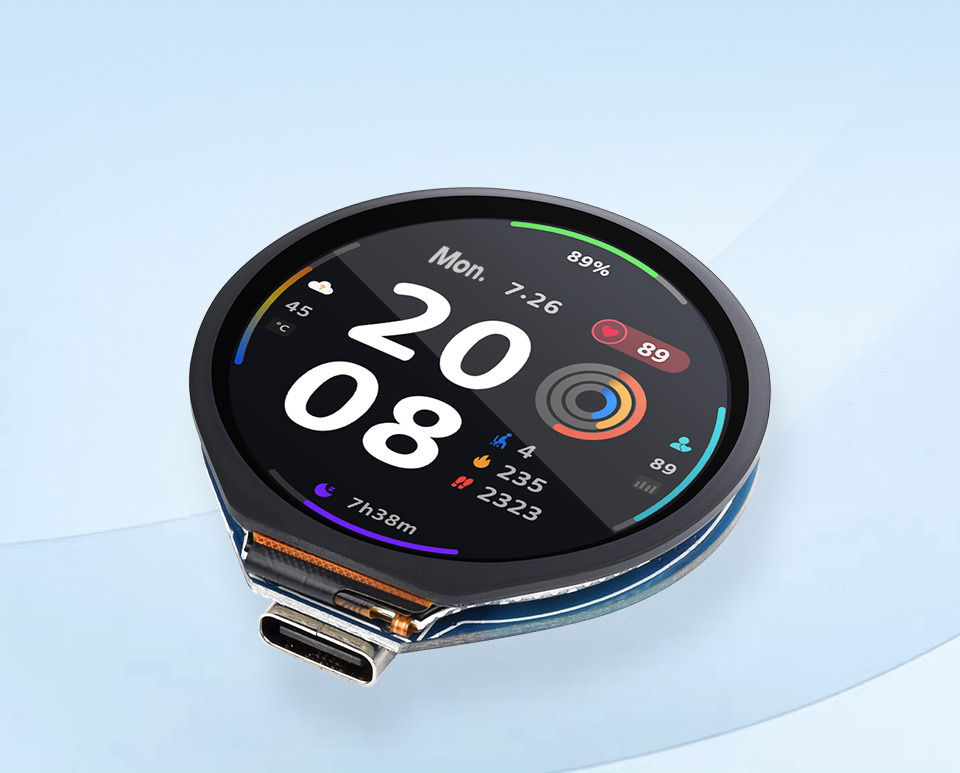

The ESP32-S3-Touch-LCD-1.28 is a compact, high-performance microcontroller board designed by Waveshare, offering advanced connectivity, display, and sensor integration in a small form factor. It features a 1.28 inch capacitive touch display, dual-core Xtensa® 32-bit LX7 processor, Wi-Fi and Bluetooth® 5 (LE), onboard QMI8658 6-axis IMU, and a Li-ion battery recharge manager, making it an ideal solution for IoT projects, wearable devices, and human-computer interaction applications. This board is built for developers who want powerful performance with low power consumption and flexible design options.

Features:

• Powered by ESP32-S3R2 SoC with dual-core Xtensa® 32-bit LX7 processor, running up to 240MHz
• Onboard 1.28 inch capacitive touch LCD with 240×240 resolution and 65K colors
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 Low Energy (LE) with onboard antenna
• Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, and 16MB NOR-Flash (W25Q128JVSIQ)
• Built-in QMI8658 6-axis IMU with accelerometer and gyroscope for gesture and motion detection
• USB Type-C connector for power, programming, and data transfer
• Li-ion battery recharge manager (ETA6096) with MX1.25 battery header for 3.7V lithium battery support
• 6 × GPIO pins accessible via SH1.0 connector for flexible expansion
• CH343P USB-to-UART chip for stable communication
• Low dropout ME6217C33M5G regulator, 800mA output with high efficiency
• Supports firmware download mode via BOOT and RESET buttons
• Small form factor, lightweight, suitable for wearable devices and smart electronics

Specifications:

• Processor: Xtensa® 32-bit LX7 dual-core, up to 240MHz
• Wireless: Wi-Fi 2.4GHz (802.11 b/g/n), Bluetooth 5 LE
• Memory: 512KB SRAM, 384KB ROM, 2MB PSRAM, 16MB NOR-Flash
• Display: 1.28 inch capacitive touch, 240×240 pixels, 65K color
• IMU Sensor: QMI8658 6-axis (3-axis accelerometer + 3-axis gyroscope)
• Battery: 3.7V Lithium, charge/discharge supported, MX1.25 header
• Power: USB Type-C, onboard regulator 3.3V 800mA output
• USB: Full-speed controller with UART bridge
• GPIO: 6 pins via SH1.0 connector
• Buttons: BOOT, RESET
• Size: Tiny, lightweight board, portable design

Packing List:

• 1 × ESP32-S3 1.28 Inch Touch LCD Board
• 1 × Cable
