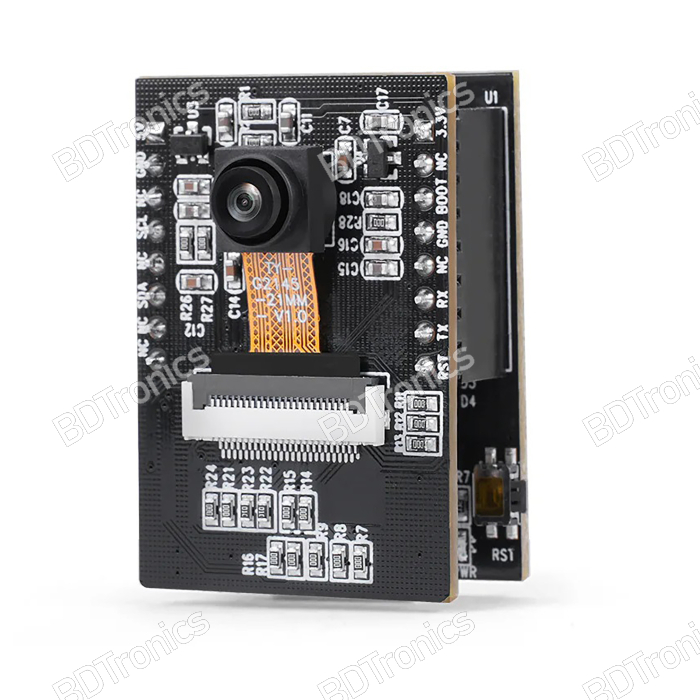

The ESP32 S3-CAM AI Vision Module is a powerful AI-enabled camera development board built around the high-performance ESP32-S3 dual-core processor. Designed for IoT, robotics, machine vision, smart automation, and embedded AI applications, this compact module supports real-time WiFi image transmission, face recognition, color recognition, and intelligent vision processing.

Powered by the ESP32-S3 chip running at up to 240MHz, the module combines integrated WiFi, Bluetooth, 8MB PSRAM, and a 2MP OV2640 camera, making it ideal for AI edge computing without requiring cloud processing for many applications. The onboard USB Type-C interface, I2C/UART communication port, reset button, programmable user button, and expansion headers make development simple for beginners and professionals alike.

Available from BDTronics, the ESP32 S3-CAM is an excellent solution for AI learning, smart surveillance, robotics, industrial automation, machine vision, smart home systems, and embedded computer vision projects in Bangladesh.

Features:

• High-performance ESP32-S3 dual-core processor

• Dual-core 32-bit Xtensa CPU

• Clock speed up to 240MHz

• Computing performance up to 600 DMIPS

• Built-in WiFi for real-time image transmission

• Bluetooth 4.2 BR/EDR and BLE support

• 2MP OV2640 camera

• Face recognition support

• Color recognition support

• AI vision processing

• Real-time wireless video streaming

• USB Type-C programming interface

• Firmware upgrade via USB Type-C

• I2C/UART communication interface

• Built-in PCB antenna

• External 8MB PSRAM

• 32Mbit SPI Flash

• Compact DIP-16 design

• User programmable button

• Reset button

• Supports AP and STA WiFi modes

• JPEG, BMP, and grayscale image output

• Compatible with Arduino IDE and ESP-IDF

• Ideal for AI and computer vision development

Specifications:

• Product Type: AI Vision Development Board

• Main Chip: ESP32-S3

• CPU: Dual-Core 32-bit Xtensa LX7

• Maximum Clock Speed: 240MHz

• Computing Performance: Up to 600 DMIPS

• Camera Resolution: 2 Megapixels

• Camera Sensor: OV2640

• Field of View: 62°

• SPI Flash: 32Mbit

• RAM: 520KB Internal + 8MB External PSRAM

• WiFi Standard: IEEE 802.11 b/g/n/e/i

• Bluetooth: Bluetooth 4.2 BR/EDR + BLE

• Image Output Formats: JPEG (OV2640), BMP, Grayscale

• USB Interface: USB Type-C

• Communication Interfaces: UART, SPI, I2C, PWM

• GPIO Pins: 9

• Antenna: Built-in PCB Antenna (2dB Gain)

• Serial Baud Rate: 115200bps (Default)

• Operating Voltage: 4.75V–5.25V DC

• Operating Temperature: -20°C to +70°C

• Storage Temperature: -40°C to +125°C

• Humidity: >90% RH

• Package Type: DIP-16

• Module Size: 27 × 40.5 × 19mm

Applications:

• AI vision projects

• Face recognition systems

• Color detection systems

• Object detection prototypes

• Smart robots

• Educational robotics

• IoT devices

• Smart home automation

• Wireless surveillance cameras

• Video monitoring systems

• AI edge computing

• Image processing

• Industrial automation

• Machine vision

• Remote monitoring

• Smart agriculture

• Security systems

• DIY electronics

• Embedded AI development

• STEM education

Benefits:

• Powerful AI processing on the edge

• Real-time wireless image transmission

• Compact size for embedded applications

• Low power consumption

• Easy programming using USB Type-C

• High-speed WiFi communication

• Excellent for AI learning and prototyping

• Supports standalone operation

• Multiple communication interfaces

• Compatible with popular ESP32 development tools

Communication Interfaces:

• USB Type-C for programming and serial communication

• I2C interface

• UART interface

• WiFi 802.11 b/g/n/e/i

• Bluetooth 4.2 BR/EDR

• Bluetooth Low Energy (BLE)

Port Description:

• USB Type-C Port: Programming, firmware upload, serial communication

• Pin Header: Connection to ESP32 S3-CAM module

• Reset Button: Restart the module

• I2C/UART Port: Communication with external microcontrollers

• User Button: Custom programmable button for application development

Camera Features:

• 2 Megapixel camera

• OV2640 image sensor

• 62° field of view

• JPEG image output

• BMP image output

• Grayscale image output

• Real-time image streaming

• Face recognition

• Color recognition

How to Use:

• Connect the module to a computer using a USB Type-C cable.

• Install the ESP32 board package in Arduino IDE or use ESP-IDF.

• Select the appropriate ESP32-S3 board.

• Upload your firmware through the USB Type-C interface.

• Configure WiFi credentials for AP or STA mode.

• Access the camera stream through a web browser.

• Connect external controllers through the I2C/UART interface if required.

• Develop AI vision applications using the camera and onboard processing capabilities.

Package Includes:

• 1 × ESP32 S3-CAM AI Vision Module

• 1 × Expansion Board

Why Buy from BDTronics?

• Genuine ESP32 development boards

• Suitable for AI, robotics, and IoT development

• Fast delivery across Bangladesh

• BDTronics supplies ESP32 boards, Arduino boards, Raspberry Pi, robotics components, AI modules, sensors, cameras, displays, development tools, and electronic components

• Trusted supplier for makers, engineers, students, and industrial developers in Bangladesh

• BDTronics offers a wide range of embedded systems, AI hardware, and IoT development products
