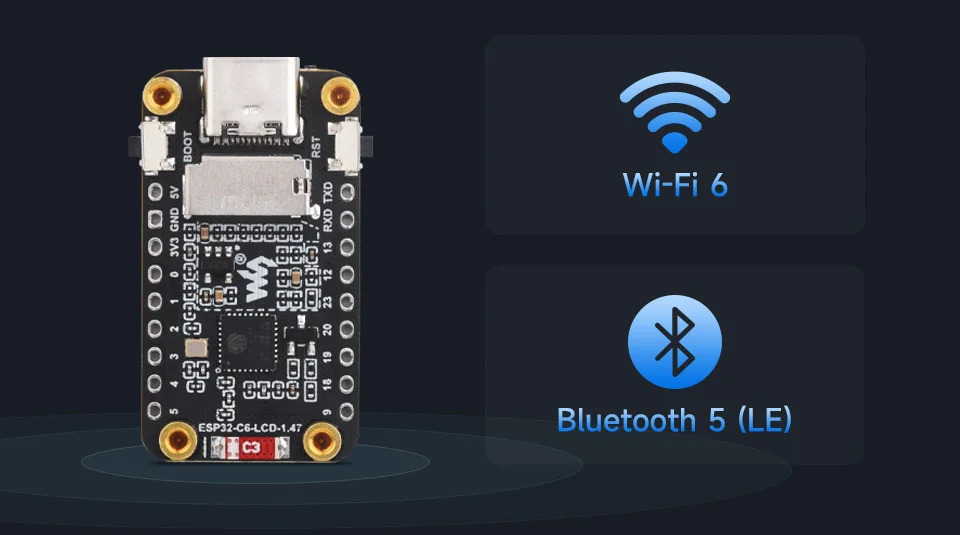

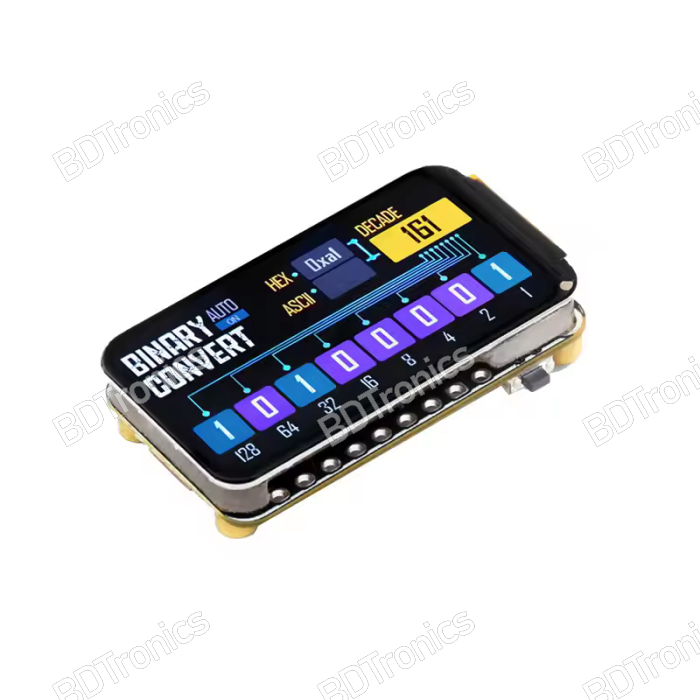

The ESP32-C6 1.47-inch LCD Screen Development Board from BDTronics is a high-performance IoT microcontroller board with Wi-Fi 6, Bluetooth 5 (BLE), and AIoT capabilities. Featuring a 1.47-inch 172×320 LCD screen with 262K colors, a 32-bit RISC-V processor running up to 160MHz, and 4MB Flash memory, this board is designed for embedded systems, HMI development, smart devices, AIoT applications, DIY electronics, robotics, and educational projects in Bangladesh.

The board supports LVGL GUI applications, real-time sensor management, and multi-peripheral expansion, making it ideal for IoT prototypes, smart home devices, wearable electronics, robotics projects, and AIoT development. BDTronics ensures stable performance, reliable connectivity, and flexible low-power operation, suitable for both hobbyists and professional developers.

Features:

• High-Performance 32-bit RISC-V Processor – Main frequency up to 160MHz, low-power core at 20MHz for energy-efficient applications

• Wi-Fi 6 & Bluetooth 5 Support – 2.4GHz Wi-Fi 6 (802.11 b/g/n/ax) and Bluetooth BLE 5 with onboard antenna for fast, reliable connectivity

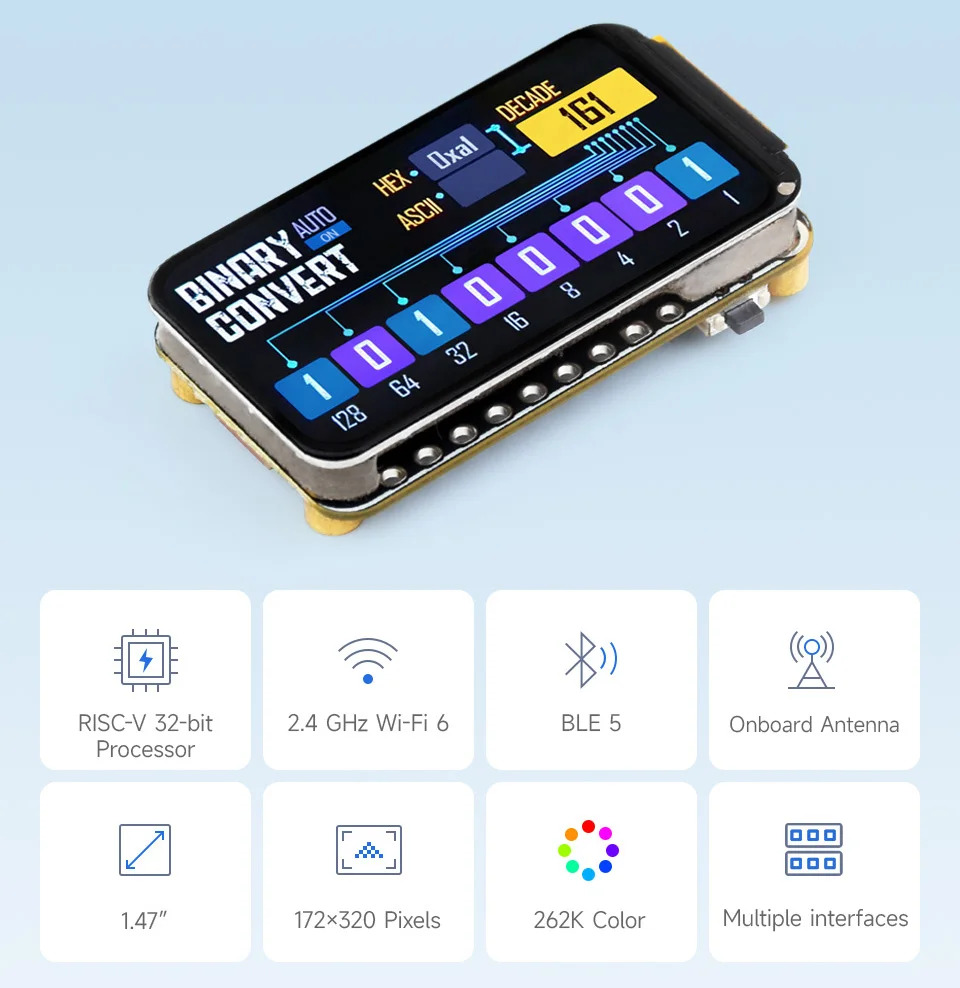

• 1.47-inch LCD Display – 172×320 resolution, 262K color, supports GUI applications such as LVGL for smooth HMI development

• Memory & Storage – 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, 4MB Flash memory, TF card slot for external storage of files, pictures, or data logging

• RGB LED with Acrylic Panel – Built-in RGB LED provides cool lighting effects for IoT and robotics visualization

• Multi-Peripheral Expansion – Supports GPIO header for sensors, actuators, motors, and other peripherals

• Full-Speed USB Interface – Convenient programming, debugging, and power supply

• Flexible Power Modes – Supports accurate clock control and multiple power modes for low energy consumption in different scenarios

Applications & Use Cases:

• AIoT & IoT Prototyping – Smart home, industrial IoT, environmental monitoring, and sensor-based projects

• Robotics & Automation – Drive motors, read sensors, and run real-time robotic algorithms

• Educational Electronics – Ideal for schools, colleges, and electronics learning kits

• Smart Devices Development – Wearable devices, smart appliances, displays, and HMI interfaces

• Data Logging & Visualization – Use onboard LCD or external TF card storage for real-time data monitoring

• DIY Electronics Projects – Perfect for hobbyists building IoT, robotics, or smart devices in Bangladesh

Installation & Usage Instructions:

• Connect sensors, actuators, or peripheral devices via GPIO headers

• Power the board with Type-C USB or suitable external supply

• Program using Arduino IDE, ESP-IDF, or compatible development environments

• Use LVGL or other GUI frameworks on the onboard LCD for visual output

• Insert TF card for external storage and data logging

• Press BOOT or RESET buttons for programming or restarting the board

• Mount securely in robotics or embedded applications to prevent damage

• Ensure stable Wi-Fi or Bluetooth connection for AIoT and IoT projects

Specifications:

• Processor: 32-bit RISC-V Main 160MHz / Low-Power 20MHz

• Flash Memory: 4MB

• SRAM: 512KB HP, 16KB LP

• ROM: 320KB

• Display: 1.47-inch, 172×320, 262K color LCD

• Connectivity: 2.4GHz Wi-Fi 6 (802.11 b/g/n/ax), Bluetooth 5 (LE)

• Onboard Features: RGB LED, TF card slot, BOOT and RESET buttons, ceramic antenna

• Interfaces: Multiple GPIO headers, full-speed USB

• Power Modes: Flexible clock and low-power options

• Applications: AIoT, IoT prototyping, robotics, HMI, smart home, wearable electronics, DIY projects
