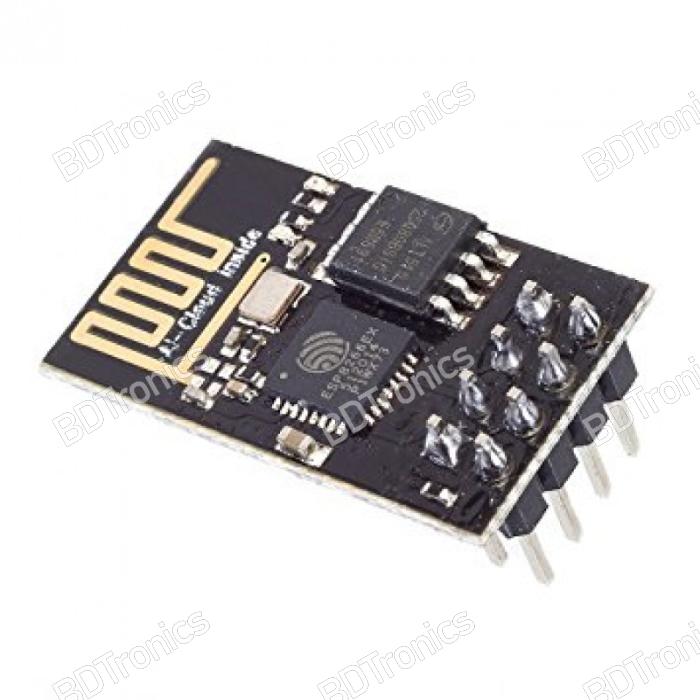

ESP-01 ESP8266 Serial WIFI Transceiver Module

ESP8266 is a highly integrated chip designed for the needs of a new connected world. It has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area. Specifications: Serial/UART baud rate: 115200 bps Input power: 3.3V I/O voltage tolerance: 3.6V Max Flash Memory Size: 1MB (8Mbit) WiFi security modes: WPA, WPA2 Tip: The CH_PD pin must be set high for it to run independently of the FTDI.

In stock

SKU PRD-00003325
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Specifications:

  • 802.11 b/g/n
  • Wi-Fi Direct (P2P), soft-AP
  • Integrated TCP/IP protocol stack
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  •  Integrated PLLs, regulators, DCXO and power management units
  • +19.5dBm output power in 802.11b mode
  •  Power down leakage current of <10uA
  • Integrated low power 32-bit CPU could be used as application processor
  • SDIO 1.1/2.0, SPI, UART
  • STBC, 1×1 MIMO, 2×1 MIMO
  • A-MPDU & A-MSDU aggregation & 0.4ms guard interval
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3)

Warning: The ESP8266 works at 3.3V! Connecting directly to 5V will burn it!

You have to use voltage drivers or logic shifters.

Interface Details:

  • SDIO 2.0, SPI, UART
  • 32-pin QFN package
  • Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
  • Integrated RISC processor, on-chip memory and external memory interfaces
  • Integrated MAC/baseband processors
  • Quality of Service management
  • I2S interface for high fidelity audio applications
  • On-chip low-dropout linear regulators for all internal supplies
  • Proprietary spurious-free clock generation architecture
  • Integrated WEP, TKIP, AES, and WAPI engines
  • 32-pin QFN package
  • Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
  • Integrated RISC processor, on-chip memory and external memory interfaces
  • Integrated MAC/baseband processors
  • Quality of Service management
  • I2S interface for high fidelity audio applications
  • On-chip low-dropout linear regulators for all internal supplies
  • Proprietary spurious-free clock generation architecture
  • Integrated WEP, TKIP, AES, and WAPI engines
  • 32-pin QFN package
  • Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
  • Integrated RISC processor, on-chip memory and external memory interfaces
  • Integrated MAC/baseband processors
  • Quality of Service management
  • I2S interface for high fidelity audio applications
  • On-chip low-dropout linear regulators for all internal supplies
  • Proprietary spurious-free clock generation architecture
  • Integrated WEP, TKIP, AES, and WAPI engines
Show More
