EMG Muscle Sensor V3.0 is a high-quality electromyography (EMG) sensor module designed to measure and analyze the electrical activity generated by muscles. This sensor detects muscle contractions and converts bioelectrical signals into analog outputs that can be processed by microcontrollers, data acquisition systems, and biomedical monitoring devices.

The module includes reusable electrode pads and a 3.5mm connection cable, making it easy to connect and use in biomedical research, prosthetics, rehabilitation systems, robotics control, human-machine interfaces, educational projects, and DIY electronics applications. With adjustable gain and signal filtering, the sensor provides clean and reliable muscle activity measurements for accurate analysis and control.

Features:

• High-quality EMG Muscle Sensor V3.0

• Measures electrical activity of muscles

• Detects muscle contractions and movement

• High signal quality for accurate readings

• Adjustable signal gain

• Built-in signal conditioning and filtering

• Analog output for microcontroller interfacing

• Includes reusable electrode pads

• Includes 3.5mm jack connection cable

• Easy integration with Arduino and other controllers

• Compact and lightweight design

• Suitable for biomedical applications

• Reliable and stable signal acquisition

• Educational and research-friendly platform

• Supports real-time muscle activity monitoring

Applications:

• Biomedical research

• Electromyography (EMG) studies

• Rehabilitation systems

• Prosthetic control systems

• Physical therapy monitoring

• Human-machine interface projects

• Robotics control using muscle signals

• Gesture recognition systems

• Wearable electronics development

• Medical education and training

• Scientific research projects

• Arduino biomedical projects

• ESP32 and Raspberry Pi projects

• DIY biofeedback systems

• Muscle training applications

How It Works:

• Electrodes are attached to the skin above the target muscle.

• The sensor detects electrical signals generated during muscle contraction.

• Built-in amplification and filtering circuits process the signal.

• The processed analog signal is output to a microcontroller or data acquisition system.

• Software can be used to analyze muscle activity levels and patterns.

Advantages:

• Non-invasive muscle activity monitoring

• High signal sensitivity

• Accurate and reliable measurements

• Adjustable amplification for different applications

• Easy connection through standard 3.5mm cable

• Reusable electrode system

• Suitable for beginners and professionals

• Compact and portable design

How to Use:

• Connect the electrode cable to the EMG sensor module.

• Attach electrodes to the desired muscle area following proper placement guidelines.

• Connect the sensor output to a compatible microcontroller or data acquisition system.

• Supply the module with the required operating voltage.

• Read and process the analog signal using software or firmware.

• Analyze muscle activity for monitoring or control applications.

Product Instructions:

• Clean skin before attaching electrodes for best signal quality.

• Place electrodes according to EMG measurement guidelines.

• Avoid excessive movement of cables during operation.

• Use in a dry environment.

• Disconnect power before changing wiring connections.

• Replace electrodes when adhesion or signal quality decreases.

• Ensure proper polarity and voltage supply before use.

Specifications:

• Product Type: EMG Muscle Sensor Module

• Version: V3.0

• Function: Electromyography Signal Detection

• Operating Voltage: ±5V

• Output Type: Analog Signal

• Audio Connector Type: 3.5mm Jack

• Connecting Cable Length: 1 Meter

• Signal Conditioning: Adjustable Gain and Filtering

• Electrode Type: Reusable Electrodes

• Length: 33.5mm

• Width: 26mm

• Height: 12mm

• Weight: 40g

• Shipment Weight: 0.043kg

• Shipment Dimensions: 11 × 8 × 3 cm

• Application: Biomedical Monitoring, Rehabilitation, Prosthetics, Research

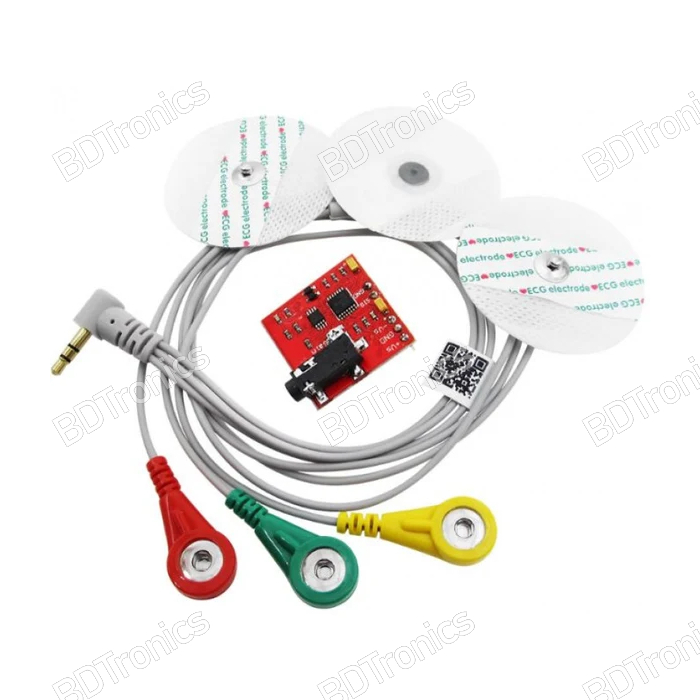

Package Includes:

• 1 x EMG Muscle Sensor V3.0 Module

• 1 x 3.5mm Connection Cable

• Reusable Electrode Set
