AD8232 ECG Measurement Sensor Module is a compact single-lead ECG and heart-rate monitoring module designed to acquire the electrical activity of the heart and provide an analog ECG signal for microcontrollers and development boards. BDTronics offers this AD8232 ECG sensor module for electronics developers, students, researchers and biomedical instrumentation projects in Bangladesh. BDTronics provides this module as a convenient solution for ECG signal acquisition, analog signal processing, pulse monitoring experiments and bioelectric signal collection.

The module uses the AD8232 integrated signal-conditioning system to amplify and filter small biopotential signals while reducing unwanted noise and motion-related interference. Its analog OUTPUT signal can be connected to an Arduino, ESP32, Raspberry Pi ADC or other suitable analog data-acquisition system for waveform visualization and experimental signal processing.

The AD8232 includes filtering and amplification functions designed specifically for ECG and other biopotential measurements. The module provides connections for right arm (RA), left arm (LA) and right leg (RL) electrodes, along with essential power, output and lead-off detection connections. An onboard LED indicator can pulsate with the detected heart signal, making it useful for basic demonstration and development projects.

Features:

• Based on AD8232 ECG signal-conditioning IC

• Single-lead ECG signal acquisition

• Analog ECG signal output

• Designed for measuring electrical cardiac signals

• Integrated signal amplification and filtering

• Double-pole high-pass filter for reducing motion artifacts and electrode half-cell potential

• Three-pole low-pass filter for reducing unwanted high-frequency noise

• Designed to extract small biopotential signals in noisy conditions

• Suitable for Arduino and other microcontroller development boards

• Compatible with suitable ADC-based data acquisition systems

• RA, LA and RL electrode connections

• SDN shutdown control connection

• LO+ and LO- lead-off detection connections

• Analog OUTPUT connection

• 3.3V power connection

• GND connection

• Onboard LED heartbeat indication

• Compact module suitable for embedded projects

• Useful for ECG waveform acquisition experiments

• Suitable for bioelectric signal collection projects

• Useful for portable ECG prototype development

Specifications:

• Product Type: AD8232 ECG Sensor Module

• Main IC: AD8232

• ECG Type: Single Lead

• Signal Output: Analog

• Power Supply: 3.3V

• Rated Temperature Range: 0°C to 70°C

• Working Temperature Range: -40°C to 85°C

• Signal Conditioning: Amplification and filtering

• High-Pass Filter: Double-pole

• Low-Pass Filter: Three-pole

• Electrode Connections: RA, LA, RL

• Lead-Off Detection: LO+, LO-

• Shutdown Pin: SDN

• Output Pin: OUTPUT

• Power Pins: 3.3V, GND

• Indicator: Heartbeat LED

• Application: ECG and biopotential signal acquisition

AD8232 ECG Signal Conditioning

The AD8232 is an integrated signal-conditioning block designed to extract and amplify small biopotential signals. ECG signals can be very small and susceptible to interference from movement, electrode placement and surrounding electrical noise. The module's filtering and amplification circuitry helps produce a more usable analog signal for subsequent processing.

• High-pass filtering helps reduce low-frequency disturbances and electrode-related offsets.

• Low-pass filtering helps reduce unwanted higher-frequency noise.

• Signal amplification makes small ECG signals easier to process with an ADC.

• Lead-off detection outputs can indicate electrode connection conditions.

• The analog output can be sampled by a suitable microcontroller ADC or external ADC.

Pin Connections:

• 3.3V: Power supply input

• GND: Ground connection

• OUTPUT: Analog ECG signal output

• LO+: Lead-off detection output

• LO-: Lead-off detection output

• SDN: Shutdown control

• RA: Right-arm electrode connection

• LA: Left-arm electrode connection

• RL: Right-leg electrode connection

How to Use:

• Connect the module to a suitable 3.3V power supply.

• Connect GND to the ground of the microcontroller or data-acquisition system.

• Connect ECG electrodes to the RA, LA and RL connections as required by the electrode arrangement.

• Connect the module's OUTPUT pin to a suitable analog input or ADC.

• Start sampling the analog signal using the connected microcontroller.

• Process and visualize the acquired waveform using appropriate software.

• Monitor LO+ and LO- signals if lead-off detection is required.

• Use the onboard LED as a basic visual indication of the detected heartbeat signal.

Arduino and Microcontroller Projects:

The AD8232 module can be integrated with development boards that provide a suitable analog input and compatible electrical interface.

Typical project setup:

• AD8232 3.3V → suitable 3.3V supply

• AD8232 GND → microcontroller GND

• AD8232 OUTPUT → analog input

• LO+ and LO- → optional digital inputs for lead-off detection

• RA / LA / RL → appropriate ECG electrode connections

The microcontroller can periodically sample the analog ECG waveform and send the data to a computer, display or wireless monitoring system for experimental visualization and signal processing.

ECG Data Acquisition Projects:

• ECG waveform visualization

• Single-lead ECG acquisition

• Heartbeat signal demonstration

• Analog ECG data logging

• Biomedical instrumentation experiments

• Microcontroller ECG projects

• ECG signal filtering experiments

• ADC signal acquisition

• Bioelectric signal processing

• Wireless ECG prototype development

• Portable ECG prototype development

Applications:

• ECG signal acquisition

• Single-lead ECG experiments

• Heart-rate monitoring projects

• Fitness and sports monitoring prototypes

• Portable ECG prototypes

• Remote monitoring prototypes

• Biomedical electronics projects

• Bioelectricity signal collection

• Medical electronics education

• Electronics laboratory experiments

• Arduino ECG projects

• ESP32 ECG projects

• Microcontroller ECG projects

• Analog signal processing experiments

• ECG waveform visualization

• Research and development prototypes

• Game peripheral and biofeedback projects

Electrode and Sensor Requirements:

• ECG electrodes and a suitable sensor cable are required for acquiring ECG signals from a person.

• Use compatible disposable or reusable ECG electrodes designed for biopotential measurement.

• Connect electrodes to the appropriate RA, LA and RL terminals.

• Ensure electrode contact is suitable before attempting signal acquisition.

• Poor electrode contact can introduce noise and unstable signals.

• Movement can also introduce artifacts into the ECG waveform.

Important Usage Information:

• This module is intended for ECG signal acquisition, electronics development and experimental applications.

• It is not, by itself, a medical diagnostic device.

• Do not use readings from a DIY or development-board ECG system for medical diagnosis or treatment decisions.

• Use an appropriate isolated and safe power/data-acquisition setup when connecting electronics to a person.

• Keep electrode cables away from sources of electrical interference where possible.

• Secure electrodes properly to reduce movement-related signal artifacts.

• Use the specified supply voltage for the module.

• Do not connect signals or power beyond the module's specified electrical limits.

• For human-connected applications, electrical safety and appropriate isolation are essential.

Temperature Specifications:

• Rated Temperature Range: 0°C to 70°C

• Working Temperature Range: -40°C to 85°C

• The specified working temperature range indicates the module's stated operating range; ECG signal quality can also depend on electrode condition, environment, wiring and electrical interference.

Package Information:

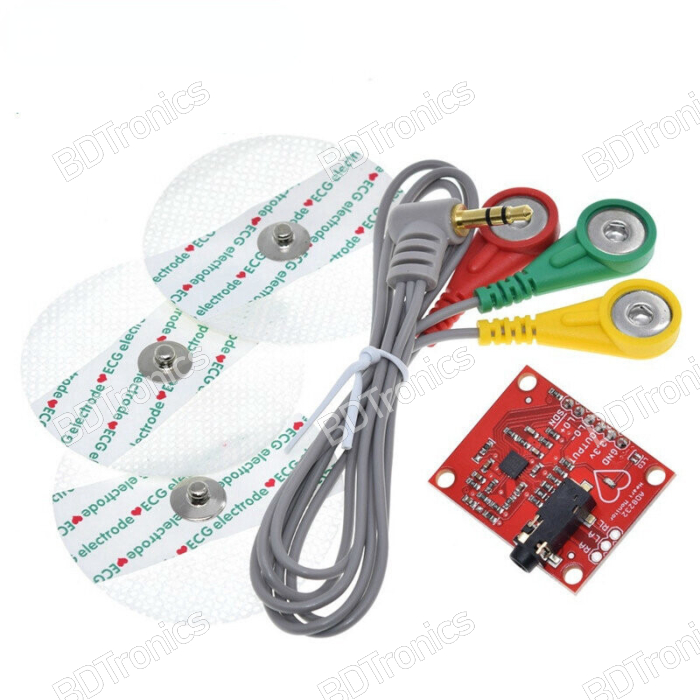

• 1 x AD8232 ECG Measurement Sensor Module

• ECG electrodes and sensor cable are required separately unless specifically included with the selected package.
