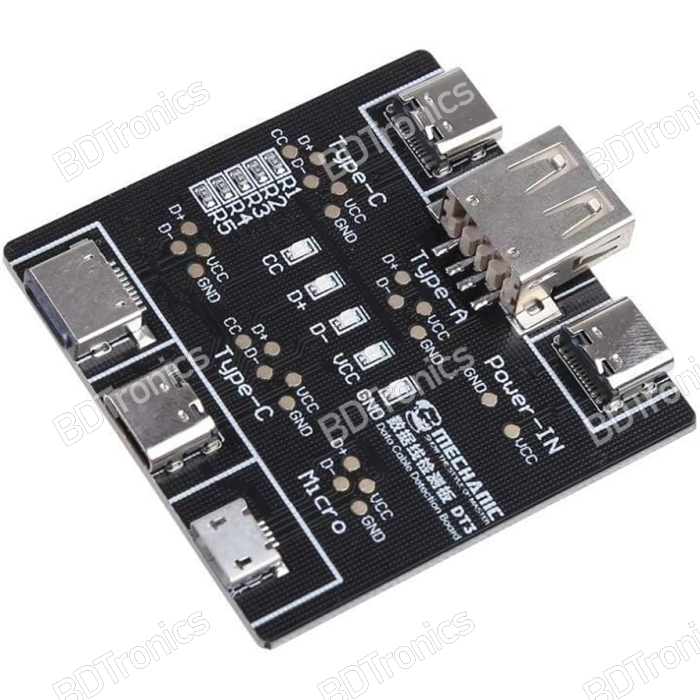

The DT3 USB Cable Tester is a compact and efficient tool designed to test various types of USB cables, including those for iOS (Lightning), Android (Micro USB), and USB Type-C. It can quickly identify issues such as short circuits, incorrect wiring, and check whether the on/off switching functionality of the cable is working as intended. This makes it a valuable tool for electronics technicians, cable manufacturers, and anyone who needs to verify the integrity of USB cables.

Features:

• Multi-Compatibility: Supports iOS (Lightning), Android (Micro USB), and USB Type-C cables, making it versatile for testing a wide range of cables.
• Short Circuit Detection: Instantly identifies short circuits in the cable, preventing potential damage to devices.
• On/Off Switching Test: Tests the on/off switching functionality to ensure proper performance.
• LED Indicators: Equipped with clear LED lights to provide immediate visual feedback on the cable's status.
• Portable Design: Lightweight and compact, making it easy to carry and use in various environments.
• Durable and Reliable: Built with high-quality materials to withstand regular use in testing and repair processes.
• User-Friendly: Plug-and-play design with simple operation, no complicated setup required.

Specifications:

• Cable Types Supported:
  • iOS (Lightning)
  • Android (Micro USB)
  • USB Type-C
• Short Circuit Detection: Quickly identifies shorts and faulty wiring.
• On/Off Switching Test: Verifies the functionality of the power switching mechanism.
• LED Display:
  • Green LED: Indicates that the cable is functional and passes the test.
  • Red LED: Indicates a problem with the cable (e.g., short circuit, damaged wiring).
• Power Supply: Powered through the USB connection (5V).
• Input Voltage: 5V, typical for USB-powered devices.
• Size: 45mm x 30mm x 10mm (compact and portable for easy handling).
• Material: Durable plastic housing and high-quality connectors for reliability.
• Weight: Lightweight for easy portability and storage.
• Operating Temperature Range: 0°C to 50°C (suitable for a wide range of environments).

Applications:

• Cable Testing: Ideal for testing the functionality of USB cables, including charging and data transfer.
• Repair and Diagnostics: Helps repair shops and technicians quickly identify faulty cables or wiring.
• Manufacturing: Ensures cables meet quality standards before shipment or sale.
• Retail: Verifies cable quality and functionality for stores selling mobile accessories.
• DIY and Hobbyists: Essential for electronics enthusiasts who work with various USB cables for personal projects.
• Mobile Device Accessories: Useful for checking the integrity of charging cables and data cables for mobile devices.
