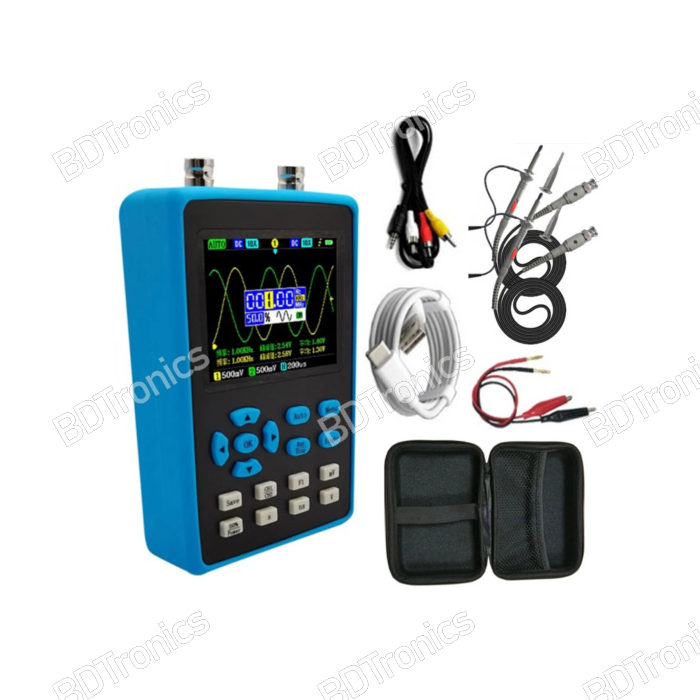

DSO2512G 120M Bandwidth Dual Channel Portable Digital Oscilloscope

In stock

This DSO2512G is a 120M bandwidth dual channel oscilloscope and frequency generator. It can generate various types of waveforms of 2.5V amplitude such sine wave, square wave, triangle wave, half wave, etc. The frequency adjustment range for the sine wave is 0~10MHz, for the ther waveforms it is 0~2MHz, and the accuracy is up to 0.1Hz. This oscilloscope has the functionality to take snap shots of the waveforms and transfer them to your computer via built-in USB interface. Also, it has video output that can be attached to a larger screen.

With these amazing features, this device can be used for applications such as single-chip debugging, car maintenance, home appliance maintenance, DIY debugging, DIY electronics and competition, repairing power supplies, frequency generator, etc.


Special Price BDT 14,960.00 Regular Price BDT 17,353.00
  •  Cash on Delivery all over BD
  •  100% Authentic Product
  •  15 Days Easy Return
  •  Safe & Secure Payment

Features:

  • This DSO2512G 120M bandwidth oscilloscope consists of dual channel input which utilizes powerful ARM and FPGA chipsets as processor.
  • It can generate various types of waveforms of 2.5V amplitude such sine wave, square wave, triangle wave, half wave, etc. The frequency adjustment range for the sine wave is 0~10MHz, for the ther waveforms it is 0~2MHz, and the accuracy is up to 0.1Hz.
  • There are 14 measurement options available: Frequency, Peak to Peak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.
  • There are 3 types of trigger mode: auto, normal and single, the automatic trigger can update the waveform in real time without triggering, the normal trigger need have a waveform trigger to update the waveform and the single trigger will sample a frame of waveform and stop automatically after the key is pressed.
  • Easily take snapshots of the waveforms and transfer them to your computer with built-in USB functionality.
  • Automatically scale the waveform, drag left/right, to find the place you are interested in to expand the observation details and analyze the cause of the problem with ease.
  • Cast the oscilloscope screen to a larger screen device with built-in video output functionality.






Technical Specifications:

  • Material: ABS
  • Channels: 2 channels
  • Coupling: AC/DC
  • Precision of V: ±2%
  • Bandwidth 120M
  • XY mode: support
  • Sampling rate: 500M
  • Screenshot: support
  • Rise time: <3ns
  • Frequency: ±0.01%
  • Storage depth: 128Kbit
  • Sin-gle: support
  • Impedance: 1MΩ
  • FFT: support
  • Time base: 5ns~10s
  • Wa-ve out amp: 2.5V
  • Ver sensitivity: 10mV/div~10V/div
  • Waves out freq: 10MHz(sin) 2MHz(other)
  • Max voltage ±40V(x1), ±400V(x10)
  • Trigger type: rise/fall
  • Display mode: YT/Roll
  • Persistence: None/1s /∞
  • Battery: 1 * lithium battery, 4000mAh (included)
  • Package size: 210 * 140 * 115mm / 8.3 * 5.5 * 4.5in
  • Package weight: 689g / 1.5lb

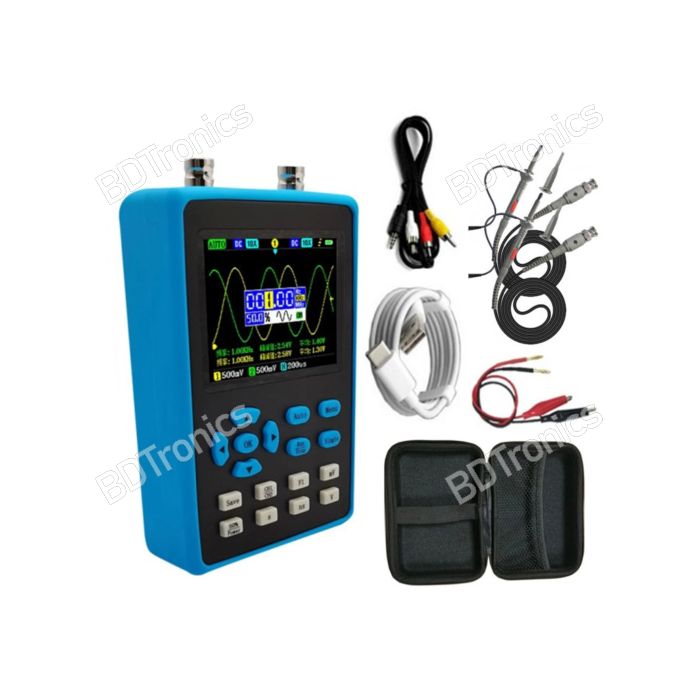

Package Includes:

  • 1 x Oscilloscope
  • 2 x Probes
  • 1 x Video Cable
  • 1 x USB Cable
  • 1 x Storage Bag
  • 1 x User Manual
