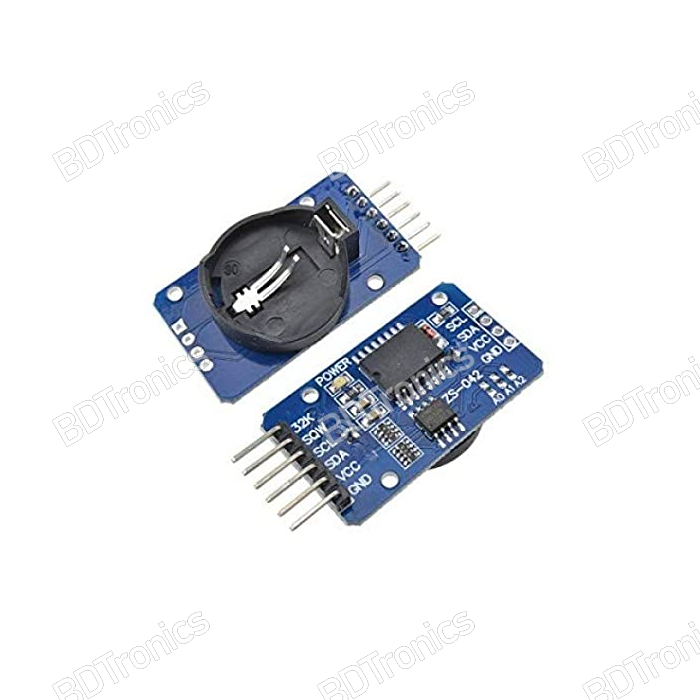

DS3231 RTC High Precision Real-Time Clock Module with AT24C32 EEPROM

The DS3231 RTC High Precision Real-Time Clock Module is a low-cost, extremely accurate I2C real-time clock (RTC), it is more accurate than the ds1307 as this module is integrated with temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input, and maintains accurate timekeeping when main power to the device is interrupted.

In stock

SKU PRD-00002729
Category: Modules
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Specification:

  • Size: 38mm (length) * 22mm (W) * 14mm (height)
  • Weight: 8g
  • Operating voltage :3.3 - 5.5 V
  • Clock chip: high-precision clock chip DS3231
  • Clock Accuracy :0-40 ° range, the accuracy 2ppm, the error was about 1 minute
  • Calendar alarm clock with two
  • Programmable square-wave output
  • Real time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation
  • Chip temperature sensor comes with an accuracy of ± 3 °
  • Memory chips: AT24C32 (storage capacity 32K)
  • IIC bus interface, the maximum transmission speed of 400KHz (working voltage of 5V)
  • can be cascaded with other IIC device, 24C32 addresses can be shorted A0/A1/A2 modify default address is 0x57
  • With rechargeable battery LIR2032, to ensure the system after power failure, the clock move any natural normal
  • Packing: single anti-static packaging
