DM556 DSP 5.6A High Current Digital Stepper Motor Driver 2 Phase for NEMA 23 NEMA 34
In stock
Order before 12.00PM
DM556 professional quality stepper motor driver for CNC machines/ With DSP control algorithium, it allows your mahine to run and operate precisly. Suitable for both Nema 23 and Nema 34 stepper motors.
Specifications:
- Input Voltage: 18V-48VDC, typically DC36V
- Output Current: 1A ~ 5.6A, can be configured with 8 different settings
- Driving Mode: Double constant current PWM
- Insulation Resistance: Normal pressure and temperature > 500MOhm
- Insulation Strength: Normal pressure and temperauter 500V/min
- Weight: About 270g
Operating Condition:
- Coolding Method: Natural/ Air Cooling
- Avoid dust, Oil mist and corrosive gasses
- Operating Tempearture: 0 ~ ±50°C
- Ambient Humidity: <80% RH, No condensation, No Frost
- Vibration: Maximum not more than 5.7m/s^2
Current Settings:
| Output Peak Current | SW1 | SW2 | SW3 |
| 1.4A | On | On | On |
| 2.1A | Off | On | On |
| 2.7A | On | Off | On |
| 3.2A | Off | Off | On |
| 3.8A | On | On | Off |
| 4.3A | Off | On | Off |
| 4.9A | On | Off | Off |
| 5.6A | Off | Off | Off |
Subdivisiion/ Microstep Settings:
| Steps/Rev | SW5 | SW6 | SW7 | SW8 |
| 400 | Off | On | On | On |
| 600 | On | Off | On | On |
| 1600 | Off | Off | On | On |
| 3200 | On | On | Off | On |
| 6400 | Off | On | Off | On |
| 12800 | On | Off | Off | On |
| 25600 | Off | Off | Off | On |
| 1000 | On | On | On | Off |
| 2000 | Off | On | On | Off |
| 4000 | On | Off | On | Off |
| 5000 | Off | Off | On | Off |
| 8000 | On | On | Off | Off |
| 10000 | Off | On | Off | Off |
| 20000 | On | Off | Off | Off |
| 25000 | Off | Off | Off | Off |

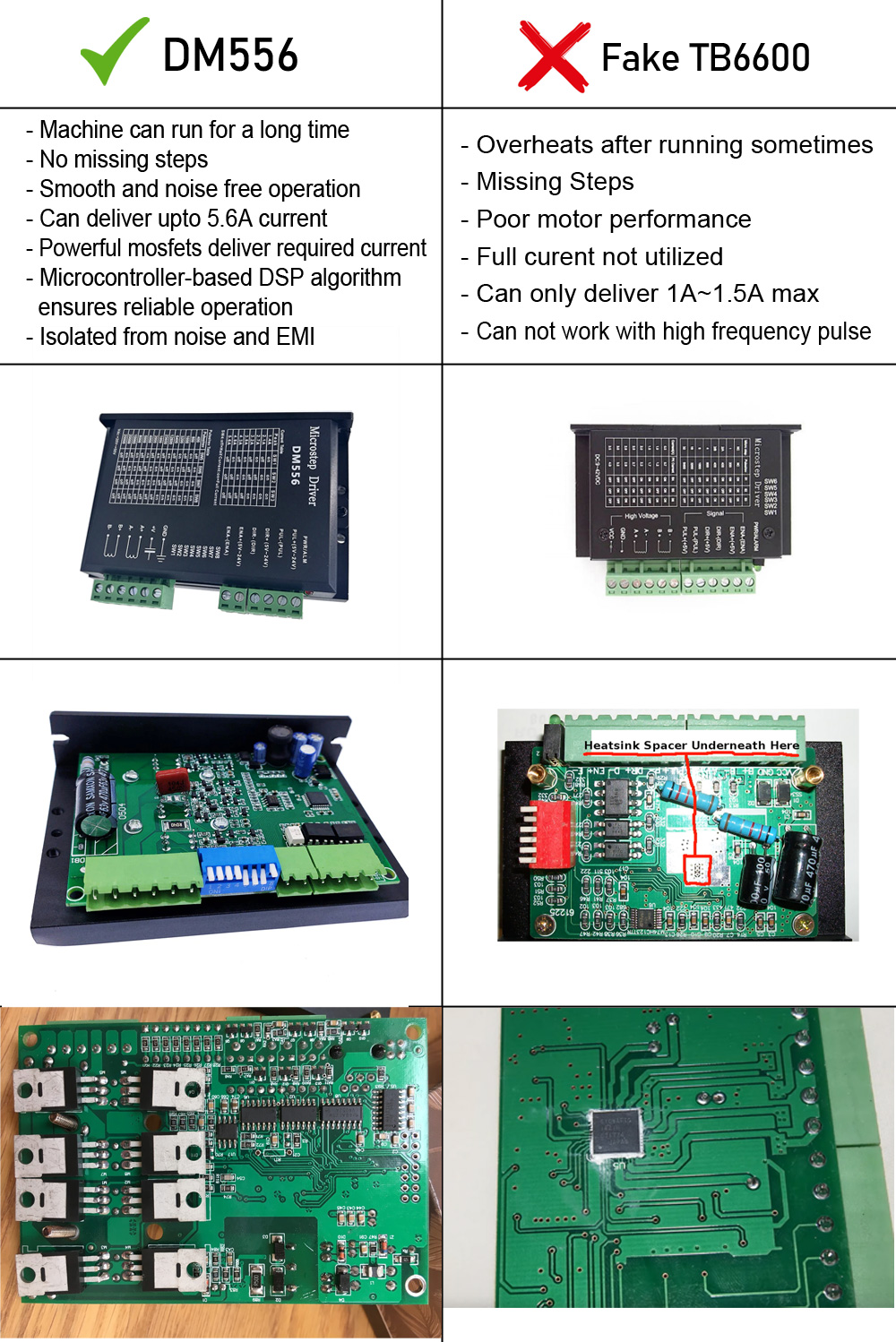

Comparison with other fake products:
Beware, don't buy fake/ counterfriet drivers in the market. It will cause you so much issues such as missing steps, inaccurate engraving or cutting, unrelieable machine operation, unexpected machine shutdown due to EMI.
