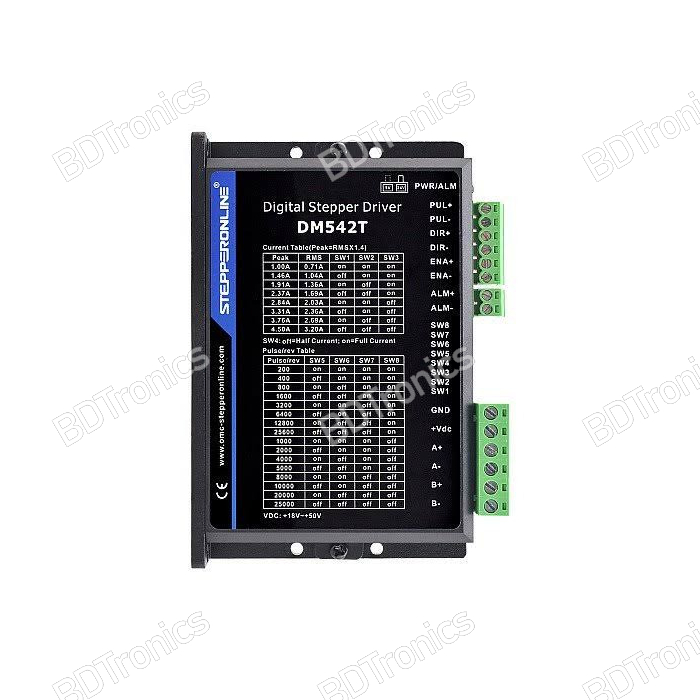

The Original DM542 Digital Stepper Motor Driver is a fully digital stepper motor controller designed for precise and smooth control of compatible 2-phase and 4-phase stepper motors. BDTronics offers this DM542T stepper driver for NEMA 17, NEMA 23, NEMA 24 and other compatible stepper motor applications requiring adjustable current, high microstep resolution, low vibration, and reliable motion control.

Developed using an advanced DSP-based control algorithm, the DM542T provides smoother motor movement, reduced operating noise, lower motor heating, and improved torque characteristics compared with conventional analog stepper drivers. Its motor auto-identification and parameter auto-configuration functions help optimize the driver automatically for connected motors.

The driver supports 18–50V DC input, up to 4.5A peak output current, pulse input frequencies up to 200kHz, and up to 25,600 selectable microsteps per revolution depending on the selected configuration.

Features:

• Original DM542T digital stepper motor driver (StepperOnline UK)

• Designed for compatible NEMA 17, NEMA 23 and NEMA 24 stepper motors

• Supports 2-phase and 4-phase stepper motors

• Wide 18–50V DC input voltage range

• Adjustable output peak current from 1.0A to 4.5A

• Maximum output current: 4.5A peak / 3.2A RMS

• Advanced DSP-based digital control

• Anti-resonance technology for smoother movement and improved torque

• Helps reduce mid-range instability

• Motor auto-identification when powered on

• Automatic parameter configuration for connected motors

• Multi-Stepping function for smoother motor movement

• Pulse input frequency up to 200kHz

• TTL-compatible, optically isolated pulse input

• Supports PUL/DIR control mode

• Automatic idle-current reduction

• Over-voltage protection

• Over-current protection

• Soft-start operation helps prevent sudden motor movement when powering on

• Selectable 5V/24V logic voltage, with 24V default setting

• 16 selectable microstep resolutions

• 8 selectable peak-current settings

• Natural or forced cooling

• Suitable for CNC machines, 3D printers, robotics, automation, and motion-control systems

Current Settings:

The DM542T provides eight selectable peak-current levels:

The motor current should be configured according to the connected stepper motor's rated phase current. Avoid setting the driver current higher than the motor's permissible operating current.

Microstep Settings:

The DM542T supports 16 selectable microstep resolutions:

*Values represent driver input pulse counts for one full motor revolution when using a typical 1.8° stepper motor and the corresponding microstep configuration.

Specifications:

Motor Auto-Identification and Auto-Configuration:

The DM542T includes motor auto-identification and parameter auto-configuration functionality. When the driver is powered on, it can identify characteristics of the connected motor and configure operating parameters to provide an appropriate response.

This feature helps simplify setup when using different compatible stepper motors and can contribute to smoother operation without requiring extensive manual parameter adjustment.

Anti-Resonance and Smooth Motion:

The digital DSP control system uses anti-resonance technology to address vibration and instability that can occur during stepper motor operation. This helps maintain smoother motor movement and better torque characteristics, particularly across operating speed ranges where conventional stepper systems can experience resonance.

The Multi-Stepping function can also convert a lower-resolution step input into higher-resolution internal microstep movement, helping produce smoother mechanical motion.

Control Interface:

The DM542T can be controlled using a motion controller, CNC controller, PLC, Arduino-compatible controller, or other suitable pulse-generating system.

The primary control signals use PUL/DIR operation:

• PUL: Step/pulse input controls motor movement

• DIR: Direction input determines rotation direction

• ENA: Enable control where supported by the driver configuration

The pulse input is specified for frequencies up to 200kHz and uses an optically isolated TTL-compatible input interface.

Applications:

• CNC routers

• CNC milling machines

• 3D printers

• Laser engraving machines

• Automated machinery

• Industrial motion control

• Robotics

• Linear actuator systems

• XY and XYZ positioning systems

• Camera sliders

• Automated cutting equipment

• Pick-and-place machines

• NEMA 17 motor control

• NEMA 23 motor control

• NEMA 24 motor control

• DIY CNC projects

• Arduino motion-control projects

• PLC-based stepper motor systems

Operating Environment:

Installation and Usage Notes:

Use a regulated DC power supply within the specified 18–50V DC range. A typical operating voltage is 36V DC.

Set the driver's output current according to the connected stepper motor's rated phase current. Correct current configuration is important for achieving appropriate torque while controlling motor and driver heating.

Provide adequate ventilation around the driver. Natural cooling may be sufficient under moderate load, while forced cooling may be appropriate for higher-current or demanding applications.

Keep the driver away from excessive dust, oil mist, moisture, corrosive gases, and other contaminants. Ensure signal wiring and motor wiring are installed appropriately to reduce electrical interference in motion-control systems.

Package Includes:

• 1 × Original DM542T Digital Stepper Motor Driver
