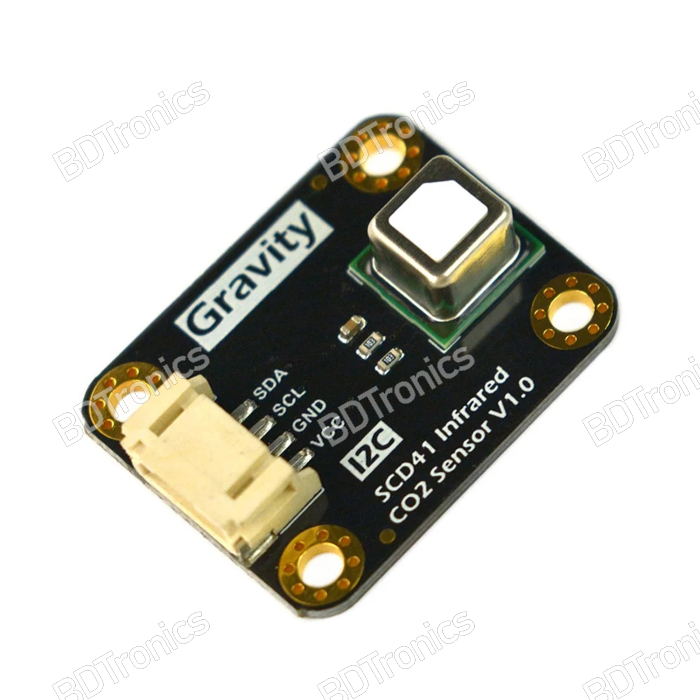

The DFRobot Gravity SCD41 Infrared CO₂ Sensor SEN0536 is a compact, low-power environmental sensing module designed for accurate carbon dioxide concentration monitoring. Available at BDTronics, this sensor uses Sensirion's SCD41 photoacoustic NDIR technology with patented PAsens® and CMOSens® technologies to measure CO₂ concentrations from 400 to 5000 ppm.

Featuring integrated temperature and humidity sensing, the DFRobot Gravity SCD41 provides three environmental measurements in one compact module. Its built-in temperature and humidity sensors also support on-chip signal compensation, making it suitable for indoor air quality monitoring, smart ventilation, greenhouse automation, and IoT-based environmental sensing projects.

Features:

• CO₂ Measurement Range: 400–5000 ppm.

• Photoacoustic NDIR Technology: Uses Sensirion's SCD41 sensing technology to determine CO₂ concentration through infrared absorption and acoustic pressure-wave measurement.

• Three-in-One Environmental Sensing: Measures CO₂ concentration, temperature, and relative humidity.

• Integrated Temperature and Humidity Sensors: Provides environmental data and supports on-chip signal compensation.

• Compact Design: Module dimensions of approximately 32 × 27 × 8 mm.

• Low Power Consumption: Average current consumption below 4 mA, according to the manufacturer's specifications.

• I2C Communication: Supports integration with compatible microcontrollers and embedded platforms.

• Gravity Interface: Convenient sensor connection using the included Gravity 4-pin cable.

• IoT Project Integration: Suitable for microcontroller-based data acquisition and environmental monitoring systems.

• Compact Sensor Module: Ideal for space-constrained embedded electronics and smart monitoring devices.

Specifications:

• Brand: DFRobot

• Product Series: Gravity

• Model: SCD41 (SEN0536)

• Product Type: Photoacoustic NDIR CO₂ Sensor

• CO₂ Measurement Range: 400–5000 ppm

• Sensing Technology: Photoacoustic NDIR

• Sensor Manufacturer: Sensirion

• Additional Measurements: Temperature and relative humidity

• Communication Interface: I2C

• Average Current Consumption: Less than 4 mA

• Module Dimensions: Approximately 32 × 27 × 8 mm

• Connector: Gravity 4-pin interface

• Operating Applications: Indoor air quality, greenhouse monitoring, and smart ventilation

Applications:

• Indoor CO₂ concentration monitoring

• Indoor air quality measurement

• Smart home environmental monitoring

• Greenhouse climate monitoring

• Smart ventilation and HVAC systems

• IoT-based environmental data acquisition

• ESP32 and Arduino sensor projects

• Embedded monitoring equipment

• Building automation systems

• Environmental data logging and analysis

How It Works

The SCD41 uses photoacoustic sensing technology to measure CO₂ concentration. When an infrared emitter pulses inside the sensor's measurement chamber, CO₂ molecules absorb infrared energy and generate pressure waves. An internal microphone detects these acoustic signals, allowing the sensor to calculate CO₂ concentration.

Integrated temperature and humidity sensing provides additional environmental measurements and supports signal compensation. This combination makes the module useful for projects that require continuous environmental data collection using a compact sensor.

Compatibility and Integration

The DFRobot Gravity SCD41 can be integrated into compatible embedded systems using its I2C communication interface. It is suitable for development with platforms such as ESP32 and Arduino, subject to compatible voltage levels, wiring, libraries, and software configuration.

For projects involving remote monitoring, sensor readings can be processed by a microcontroller and transmitted to a dashboard or IoT platform over a supported network connection.

Package Includes:

• 1 × DFRobot Gravity SCD41 Infrared CO₂ Sensor

• 1 × Gravity 4-pin I2C/UART Sensor Cable

Useful Link:

DFRobot official documentation: https://wiki.dfrobot.com/SKU_SEN0536_Gravity_SCD41_Infrared_CO2_Sensor

BDTronics supplies the DFRobot Gravity SCD41 CO₂ Sensor for electronics development, embedded systems, indoor air quality monitoring, and IoT environmental sensing projects in Bangladesh.
