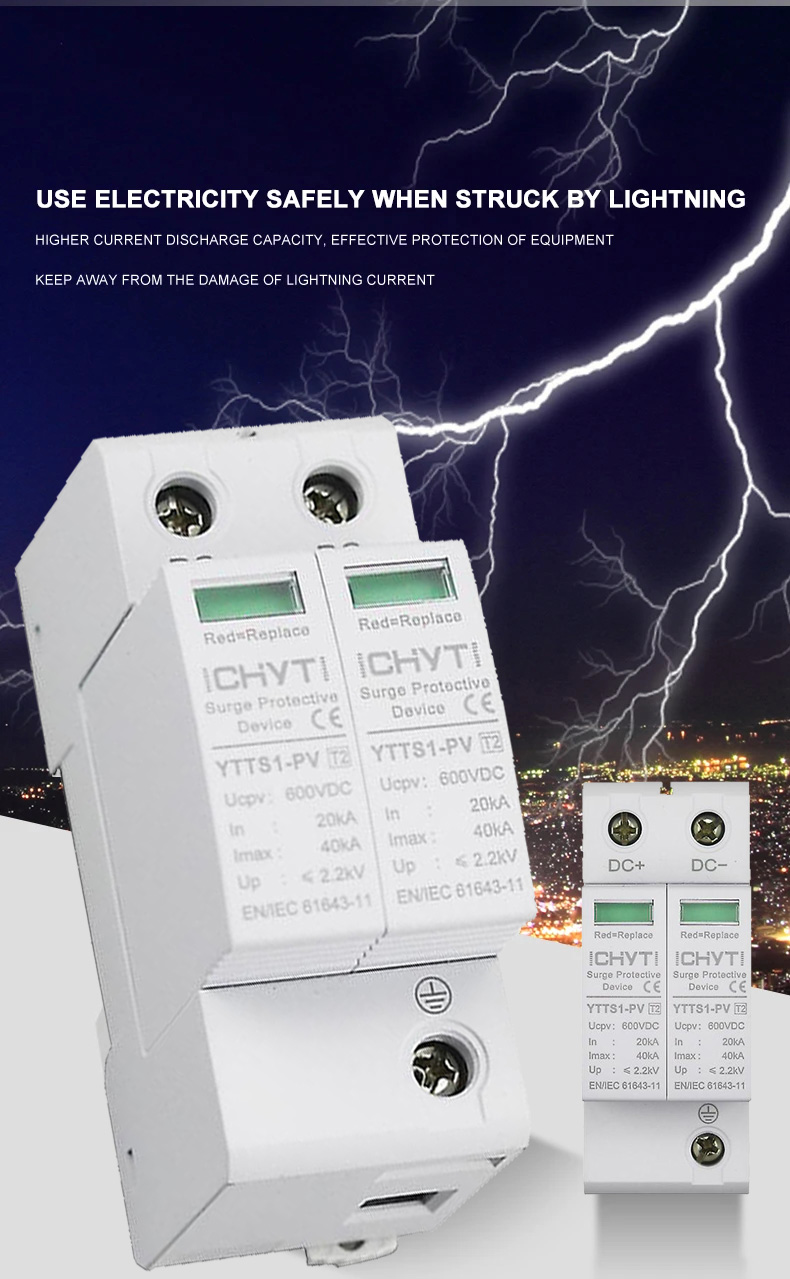

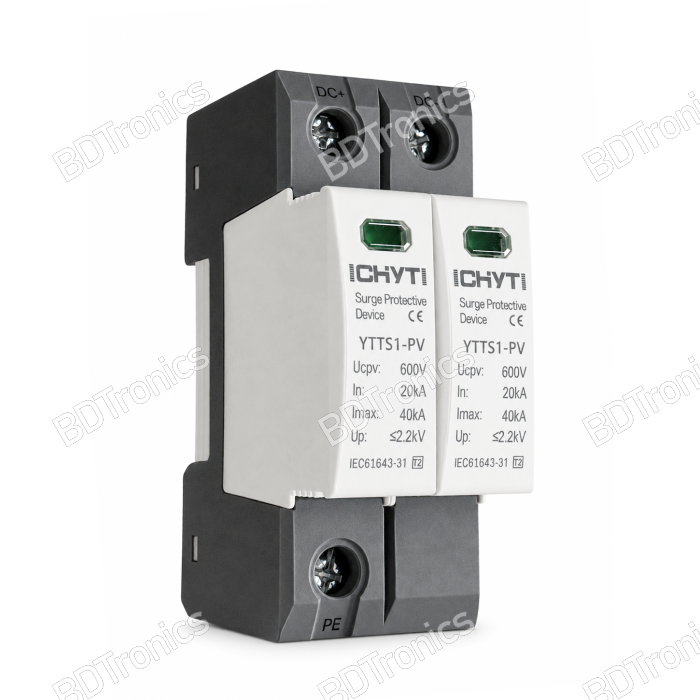

DC Surge Protection Device SPD for Solar Panel PV YTTS1-PV T2

Solar Panel (PV) DC surge protection device. Discharge current: 20~40KA, 30~60KA. Working voltage DC 500V. 2P/ 2 Poles.

In stock

SKU PRD-00004452
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

The DC Surge Protctor (DC SPD) mainly used for DC distribtion, such as solar generate system, wind power system, automotive power supply systems, etc. It protects when lightning damages the line. Its has an instruction window that can indicate whether the line has been struck by lightning. If the red indicator indicates that the line has been struck by lightning, please replace the protector or module in time.








Specifications:

  • Product Model

    YTTS1-PV

    Pole

    2P

    3P

    Rated Frequency

    One port

    SPD Category

    Combined type

    Test Category

    Class II test

    Colour

    Green

    White

    Green

    White

    Maximum Continuous Operating Voltage Uc

    600VDC

    1000VDC

    1000VDC

    1500VDC

    Voltage Protection Level Up(8/20μs)

    ≤2.2kV

    ≤3.2kV

    Nominal Discharge Current ln(8/20μs)

    20kA

    20kA

    Maximum Discharge Current lmax(8/20μs)

    40kA

    40kA

    Response Time tA

    ≤25ns

    Size

    36x90x66

    54x90x66

    Failure Indication

    Green: Normal Red: Failure

    Sectional Area Of Wires

    6~25mm2

    Installation Method

    35mm standard rail

    Working Environment Temperature

    -40℃ ~+85℃

    Sheathing Material

    Plastic

    Protection Level

    IP20

    Executive Standard

    IEC 61643-31





Package Includes:

  • 1 x DC Surge Protection Device
Show More

General Questions

  • What is the price of the DC Surge Protection Device SPD for Solar Panel PV YTTS1-PV T2 in Bangladesh?

    The latest price of DC Surge Protection Device SPD for Solar Panel PV YTTS1-PV T2 in Bangladesh is BDT 2,000.00 . You can buy the DC Surge Protection Device SPD for Solar Panel PV YTTS1-PV T2 at the best price on BDTronics.com or contact us via phone.

  • Where to buy DC Surge Protection Device SPD for Solar Panel PV YTTS1-PV T2 in Bangladesh?

    You can buy DC Surge Protection Device SPD for Solar Panel PV YTTS1-PV T2 online by ordering on our website or directly collect by visiting our store in person. We provide home delivery service all over BD with cash on delivery and online payment method. It usually takes 1-2 days to deliver inside Dhaka and 2-3 days outside Dhaka.
