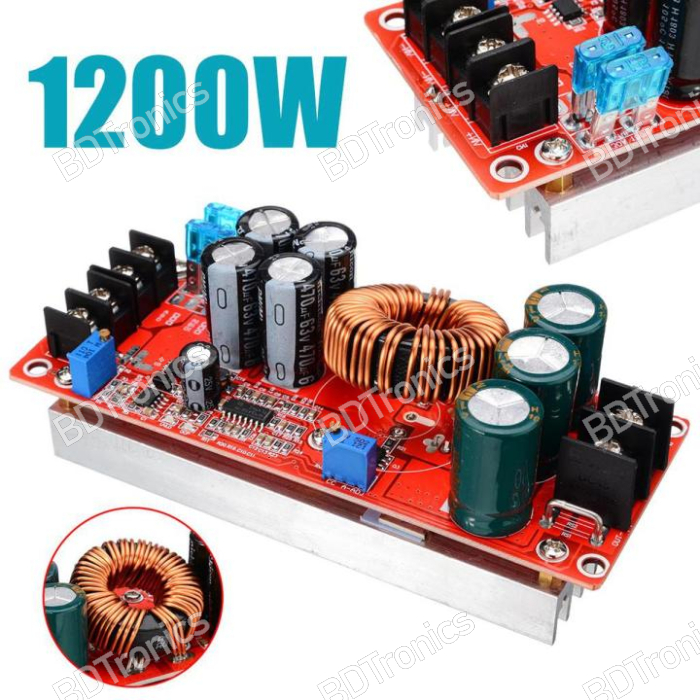

1200W 20A DC Converter Boost Power Supply Module is a high-power adjustable DC-DC step-up converter designed to increase low DC input voltage into a higher adjustable output voltage. This powerful boost converter supports a wide input range of 8V to 60V DC and provides continuously adjustable output voltage from 12V to 83V with constant voltage and constant current control functions.

This high-performance DC boost power supply module is suitable for battery systems, electric vehicles, solar power applications, LED drivers, industrial equipment, laboratory power supplies, and DIY electronics projects. The module features over-current protection, short circuit protection, high conversion efficiency, large current copper wire connection, and durable construction for reliable long-term operation.

Features:

• High power DC-DC boost converter module

• Wide input voltage range: 8V to 60V DC

• Adjustable output voltage range: 12V to 83V DC

• Adjustable constant current range: 0.3A to 20A

• Maximum input current: 20A

• High efficiency conversion up to 95%

• Constant voltage (CV) and constant current (CC) regulation support

• Built-in over-current protection function

• Built-in short circuit protection

• Low standby current consumption

• Large current pure copper wire output connection

• Durable and high-quality electronic components

• Suitable for high-power voltage boosting applications

• Compact design with strong power handling capability

• Long service life and stable performance

• Easy installation with mounting columns

• Suitable for professional and DIY power projects

How It Works:

• Connect the DC power source to the input terminals of the module.

• Adjust the output voltage and current according to the required application.

• The converter boosts the input voltage to the selected higher output voltage.

• Constant voltage mode maintains the set output voltage.

• Constant current mode limits output current to protect the load.

• Connect the output device after confirming the correct voltage settings.

Applications:

• Electric vehicle power systems

• Battery charging systems

• Solar energy power conversion

• High-power LED lighting systems

• DC motor power supply

• Industrial automation equipment

• Laboratory adjustable power supply

• Battery pack charging applications

• Audio amplifier power supply

• Robotics power systems

• Communication equipment power supply

• DIY electronics projects

• High voltage DC power conversion

Usage Instructions:

• Ensure the input voltage is within the 8V-60V DC range.

• The input power supply voltage should be greater than 10V when using this module.

• Adjust output voltage before connecting sensitive devices.

• For power supply applications, connect the input source first and allow the module to start working before connecting the load.

• Use proper cooling when operating at high power levels.

• Use thick wiring due to high current requirements.

• Avoid direct short-circuit output while adjusting constant current settings.

• The boost converter cannot reduce voltage below the input voltage.

Product Instructions:

• The module requires proper ventilation for high-power operation.

• Output power depends on input voltage and current conditions.

• Use suitable external protection according to the application requirements.

• Check polarity carefully before powering the module.

• Use the welded copper wire connection for high-current applications.

• Avoid exceeding the maximum input current and output power ratings.

Specifications:

• Product Type: DC-DC Boost Converter Module

• Module Type: Electronic Power Supply Module

• Input Voltage: DC 8V-60V

• Output Voltage: DC 12V-83V Adjustable

• Maximum Input Current: 20A

• Constant Current Range: 0.3A-20A Adjustable

• Output Power: Input Voltage × 10A

• Maximum Power: Up to 1200W (depending on cooling and conditions)

• Quiescent Current: 15mA

• Conversion Efficiency: Up to 95%

• Operating Frequency: 150KHz

• Operating Temperature: -40°C to +85°C

• Protection: Over Current Protection, Short Circuit Protection

• Installation Method: 4 x 3mm Mounting Columns

• Connection Type: Welded Pure Copper Wire

• Module Size: Approximately 130 x 52 x 46mm

• Adjustment Type: Adjustable Voltage and Current

• Cooling Requirement: Recommended for high-power operation

Package Includes:

• 1 x 1200W DC-DC Boost Converter Power Supply Module
