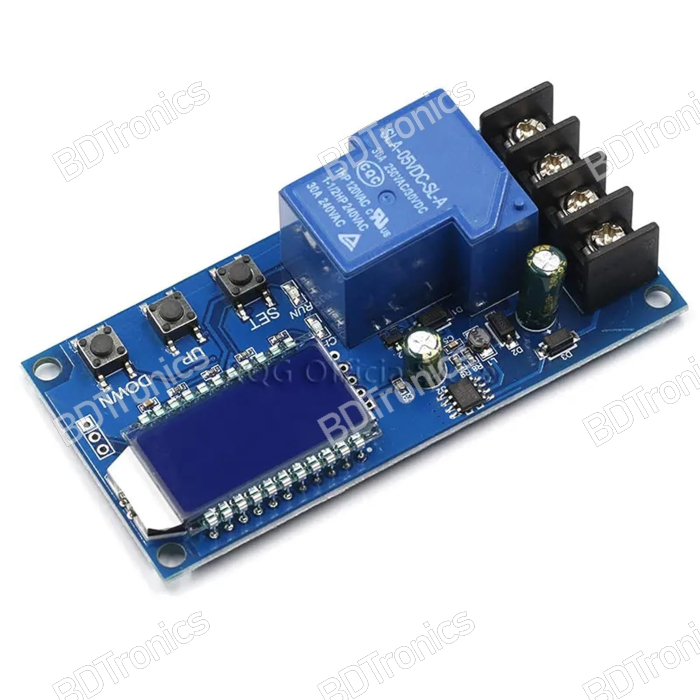

DC 6-60V 30A Battery Charging Control Module XY-L30A is an intelligent battery charging controller designed for automatic charging management, voltage monitoring, battery protection, and timer-controlled charging applications. Featuring a large LCD display, adjustable voltage control, charge timing functions, and relay-based output control, this module is ideal for lead-acid batteries, lithium batteries, solar power systems, backup power systems, and DIY battery charging projects.

The XY-L30A charging controller automatically starts and stops charging according to user-defined voltage thresholds, helping prevent overcharging and excessive battery discharge. The integrated LCD screen displays battery voltage, battery percentage, and charging time simultaneously for convenient monitoring.

Features:

• Intelligent battery charging control module

• Supports automatic charging and stopping

• Wide operating voltage range from 6V to 60V DC

• High current support up to 30A

• Large LCD display for real-time monitoring

• Displays voltage, battery percentage, and charging time

• Adjustable charging start voltage setting

• Adjustable charging stop voltage setting

• Built-in charge timer control function

• Relay-based output switching

• High voltage control accuracy

• Supports serial communication and parameter setting

• Suitable for lead-acid and lithium batteries

• Easy parameter configuration

• Compact and reliable design

Applications:

• Lead-acid battery charging systems

• Lithium battery charging control

• Solar battery charging systems

• Battery backup systems

• UPS battery charging

• Energy storage systems

• DIY charger projects

• Automotive battery charging

• Industrial battery management

• Power supply automation

• Battery maintenance systems

• Renewable energy projects

• Off-grid power systems

• Workshop charging stations

Automatic Charging Control Function:

• User sets charging start voltage (dn).

• User sets charging stop voltage (UP).

• When battery voltage drops below the lower voltage limit, charging automatically starts.

• When battery voltage reaches the upper voltage limit, charging automatically stops.

• Prevents battery overcharging and excessive charging cycles.

• Improves battery lifespan and charging efficiency.

Charge Time Control Function:

• Adjustable charging duration control

• Supports automatic charging timeout protection

• Maximum programmable timer up to 99 hours 59 minutes

• Charging automatically stops after the configured time period

• Error warning displayed if charging parameters are not properly configured

• Suitable for unattended charging applications

LCD Display Functions:

• Real-time battery voltage display

• Battery percentage indicator

• Charging time display

• Charging status monitoring

• Parameter configuration display

• Error indication and status alerts

How to Use:

• Connect the battery and charger according to the wiring diagram.

• Power the module with a compatible DC supply.

• Configure charging start voltage (dn).

• Configure charging stop voltage (UP).

• Set charging time if timer control is required.

• Monitor charging status through the LCD display.

• The module automatically manages charging based on the configured settings.

Product Instructions:

• Verify battery voltage compatibility before use.

• Ensure correct polarity during wiring.

• Use appropriate wire size for high-current applications.

• Install proper ventilation when operating at high current.

• Avoid exceeding the rated current capacity.

• Use suitable fuses for additional protection.

• Check all settings before connecting batteries.

Specifications:

• Product Type: Battery Charging Control Module

• Model: XY-L30A

• Control Voltage: DC 6V-60V

• Maximum Control Current: 30A

• Output Type: Direct Output Relay Control

• Voltage Control Accuracy: 0.1V

• Voltage Error: ±0.1V

• Display Type: LCD Screen

• Supported Batteries: Lead-Acid Battery, Lithium Battery

• Charging Start Voltage: Adjustable

• Charging Stop Voltage: Adjustable

• Time Control Function: Supported

• Maximum Timer Range: 99 Hours 59 Minutes

• Communication Function: Serial Data Upload and Parameter Setting

• Application: Battery Charging and Protection Control

• Mounting Type: PCB Module

Package Includes:

• 1 x XY-L30A Battery Charging Control Module with LCD Display
