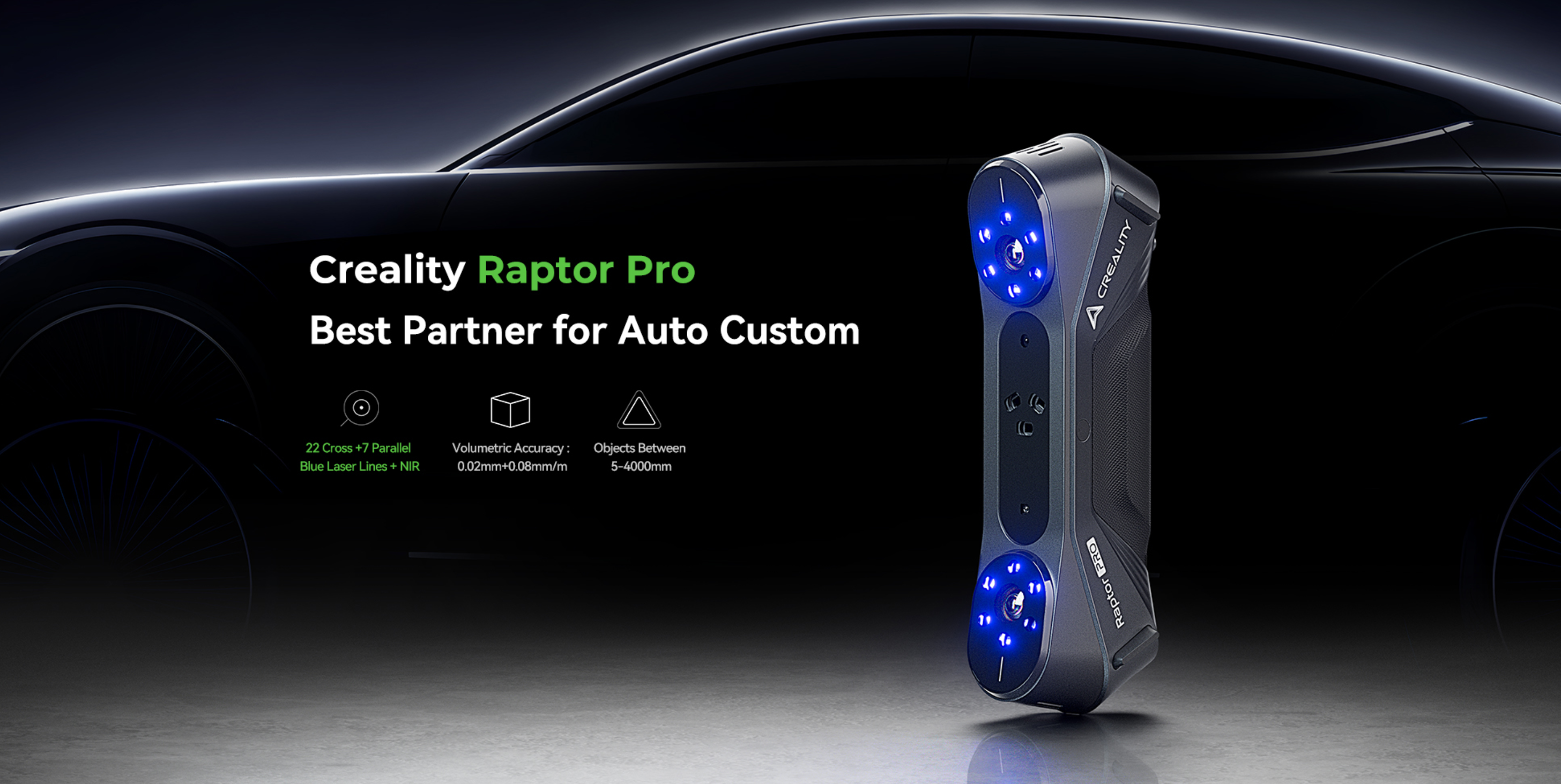

The Creality Raptor Pro 3D Scanner is a professional metrology-grade handheld scanner designed for precision 3D scanning in Bangladesh. Ideal for 3D printing, reverse engineering, product design, medical applications, cultural heritage preservation, and industrial inspection, it provides unmatched accuracy, high-speed performance, and full-color texture capture for a wide range of objects. With 22 cross laser lines, 7 parallel laser lines, and infrared structured light, the Raptor Pro delivers 0.02mm scanning precision, ensuring every detail is captured with reliability and stability.

This versatile 3D scanner handles objects ranging from 5mm to 4000mm, from small mechanical parts to full human body scans. Its robust scanning capabilities, anti-shake tracking, and outdoor adaptability make it suitable for both studio and industrial environments. The integrated RGB camera captures realistic colors for 24-bit full-color 3D models, enabling detailed rendering for prototyping, medical imaging, automotive design, and more.

Features:

• Metrology-Grade Precision: Achieves 0.02mm accuracy with volumetric accuracy of 0.02mm+0.08mm/m, perfect for engineering, product design, and industrial inspection.

• Dual Laser Modes:

  • 22 cross laser lines for large-scale, fast scanning

  • 7 parallel laser lines for high-resolution partial scans

• High-Speed Scanning: Captures up to 660,000 points per second at 60fps with smooth anti-shake tracking.

• Wide Object Size Range: Suitable for objects from 5mm to 4000mm, including small parts, large machinery, and full-body human scans.

• Face & Body Mode: Advanced face mapping algorithm enables detailed human scans, including hair and complex contours, completed in just 2 minutes.

• Outdoor & Material Adaptability: Blue laser ensures stable scanning under strong lighting; capable of scanning black and metallic surfaces without sprays.

• Full-Color Capture: Integrated RGB camera provides 24-bit color scanning across all modes for realistic 3D models.

• Wired & Wireless Flexibility: Supports optional Scan Bridge for seamless wired-to-wireless scanning, enhancing mobility during large projects.

How to Use:

• Connect the scanner to a compatible PC via USB or Scan Bridge for wireless operation.

• Select the appropriate scanning mode: cross laser for large objects, parallel laser for high-resolution smaller areas.

• Calibrate the scanner according to the object size and surface material.

• Position the object within the scanning range of 5mm–4000mm.

• Move the scanner smoothly around the object while tracking points appear in real time.

• Use the software to combine partial scans, apply texture mapping, and export 3D models for CAD, printing, or inspection.

• For full-body scanning, activate face & body mode and complete a 360° rotation around the subject.

Specifications:

• Scanning Modes: 22 cross laser lines, 7 parallel laser lines, NIR structured light

• Accuracy: 0.02mm

• Volumetric Accuracy: 0.02mm + 0.08mm/m

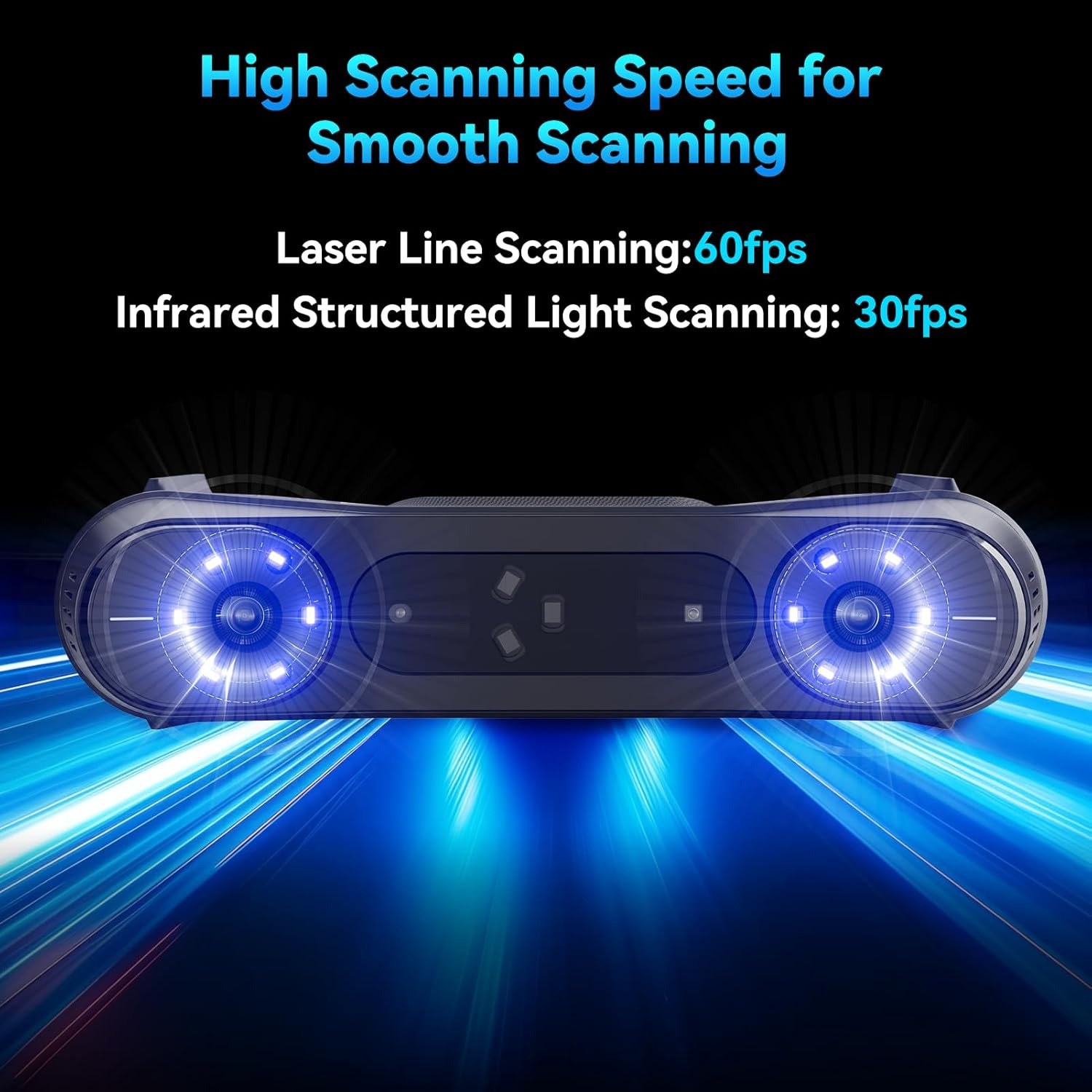

• Frame Rate: Laser Scanning up to 60fps, Infrared NIR Scanning up to 30fps

• Point Capture Speed: 660,000 points per second

• Object Size Range: 5mm – 4000mm (0.2–157 inches)

• Anti-Shake Tracking: One-shot 3D imaging with fast backtracking

• Material Adaptability: Capable of scanning black and metal objects without sprays

• Color Scanning: 24-bit full-color capture in all modes

Applications:

• Reverse engineering, 3D printing, prototyping

• Automotive design, inspection, and parts modeling

• Medical imaging and anatomical studies

• Cultural heritage preservation, archaeology, and museum digitization

• Industrial inspection, quality control, and product design
