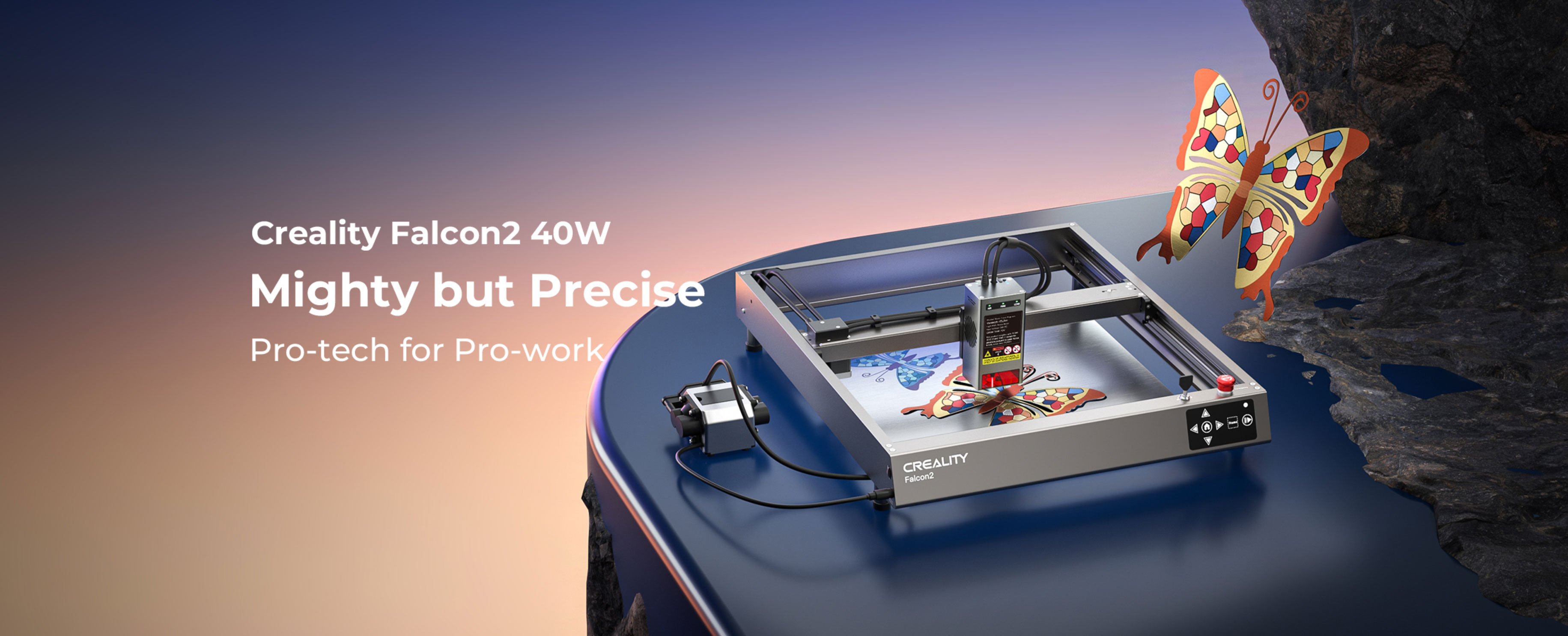

Creality Falcon2 Laser Engraving Machine is a high-performance, versatile engraver with a powerful 40W laser output, designed to handle a variety of materials with precision and speed. With a machine power of 120W, this engraver can cut 20mm cork and 0.15mm stainless steel in a single pass and is capable of directly engraving colored patterns on mirror stainless steel, ceramics, and opaque glass. Its advanced features make it ideal for professionals and hobbyists alike.

Features:

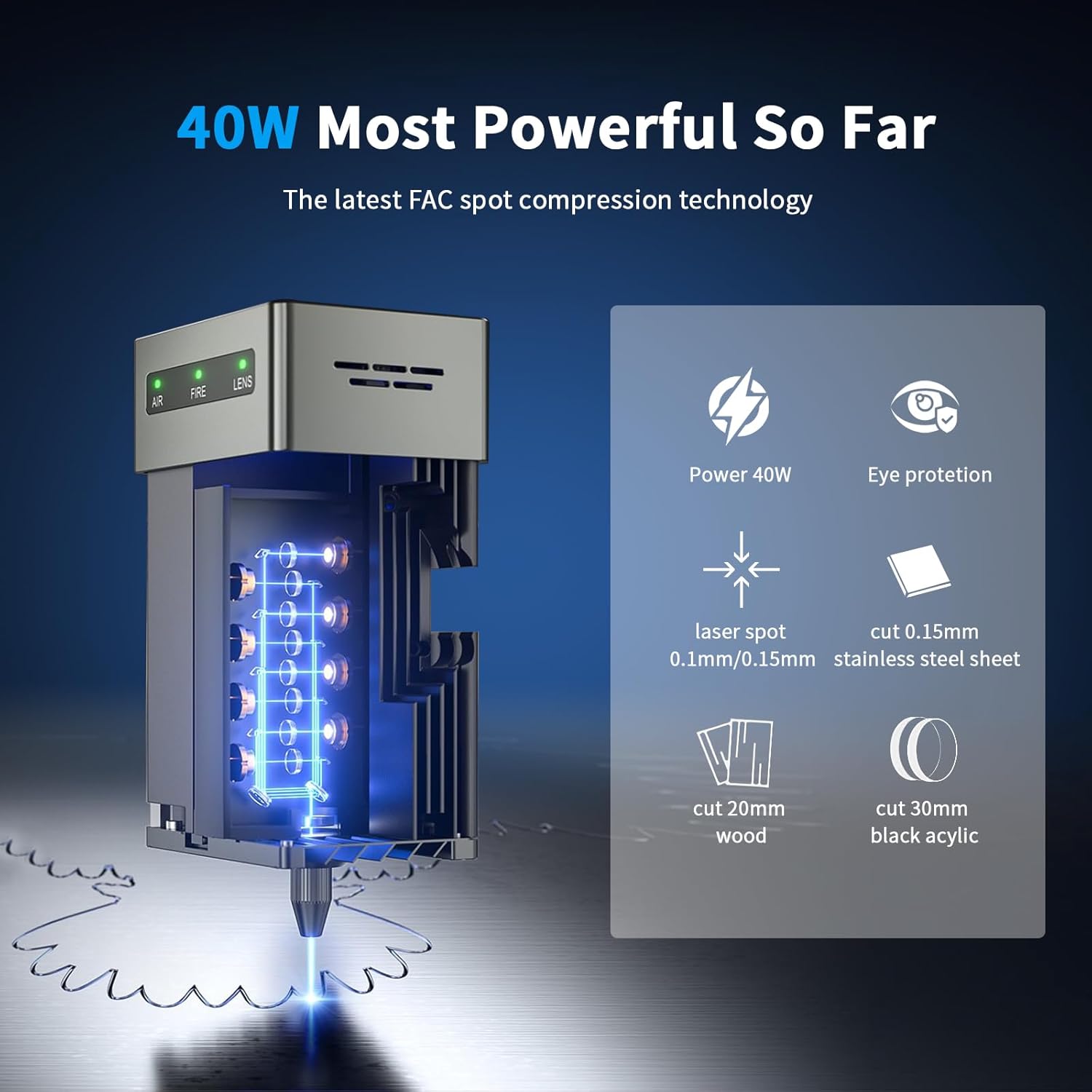

• 40W Laser Output: High power for precise, deep cuts and intricate engraving on various materials.
• 25000mm/min Cutting Speed: Achieve faster cuts with increased productivity and efficiency.

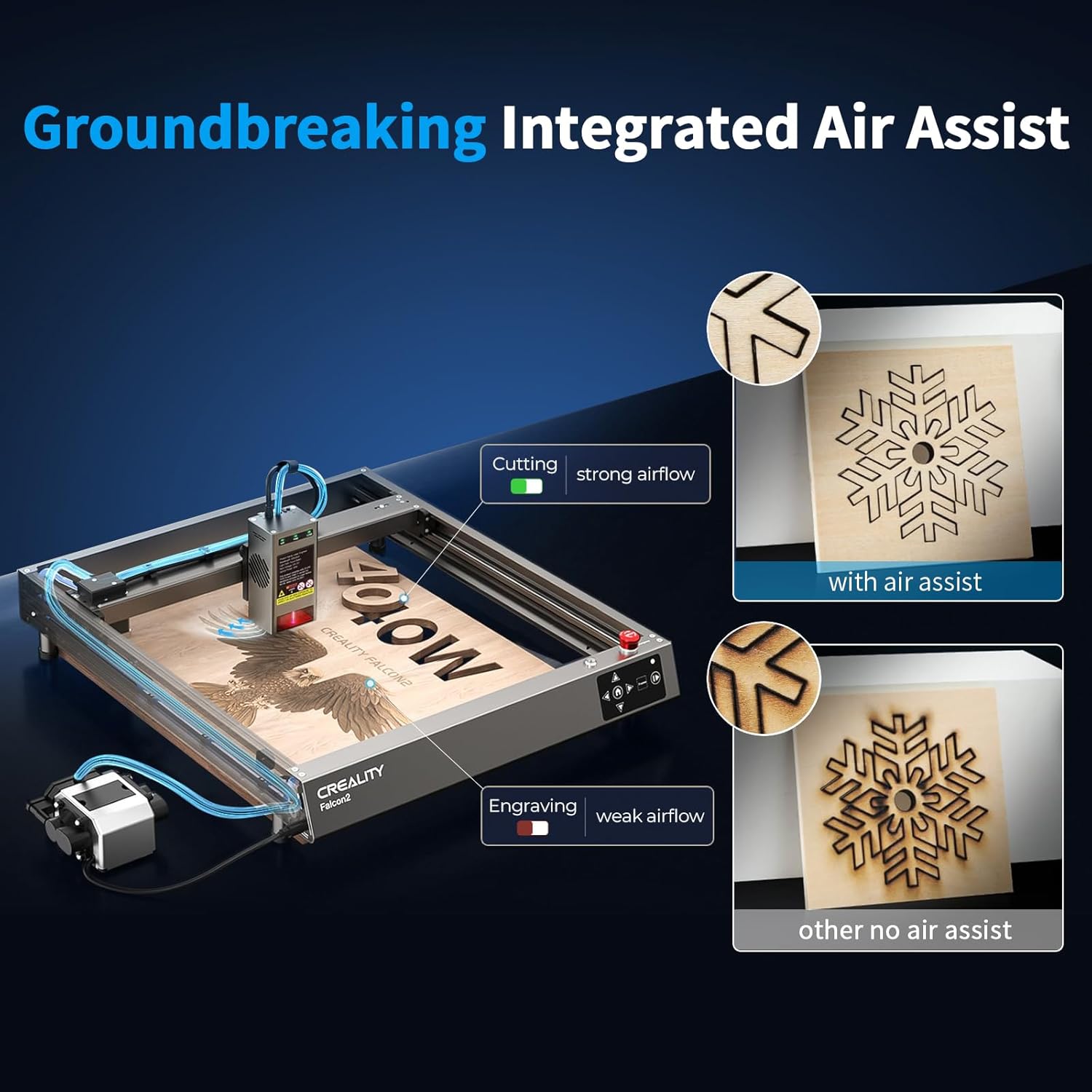

• Automatic Integrated Air Assist: Enhances cutting quality and reduces the effort required.

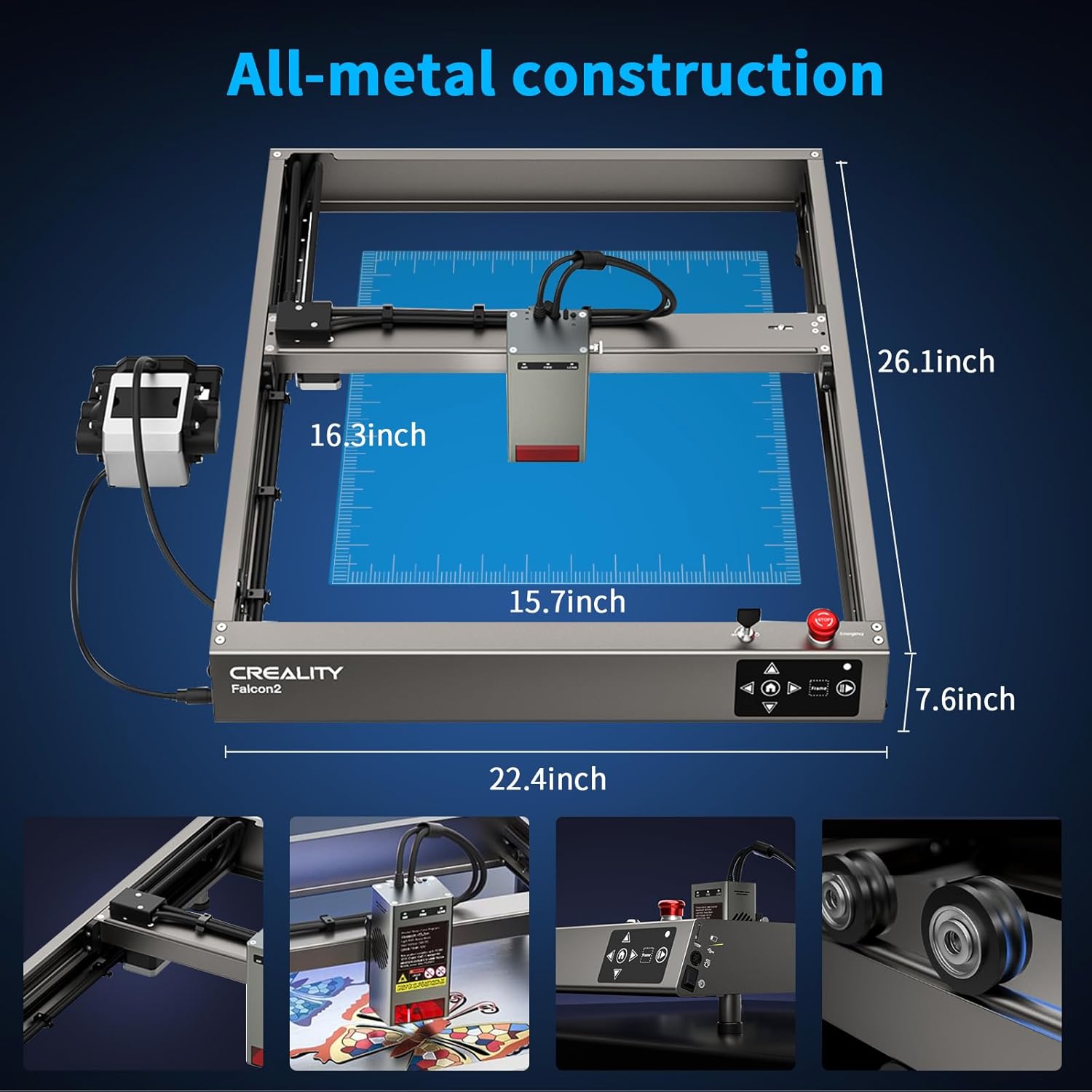

• Ultra-fine Carving and Cutting: Durable anodized aluminum alloy structure improves motion stability for high-precision results.
• Five Safety Protections: Equipped with flame detector, bidirectional limit switch, safety lock, emergency stop button, and laser detection cover for enhanced safety.
• Offline Operation Capability: Supports TF card insertion for offline use, allowing freedom to create without a computer connection.
• Compatible Software: Supports both LightBurn and LaserGRBL for a range of design capabilities.

Specifications:

• Machine Power: Max. 240W
• Laser Module Output Power: 40W
• Laser Spot: Adjustable (0.1mm/0.15mm)
• Wavelength: 455 ± 5mm
• Engraving Speed: Up to 25000mm/min
• Working Area: 400mm x 415mm
• Voltage Input: 100-240V~ 50-60Hz
• Voltage Output: DC 24.0V 9A
• Interfaces: TF Card, Type-C
• Certification: IEC60825, FDA, CE, ROHS, FCC, UKCA, UL Report, PSE
• Operating System Compatibility: Windows, macOS
• Control Software: LightBurn, LaserGRBL
• Supported File Types: JPEG, JPG, PNG, BMP, SVG, DXF, etc.
• Net Weight: 7.4kg
• Gross Weight: 10.94kg
• Product Dimensions: 664 x 570 x 193 mm
• Package Dimensions: 725 x 625 x 150 mm

Supported Materials:

• For Engraving: Cardboard, felt, wood, bamboo, leather, fabric, acrylic, brushed stainless steel, dark anodized aluminum, painted metal, etc.
• For Cutting: Cardboard, felt, wood, bamboo, leather, fabric, acrylic, brushed stainless steel, etc.

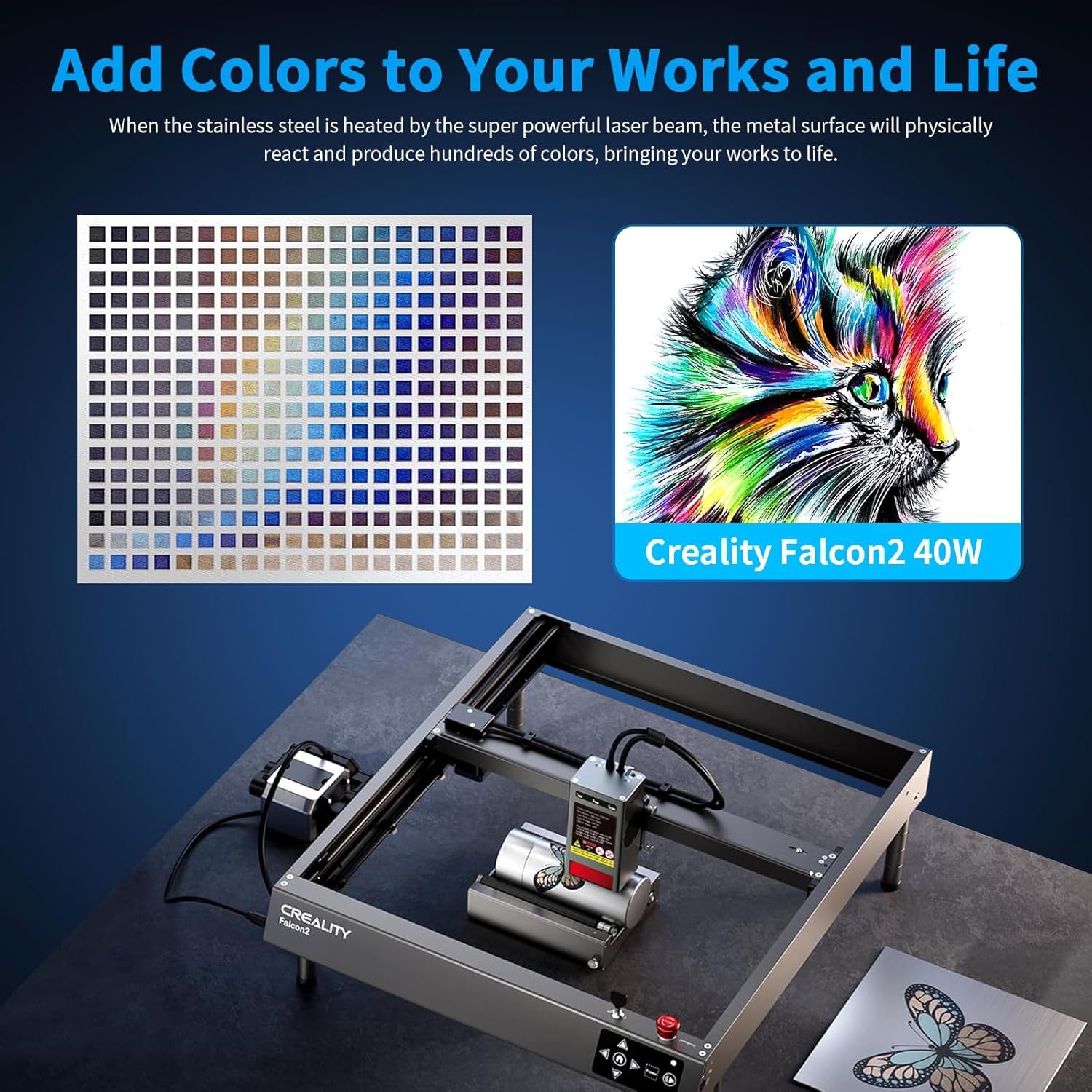

Metal engraving

Wood works

Leather works

Other Sample Works
