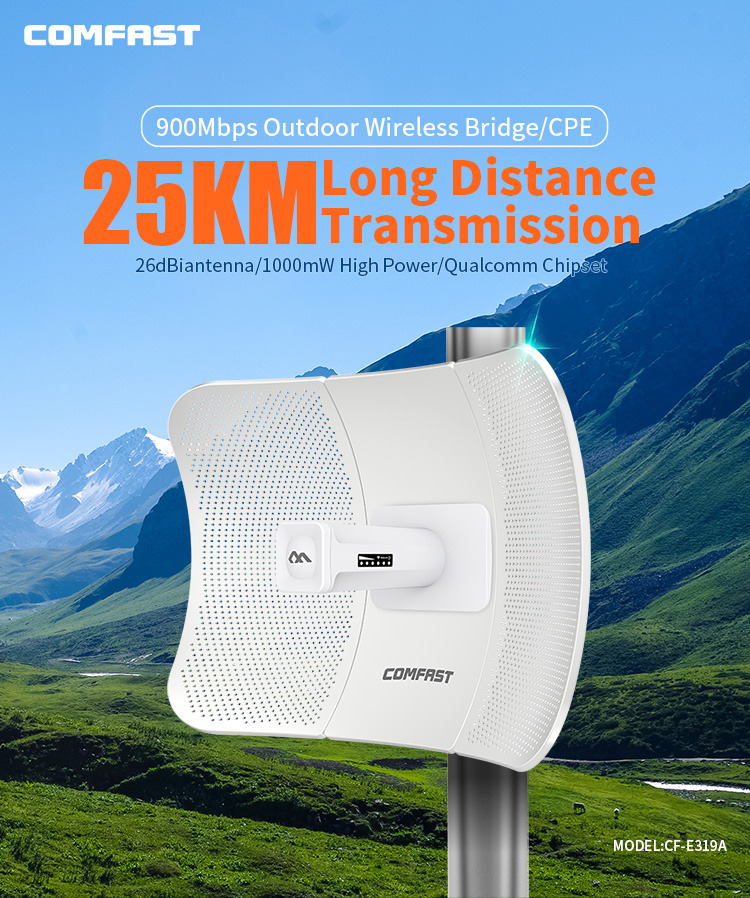

The COMFAST CF-E319A V2 is a robust and reliable wireless bridge designed for outdoor use, offering high-speed connectivity over long distances. Its powerful 26dBi directional antenna ensures excellent signal strength and stability, making it an ideal solution for point-to-point applications up to 25 kilometers depending on the environmental condition.

Working Modes:

• Access Point (AP) Mode

  • Functions as a standard Wi-Fi access point to broadcast a wireless network.
  • Ideal for creating a wireless network for client devices.
  •

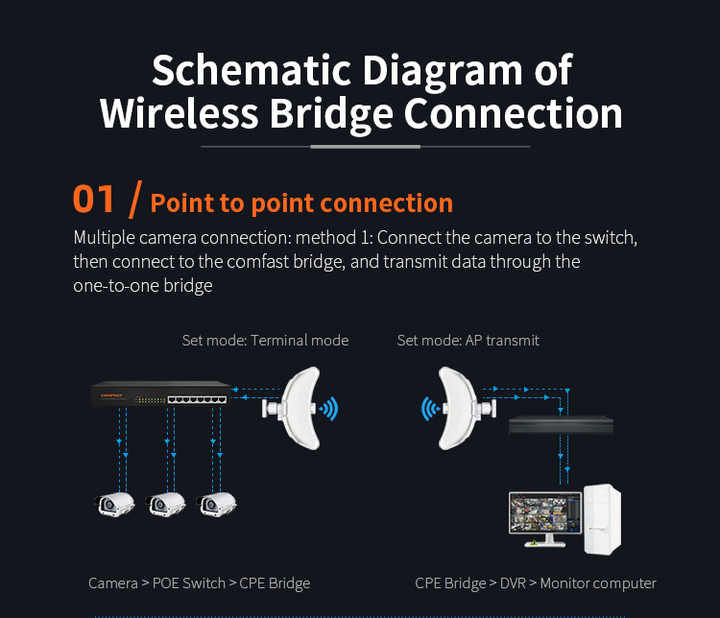

• Point-to-Point (P2P)


  • Establishes a direct link between two devices, often used to connect two locations wirelessly.
  • Supports long-distance connectivity, up to 25 km with a clear line of sight.

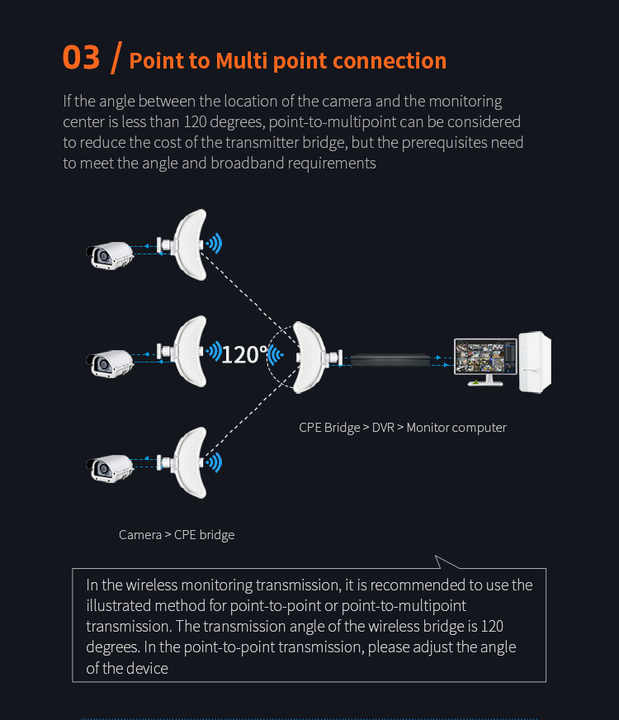

• Point-to-Multipoint (P2MP)


  • Allows one device to act as a base station (AP) to connect multiple client devices (CPEs).
  • Useful for distributing internet to multiple locations or users.

• Router Mode

  • Works as a standard router, handling traffic and distributing internet from a WAN connection.
  • Provides DHCP functionality for connected devices.

• Bridge Mode

  • Connects two networks by bridging their traffic without creating a new IP subnet.
  • Typically used in business or campus settings for seamless integration.

Features:

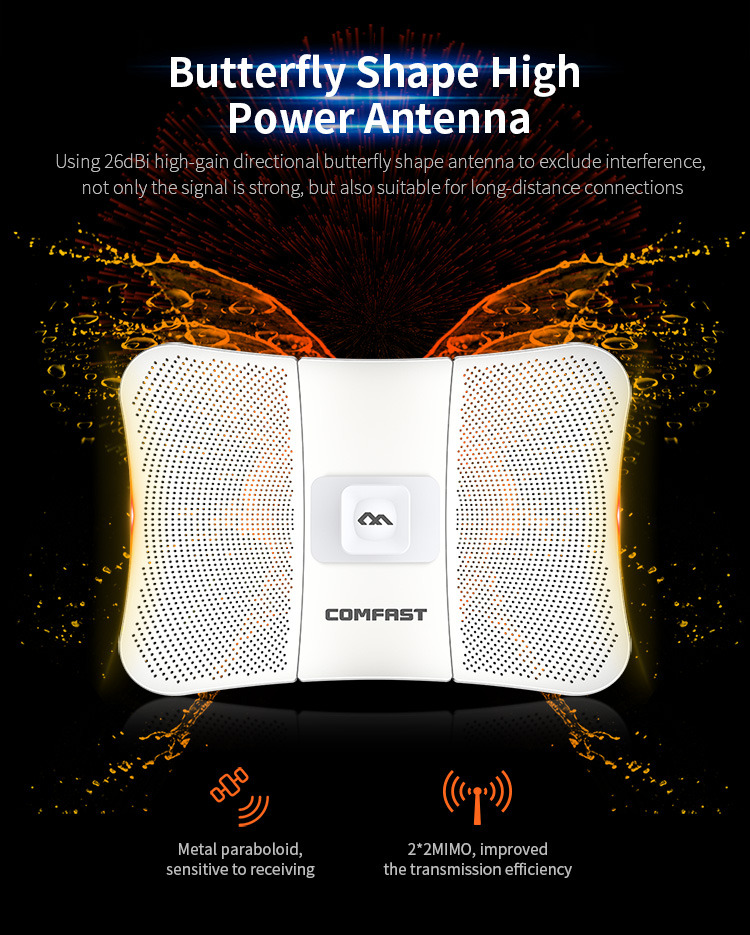

• High-gain 26dBi directional antenna for long-distance communication.
• Supports IEEE802.11a/n/ac wireless standards for enhanced compatibility.

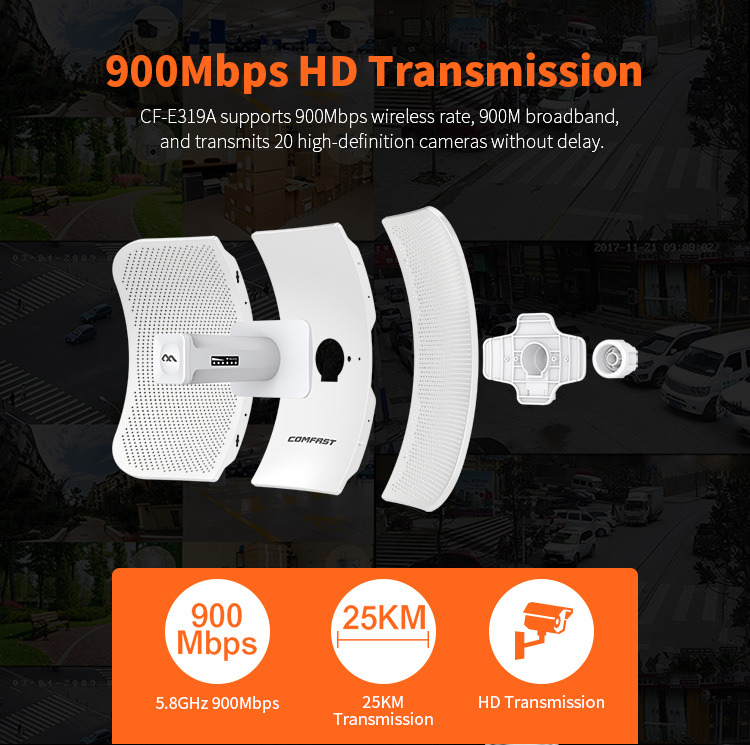

• Maximum wireless speed of 900Mbps at 5.8GHz frequency.

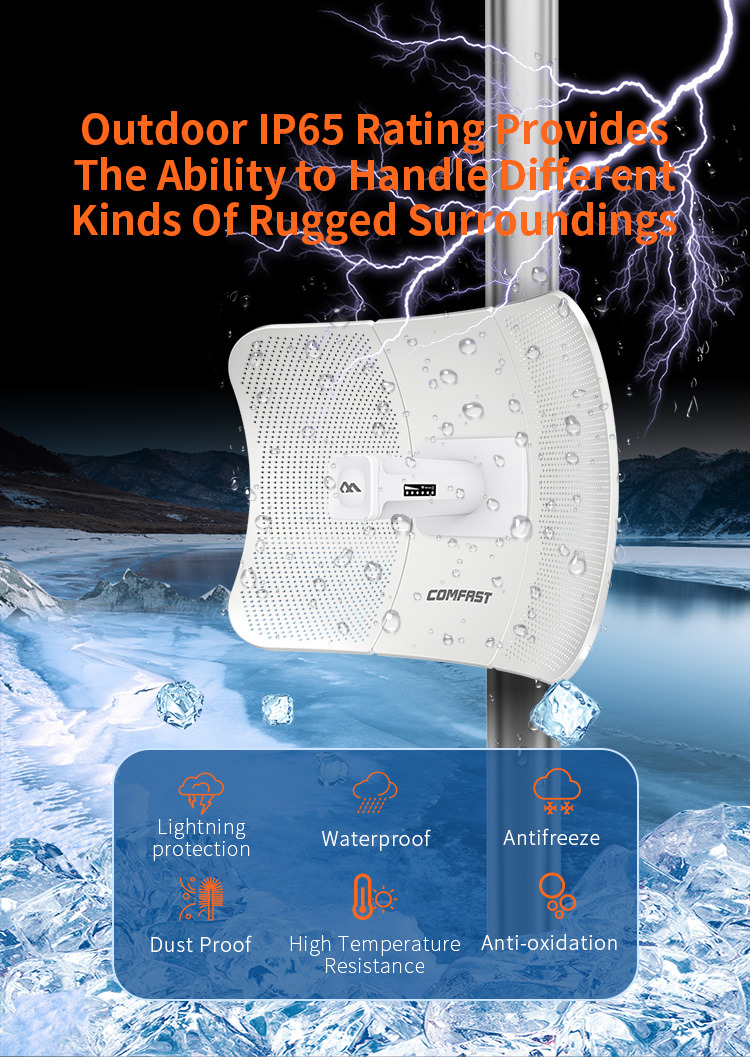

• Durable design for outdoor environments with weatherproof construction.
• Multiple installation options: pole, wall, or bracket mounting.
• Long distance communication upto 25KM depending on the environment.

Specifications:

• Chipset: QCA9563 + QCA9886 + AR8033
• RAM: 128MB
• Flash Memory: 16MB
• PA Module: SKY85743-21
• Wireless Standard: IEEE802.11a/n/ac
• Frequency Range: 5.180GHz – 5.825GHz
• Maximum Speed: 900Mbps
• Transmit Power: 1000mW (30dBm)
• Sensitivity: -96dBm
• Antenna Type: 26dBi directional antenna
• Ethernet Port: 1 x 10/100/1000Mbps LAN/WAN RJ45
• Reset Button: 1 x Reset Button
• LED Indicators: POE Adapter, Network Port, Wi-Fi, Signal Strength (Levels 1–3)
• POE Adapter: 24V
• Power Consumption: ≤12W
• Installation Options: Pole Installation, Wall Installation, Bracket Installation
• Product Size: 400mm x 280mm x 234mm
• Package Size: 324mm x 108mm x 70mm
• Net Weight: ~800g
• Operating Temperature: -10°C to 55°C
• Storage Temperature: -50°C to 75°C
• Operating Humidity: 10% to 90% RH (Non-condensing)
• Storage Humidity: 5% to 90% RH (Non-condensing)
