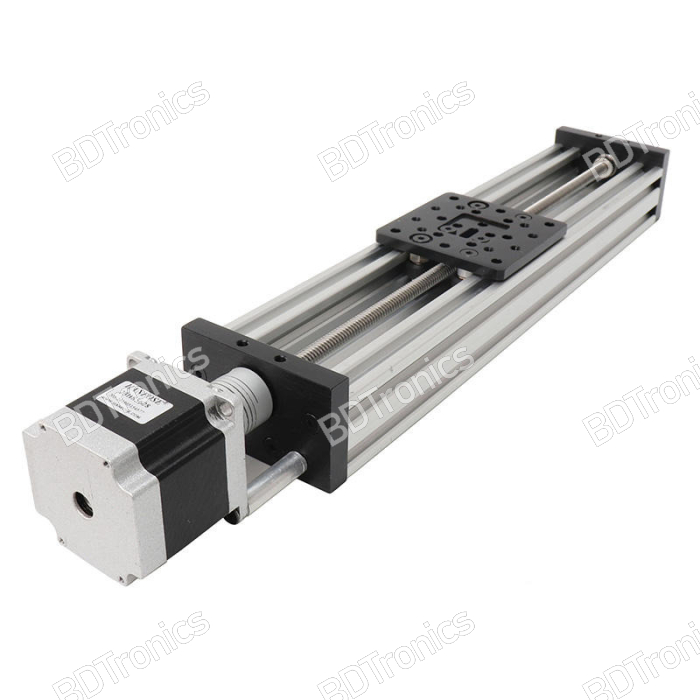

The CNC Linear Motion Guide Slide Table Linear Mechanism is a high-precision, heavy-duty linear motion solution designed for CNC machines, automation systems, and industrial motion control applications. Built with robust aluminum construction, precision linear guide rails, and a high-quality lead screw drive system, this linear slide table ensures smooth, stable, and accurate linear movement under continuous operation. Integrated with a powerful Nema23 stepper motor, this CNC linear motion mechanism delivers reliable torque, precise positioning, and consistent repeatability, making it suitable for demanding machining and automation tasks in Bangladesh.

This CNC linear guide slide table is available in 500mm and 1000mm travel lengths, allowing flexibility for different project sizes and machine designs. The high-precision custom linear motion guide rail system minimizes backlash, vibration, and friction, ensuring excellent accuracy for CNC routing, engraving, laser cutting, milling, and pick-and-place systems. Its modular design makes it ideal for OEM machine builders, industrial automation, robotics projects, and DIY CNC enthusiasts seeking professional-grade performance.

Features:

• Heavy-duty aluminum body for strength and long-term durability

• Precision linear guide rail system for smooth and stable motion

• High-accuracy lead screw drive for minimal backlash

• Integrated Nema23 stepper motor for precise positioning control

• Available in 500mm and 1000mm linear travel lengths

• Custom-built linear motion mechanism for CNC applications

• High load capacity and excellent rigidity

• Low friction and reduced vibration during operation

• Suitable for continuous industrial and automation use

• Easy integration into CNC machines and custom automation systems

Specifications:

• Product Type: CNC Linear Motion Guide Slide Table

• Structure Material: Heavy-duty aluminum

• Drive System: lead screw mechanism

• Motor Type: Nema23 stepper motor

• Linear Travel Length Options: 500mm, 1000mm

• Guide System: Precision linear motion guide rails

• Motion Type: Linear sliding motion

• Precision Level: High accuracy and repeatability

• Application Environment: CNC, industrial automation, robotics

• Mounting Type: Surface mount compatible with CNC frames

Applications:

• CNC router and CNC milling machines

• Laser cutting and laser engraving machines

• Automation systems and linear actuators

• Pick and place machines

• Industrial robotics and motion control systems

• 3D printer linear axis upgrades

• PCB drilling and engraving machines

• DIY CNC projects and custom machine builds

How to Use:

• Mount the linear slide table securely on a rigid CNC frame

• Connect the Nema23 stepper motor to a compatible motor driver

• Align the lead screw and guide rails properly to ensure smooth travel

• Configure motor steps and motion parameters in CNC controller software

• Perform initial calibration and limit testing

• Operate the system within rated load and speed limits for best accuracy

Installation and Maintenance Instructions:

• Ensure proper alignment during installation to prevent premature wear

• Lubricate lead screw and linear guide rails periodically

• Keep rails and screw free from dust, debris, and metal chips

• Check mounting bolts and couplings regularly

• Avoid overloading beyond the specified capacity

• Store and operate in a clean, dry environment for extended lifespan

Why Choose This CNC Linear Motion Guide:

• High-precision motion control for professional CNC applications

• Durable aluminum construction for industrial reliability

• Flexible travel length options for different machine sizes

• Smooth and accurate lead screw driven linear movement

• Ideal for both commercial manufacturing and advanced DIY CNC projects
