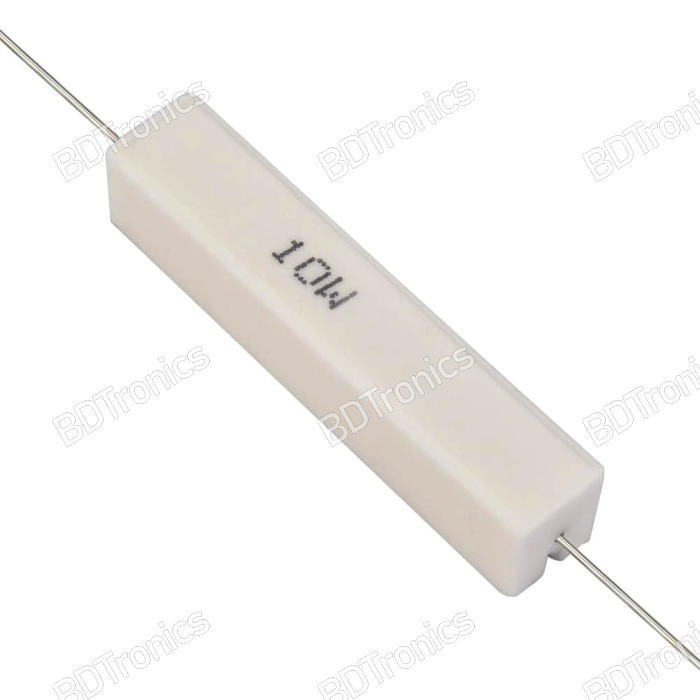

10W ceramic power resistor available at BDTronics designed for high power dissipation, stability, and reliable performance in power electronics, battery load testing, motor control, inverter circuits, and DIY electronics projects in Bangladesh. These cement ceramic resistors feature flame resistant housing, wire wound construction, and 5% tolerance ensuring consistent resistance value under high temperature and continuous load conditions.

BDTronics supplies a wide range of resistance values from low ohm current limiting resistors to mega ohm high resistance applications, making these 10W ceramic resistors suitable for hobbyists, engineers, repair technicians, and industrial users. The compact rectangular cement body ensures durability, heat resistance, and safe operation in demanding circuits.

Features:

• 10W high power dissipation capability for heavy load circuits

• Wire wound ceramic construction for thermal stability and long life

• Flame resistant cement coating for safety and reliability

• 5% tolerance for consistent resistance accuracy

• Wide resistance range covering low ohm to mega ohm applications

• Suitable for current limiting, voltage dropping, dummy load, and snubber circuits

• High temperature resistance and overload capability

• Compact rectangular package for PCB and chassis mounting

• Ideal for inverter, charger, amplifier, power supply, and battery testing projects

Resistance Values Available:

• 0.5Ω, 1Ω, 2.2Ω, 4.7Ω, 10Ω, 22Ω, 33Ω, 47Ω, 56Ω, 68Ω, 82Ω, 100Ω, 120Ω, 150Ω, 180Ω, 220Ω, 330Ω, 470Ω, 680Ω, 820Ω

• 1kΩ, 1.2kΩ, 1.5kΩ, 1.8kΩ, 2.2kΩ, 2.7kΩ, 3.3kΩ, 3.9kΩ, 4.7kΩ, 5.6kΩ, 6.8kΩ, 8.2kΩ, 10kΩ, 12kΩ, 15kΩ, 18kΩ, 22kΩ, 27kΩ, 33kΩ, 39kΩ, 47kΩ, 56kΩ, 68kΩ, 82kΩ

• 100kΩ, 120kΩ, 150kΩ, 180kΩ, 220kΩ, 330kΩ, 470kΩ, 680kΩ, 820kΩ, 1MΩ, 2.2MΩ, 4.7MΩ, 10MΩ

Applications:

• Battery load testing and discharge circuits

• Power supply current limiting and voltage dropping

• Inverter and UPS protection circuits

• Motor speed control and braking resistor applications

• Audio amplifier dummy load testing

• Snubber networks and surge suppression circuits

• Industrial control panels and automation circuits

• DIY electronics and repair projects

How To Use:

• Select proper resistance value according to circuit current and voltage requirements

• Mount resistor with enough airflow to allow heat dissipation

• Use series connection for higher resistance or parallel for higher power handling

• Ensure resistor wattage rating is higher than calculated power dissipation

• Keep away from heat sensitive components due to high operating temperature

Product Instructions:

• Verify resistance value before installation using multimeter

• Avoid enclosing resistor in sealed plastic housing without ventilation

• Use ceramic standoffs or chassis mounting for continuous high load operation

• Maintain safe spacing from PCB traces to prevent heat damage

• For high current applications use thicker connecting wires

Specifications:

• Power Rating: 10 Watt

• Tolerance: ±5%

• Construction: Wire wound ceramic cement resistor

• Body Type: Flame resistant rectangular ceramic housing

• Mounting: Through hole leaded

• Operating Temperature: High temperature resistant design

• Resistance Range: 0.5Ω to 10MΩ

• Application Type: Power electronics and load resistor
