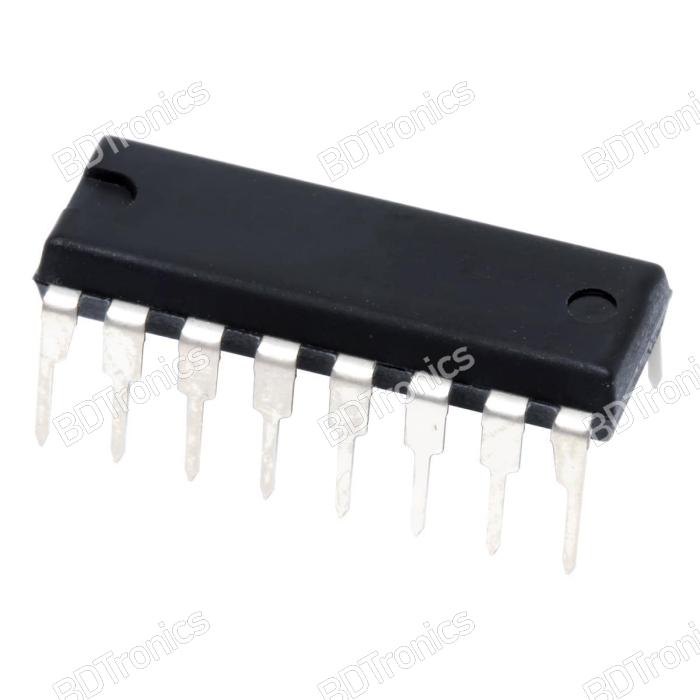

CD4543BE Encoders, Decoders, Multiplexers & Demultiplexers BCD to 7 Segment PDIP 16

CD4543BE Encoders, Decoders, Multiplexers & Demultiplexers BCD to 7 Segment

In stock

SKU PRD-00002543
Category: ICs
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Specifications:

      Technical Specifications

    • Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
    • Product: Decoders / Demultiplexers
    • Logic Family: CD4000
    • Number of Input Lines: 4 Input
    • Number of Output Lines: 7 Output
    • Propagation Delay Time: 400 ns
    • Supply Voltage - Min: 3 V
    • Supply Voltage - Max: 18 V
    • Minimum Operating Temperature: - 55 C
    • Maximum Operating Temperature: + 125 C
    • Mounting Style: Through Hole
    • Package / Case: PDIP-16
    • Packaging: Tube
    • Height: 4.57 mm
    • High Level Output Current: - 1.5 mA
    • Length: 19.3 mm
    • Low Level Output Current: 1.5 mA
    • Maximum Clock Frequency: 8 MHz
    • Operating Supply Voltage: 3 V to 18 V
    • Operating Temperature Range: - 55 C to + 125 C
    • Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
    • Subcategory: Logic ICs
    • Width: 6.35 mm
    • Unit Weight: 0.033570 oz
