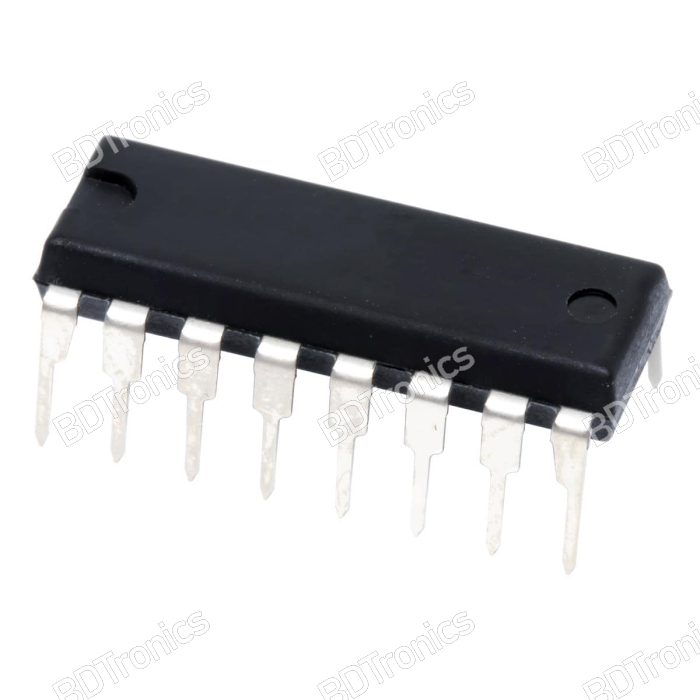

CD4049UBEE4 Buffers & Line Drivers Hex Inverting PDIP 16

CD4049UBEE4 Buffers & Line Drivers Hex Inverting

In stock

SKU PRD-00002409
Categories: ICs
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Specifications:

      Technical Specifications

    • Product Category: Buffers & Line Drivers
    • Number of Input Lines: 6 Input
    • Number of Output Lines: 6 Output
    • Polarity: Inverting
    • High Level Output Current: - 5.2 mA
    • Low Level Output Current: 26 mA
    • Quiescent Current: 40 nA
    • Supply Voltage - Max: 20 V
    • Supply Voltage - Min: - 0.5 V
    • Operating Supply Current: 30 uA
    • Minimum Operating Temperature: - 55 C
    • Maximum Operating Temperature: + 125 C
    • Mounting Style: Through Hole
    • Package / Case: PDIP-16
    • Packaging: Tube
    • Function: Buffer/Converter
    • Height: 4.57 mm
    • Input Signal Type: Single-Ended
    • Length: 19.3 mm
    • Logic Family: CD4000
    • Logic Type: CMOS
    • Number of Channels: 5
    • Operating Supply Voltage: 1.8 V, 2.5 V, 3.3 V
    • Operating Temperature Range: - 55 C to + 125 C
    • Output Type: CMOS
    • Product Type: Buffers & Line Drivers
    • Propagation Delay Time: 120 ns at 5 V
    • Subcategory: Logic ICs
    • Supply Current - Max: 20 uA
    • Technology: CMOS
    • Width: 6.35 mm
    • Unit Weight: 0.033570 oz
