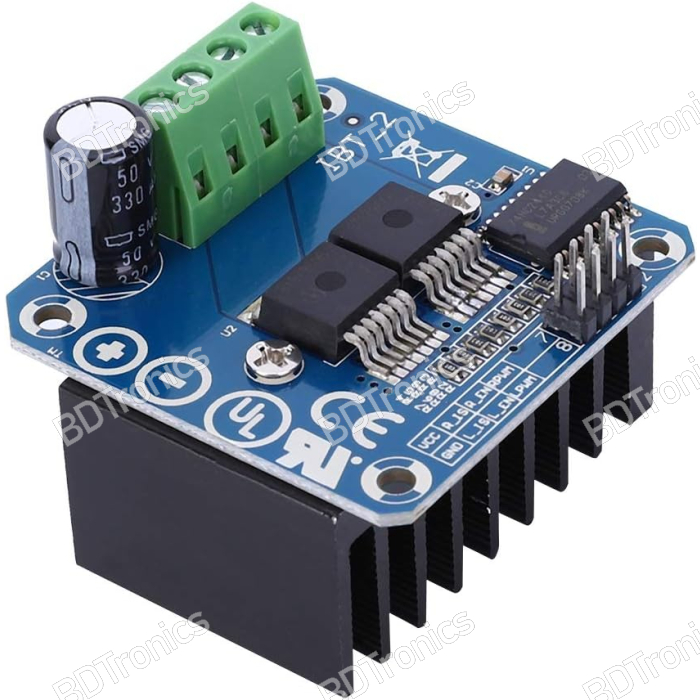

The BTS7960 43A Motor Driver Module is a high-performance H-Bridge motor controller designed for driving high-current DC motors in robotics, automation systems, electric vehicles, smart cars, industrial equipment, and DIY engineering projects. Built around the powerful BTS7960 half-bridge driver chips, this module delivers exceptional efficiency, high current handling capability, and reliable motor control performance.

Capable of supporting up to 43A maximum current, the BTS7960 motor driver provides forward and reverse motor rotation, PWM speed control, dynamic braking, and comprehensive protection features. The onboard thermal protection, overcurrent protection, and low power consumption design ensure safe and stable operation even under demanding conditions.

The module features 5V signal isolation between the microcontroller and motor driver circuitry, helping protect Arduino, ESP32, STM32, Raspberry Pi, and other control systems from electrical interference and voltage spikes generated by high-power motors.

Whether you're building robotic platforms, electric vehicles, automated machinery, conveyor systems, or smart car projects, the BTS7960 motor driver offers reliable and precise motor control with excellent durability.

Features:

• High-power BTS7960 H-Bridge motor driver module

• Supports high-current DC motor applications

• Maximum motor current up to 43A

• Forward and reverse motor direction control

• PWM speed control with high efficiency

• Dynamic braking functionality

• Dual H-Bridge driver architecture

• 5V signal isolation for microcontroller protection

• Thermal overload protection

• Overcurrent protection

• Low quiescent current consumption

• High-speed PWM operation

• Low internal resistance for reduced heat generation

• Stable performance and long service life

• Compatible with Arduino, ESP32, STM32, Raspberry Pi, PIC, AVR, and other microcontrollers

Why Choose BDTronics?

BDTronics supplies carefully tested electronic modules and development components for engineers, students, hobbyists, robotics developers, and industrial users. The BTS7960 Motor Driver Module from BDTronics is inspected for quality and performance to ensure reliable operation in demanding motor control applications.

Specifications:

• Model: BTS7960 Motor Driver Module

• Driver Chip: BTS7960

• Input Voltage: 6V – 27V DC

• Maximum Current: 43A

• Logic Input Voltage: 3.3V – 5V

• PWM Duty Cycle: 0% – 100%

• Maximum PWM Frequency: 25KHz

• Path Resistance: 16mΩ @ 25°C

• Quiescent Current: 7µA @ 25°C

• Motor Control: Forward, Reverse, Brake

• Protection Features: Thermal Protection, Overcurrent Protection

• Isolation: 5V Signal Isolation

• Control Interface: PWM and Direction Control

How to Use:

• Connect the motor power supply to the input terminals

• Connect the DC motor to the motor output terminals

• Connect control pins to Arduino, ESP32, STM32, or other microcontrollers

• Apply PWM signals to control motor speed

• Use direction control pins to change motor rotation direction

• Implement braking function when required

• Ensure adequate power supply for high-current motors

• Verify wiring connections before powering the system

• Use proper cooling and ventilation during high-load operation

Applications:

• Smart car projects

• High-power robotics

• Electric vehicles

• Automated machinery

• Conveyor belt systems

• Industrial motor control

• RC vehicle projects

• DIY engineering systems

• Agricultural automation

• Motorized platforms

• Educational robotics

• Mechatronics development

• Automation research projects

• Motor testing systems

Package Includes:

• 1 × BTS7960 43A Motor Driver Module
