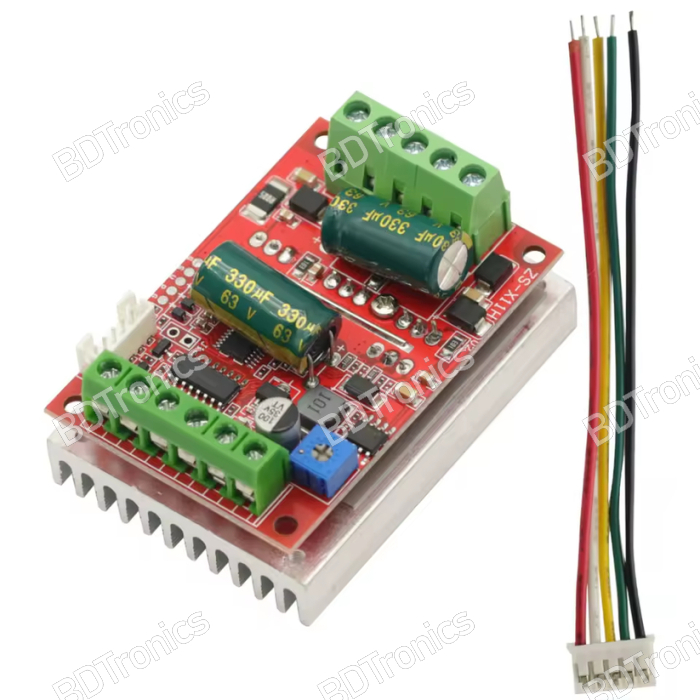

BLDC Three-Phase Brushless Hall Motor Controller is a high-performance DC motor driver board designed for controlling Hall sensor-based brushless DC motors with precision, efficiency, and reliability. Supporting a wide input voltage range of 9V to 60V DC and delivering up to 400W output power, this controller is ideal for electric vehicles, robotics, industrial automation, CNC machinery, conveyor systems, and DIY motor control projects.

The controller supports multiple speed control methods including onboard potentiometer adjustment, PWM signal input, and 0–5V analog voltage control. Integrated forward/reverse control, braking functions, speed feedback output, and overcurrent protection make it a versatile solution for professional and hobbyist applications.

Features:

• Three-phase BLDC motor controller

• Compatible with Hall sensor brushless DC motors

• Wide input voltage range from 9V to 60V DC

• Supports up to 400W motor power

• High current handling capability

• Hall sensor feedback support

• Smooth and efficient motor operation

• Built-in overcurrent protection

• PWM speed control support

• 0–5V analog speed control support

• Onboard potentiometer speed adjustment

• Forward and reverse rotation control

• Brake function for rapid stopping

• Stop control function

• Speed pulse feedback output

• Built-in 5V auxiliary output

• Compact and durable PCB design

• Suitable for continuous operation

Applications:

• Electric scooters

• Electric bicycles

• RC vehicles

• Robotics projects

• Conveyor systems

• Industrial automation equipment

• CNC machines

• Smart mobility systems

• Electric carts

• Actuator control systems

• DIY BLDC motor projects

• Educational motor control systems

• Marine propulsion systems

• Automation and motion control platforms

• Embedded motor control applications

Benefits:

• Precise motor speed control

• Smooth motor startup and operation

• Supports multiple control interfaces

• Reliable Hall sensor feedback

• Enhanced motor efficiency

• Safe operation with overcurrent protection

• Easy integration into automation systems

• Supports bidirectional motor control

• Suitable for low-voltage and high-voltage systems

• Simplifies BLDC motor development projects

How to Use:

• Connect the DC power supply to the input terminals.

• Connect the BLDC motor phases to MA, MB, and MC outputs.

• Connect Hall sensor wires to HA, HB, +5V, and GND terminals.

• Select the desired speed control method.

• Use the potentiometer, PWM signal, or analog voltage input to adjust speed.

• Use direction control terminals for forward and reverse operation.

• Use brake and stop inputs when required.

• Monitor motor speed using the SC pulse output terminal.

Product Instructions:

• Verify motor Hall sensor compatibility before installation.

• Ensure correct motor phase wiring.

• Use adequate cooling when operating near maximum power.

• Do not exceed rated voltage and current limits.

• Secure all wiring connections before powering the system.

• Install in a ventilated enclosure for continuous operation.

• Use proper power supply protection and fuses when necessary.

Specifications:

• Product Name: BLDC Three-Phase Brushless Hall Motor Controller

• Motor Type: Brushless DC Motor (BLDC) with Hall Sensors

• Input Voltage: 9V–60V DC

• Rated Current: 16A

• Peak Current: Up to 20A

• Rated Power: 200W–300W

• Maximum Power: Up to 400W (with Cooling)

• Control Methods: Potentiometer, PWM, 0–5V Analog Voltage

• Direction Control: Forward / Reverse Supported

• Brake Function: Supported

• Stop Function: Supported

• Protection: Overcurrent Protection

• Auxiliary Output: 5V (Maximum 50mA)

• Speed Feedback Output: SC Pulse Signal

• Hall Sensor Interface: HA, HB, +5V, GND

• Motor Output: MA, MB, MC

• Driver Type: Three-Phase Brushless Motor Driver

• Shipment Weight: 0.086kg

• Shipment Dimensions: 10 × 7 × 3cm

Package Includes:

• 1 x BLDC Three-Phase Brushless Hall Motor Controller 9–60V 400W DC Motor Driver Board
