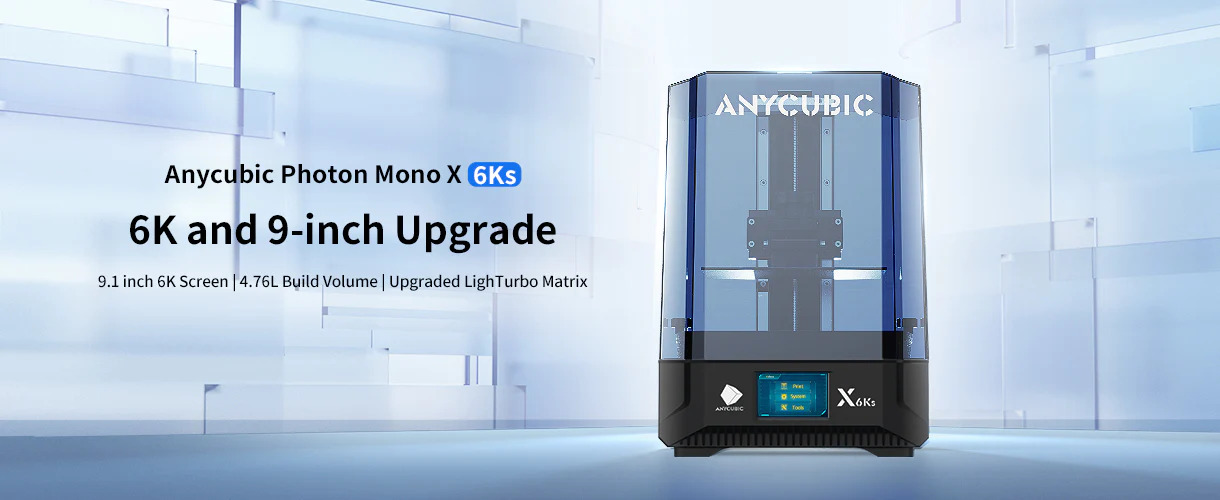

Upgraded version of Mono X 6K

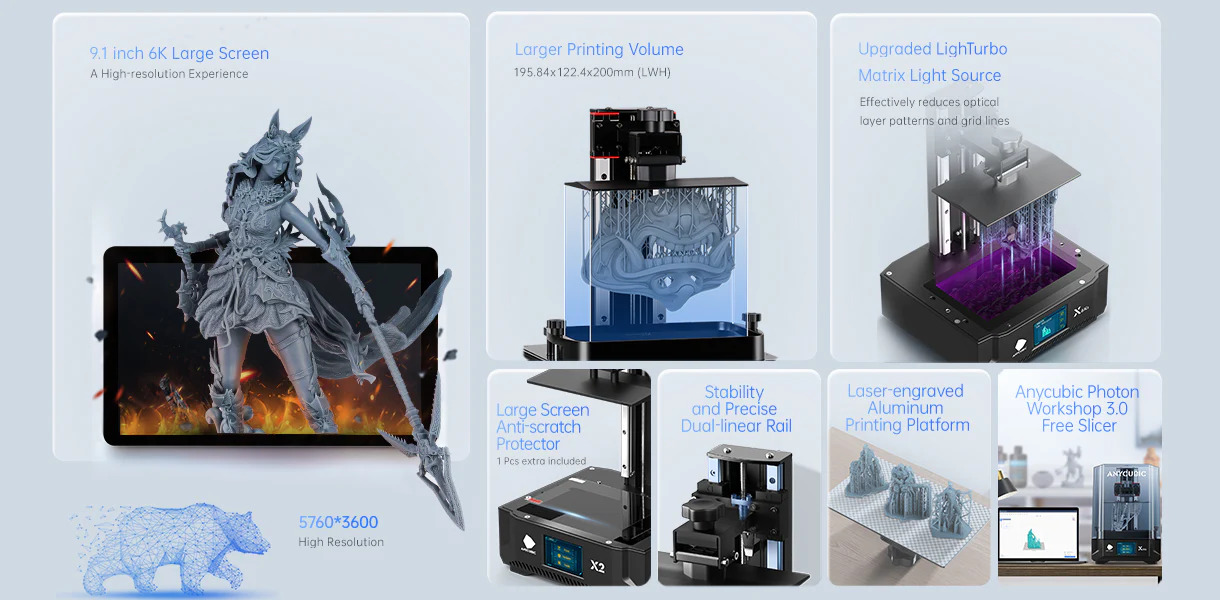

9.1 inch 6K Screen - A High-resolution Experience

Adopts a 9.1 inch 6K high-definition monochrome exposure screen with a resolution of up to 5760*3600px, bringing sharper and delicate details presentation supported by a high contrast ratio of 380:1. Comes with a high light transmittance anti-scratch film protector, effectively protecting the screen from wearing and scratches while ensuring printing accuracy. One free extra piece included for easy replacement.

Large Printing Dimension
4.76L Printing Volume

A printing dimension of 195.84X122.4X200mm (LWH) brings you up to a maximum printing volume of 4.76L, ensuring more printings in one go.

Sharp and Delicate Details

Upgraded Light Source

The upgraded Anycubic LightTurbo matrix light source and high-precision textured optical lens provide a stable and even parallel light source, effectively removing optical layers and grid lines and creating a smooth and delicate model surface. Printing speed reaches 15-60 mm/h, collect all your models even sooner.







Stable Dual-linear Rail

The Stable Dual-linear Z-axis Rail and its highly wear-resistant POM anti-backlash nuts restrain the Z-axis' stability to the micron level, effectively eliminating printing layers and ensuring all printing details.



Laser-engraved Build Platform

The Laser-engraved technique that the printing platform adopts outstands sandblasting ones in platform flatness and adhesion, greatly reducing fall-offs and warping-ups and bringing you an even better success rate.

Upgraded Slicer
Professional and Free

The upgraded free self-developed slicer Anycubic Photon Workshop 3.0 brings you an even better slicing experience in punching, supporting, shelling and layout arranging.

Simplified UI makes slicing easier. The new model repairing function also helps boost the printing success rate.

Specifications:

• Machine Weight: 8.5kg/18.7lb.
• Machine Dimensions: 417x290x260mm/ 16.4x11.4x10.2 in.(HWD)
• Printing Volume: 4.76L/161oz.
• Printing Dimensions: 200x195.84x122.4mm/ 7.8x7.7x4.8 in. (HWD)
• Machine Leveling: 4-point manual leveling
• Printing Speed: 15-60mm/h
• Removable Cover: Effectively block UV radiation
• Resin Tank: Unibody design with scale lines
• Zaxis: Dual-linear Z-axis, 10μm precision
• Printing Platform : Laser-engraved aluminum platform
• Large Film Protector: Replaceable anti-scratch film
• Exposure Screen:
  • 9.1" monochrome screen
  • 6K (5,760 x 3,600 pixels) resolution
  • 380:1 Contrast Ratio
  • 6.5% light transmission
  • 2,000 hours lifespan
• Light Source:
  • Upgraded Anycubic LighTurbo
  • Matrix light source
• Control Panel: 3.5-inch TFT touch control
• Data Input: USB Type-A 2.0
• Power Supply: 80W rated power
• Power Button: On/off switch
