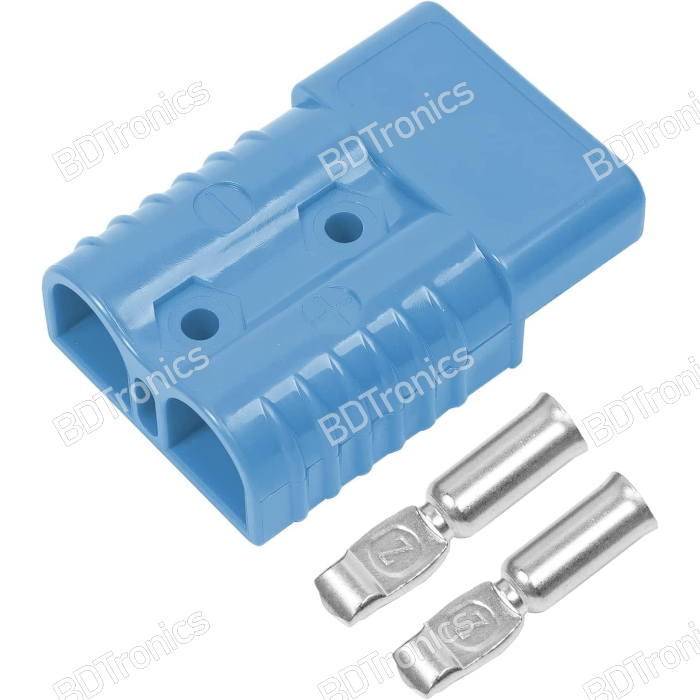

Anderson Connector 120A Plug is a high-quality, rugged, genderless power connector designed for high-current DC power connections in battery, solar, inverter, camping, caravan, 4X4, EV, industrial, and power electronics applications. BDTronics offers this 120A Anderson-style power connector in Bangladesh for users who need a reliable detachable connection for high-current battery and power cables. BDTronics Anderson 120A connectors are particularly suitable for LiFePO4 battery packs, inverter systems, solar power systems, electric vehicles, battery chargers, DC power distribution, and other high-current applications.

The connector features a genderless design, allowing identical connector halves to mate with each other without separate male and female versions. Its rugged housing and high-current contacts make it suitable for applications where a secure and convenient battery connection is required.

Features:

• 120A high-current Anderson-style power connector

• High-quality rugged housing

• Genderless connector design

• Same connector type mates with itself

• Designed for high-current DC power connections

• Suitable for battery and power cable applications

• Suitable for LiFePO4 battery packs

• Suitable for solar power systems

• Suitable for inverter battery connections

• Suitable for camping and caravan power systems

• Suitable for 4X4 and automotive electrical applications

• Suitable for electric vehicle and mobility applications

• Suitable for industrial DC power connections

• Supports multiple cable sizes depending on contact used

• Maximum wire insulation diameter up to 11mm

• Contact retention force: 50lbs

• Operating temperature: -20°C to +120°C

• Voltage rating: up to 600V AC or DC

• Supplied as 1 piece

• BDTronics supplies this Anderson 120A connector for high-current applications in Bangladesh

Specifications:

• Product Type: High-Current Power Connector

• Connector Type: Anderson-style connector

• Rated Current: 120A application rating

• Contact Rating: UL rated currents up to 240A

• Disconnect Rating: UL rated hot-plugging up to 120A

• Voltage Rating: 600V AC/DC

• Connector Design: Genderless

• Contact Retention Force: 50lbs

• Operating Temperature: -20°C to +120°C

• Maximum Wire Insulation Diameter: 11mm

• Quantity: 1 piece

• Application: High-current battery and DC power connection

Applications:

• LiFePO4 battery connections

• Lithium battery packs

• Solar battery systems

• Solar power connections

• Solar inverter systems

• Inverter battery terminals

• DC power distribution

• Battery-to-inverter connection

• Battery-to-charger connection

• Battery-to-load connection

• Electric vehicle battery connections

• Electric tricycle power systems

• Electric bike battery systems

• 4X4 auxiliary power systems

• Camping power systems

• Caravan power systems

• Portable power stations

• High-current DC equipment

• Industrial battery systems

• Robotics battery connections

• RC and hobby power systems

• Welding and high-current equipment

• Emergency power systems

• Custom battery packs

• DIY power electronics projects

LiFePO4 Battery Applications:

The 120A connector is particularly useful for building detachable connections for high-capacity LiFePO4 battery systems.

• 12.8V LiFePO4 battery

• 25.6V LiFePO4 battery

• 48V / 51.2V LiFePO4 battery

• Solar storage battery

• Inverter battery

• UPS battery system

• Portable LiFePO4 power station

• DIY LiFePO4 battery pack

• Electric vehicle battery pack

For high-current battery systems, select cable size, contact type, fuse, BMS, and connector according to the actual continuous and peak current requirements.

How to Use:

• Select the appropriate contact according to your cable size.

• Strip the cable according to the contact manufacturer's recommended dimensions.

• Properly crimp the contact onto the cable using a suitable high-current crimping tool.

• Insert the contact into the connector housing until it locks securely.

• Verify that the contact is properly retained inside the housing.

• Install the matching connector on the opposite cable.

• Align the connector housings correctly before mating.

• Push the connectors together firmly until fully seated.

• To disconnect, separate the connector housings by pulling them apart without damaging the cable or housing.

• Ensure all connections are properly secured before applying high current.

Cable Selection:

For high-current applications, cable size should be selected according to continuous current, peak current, cable length, voltage drop, installation environment, and allowable temperature.

• #2 AWG: compatible with 68001G1 contact

• #4 AWG: compatible with 6800G2 contact

• #6 AWG: compatible with 6800G3 contact

• 4AWG cable is approximately 21.1mm² conductor cross-section.

• The supplied connector should be paired with the correct contact for the cable being used.

• Do not force an incompatible cable or contact into the connector.

High-Current Power Applications:

For battery and inverter systems, the connector can provide a convenient detachable connection between:

• Battery and inverter

• Battery and charger

• Battery and solar system

• Battery and DC load

• Battery pack and motor controller

• Battery pack and electric vehicle

• Portable power station and external load

• Battery pack and power distribution system

Safety and Installation Information:

• Confirm polarity before connecting the connector to a battery or power system.

• Anderson-style connectors do not automatically protect against reversed polarity when installed incorrectly.

• Use appropriate fuses or circuit breakers for the connected battery system.

• Select cable and contacts according to the actual current requirement.

• Ensure contacts are fully inserted and mechanically locked.

• Do not operate beyond the connector's specified electrical and temperature ratings.

• Inspect contacts and housing regularly for signs of overheating, discoloration, loose connections, or physical damage.

• High-current connections can generate significant heat if contacts are improperly crimped or undersized.

• Do not intentionally hot-plug high-current DC circuits unless the application remains within the specified disconnect/hot-plug rating.

• For battery applications, ensure the complete electrical system has appropriate overcurrent protection.

Product Details:

• Product Name: Anderson Connector 120A Plug High Quality

• Connector Rating: 120A

• Product Type: High-Current Power Connector

• Design: Genderless

• Quantity: 1 piece

• Voltage Rating: 600V AC/DC

• Hot-Plug Disconnect Rating: Up to 120A

• Cable Contact Options: #2 AWG, #4 AWG, #6 AWG

• Maximum Insulation Diameter: 11mm

• Contact Retention Force: 50lbs

• Operating Temperature: -20°C to +120°C

• Suitable For: Batteries, LiFePO4, solar, inverter, EV, 4X4, camping, caravan, industrial DC power

Package Includes:

• 1 × Anderson 120A high-current connector plug

Why Choose This Anderson 120A Connector?

BDTronics supplies this high-current Anderson connector for users who need a rugged, detachable connection between battery and power equipment. Its genderless design simplifies cable assembly, while the high-current contact system supports applications ranging from LiFePO4 battery packs and solar inverters to electric vehicles, portable power systems, camping equipment, and industrial DC power distribution.
