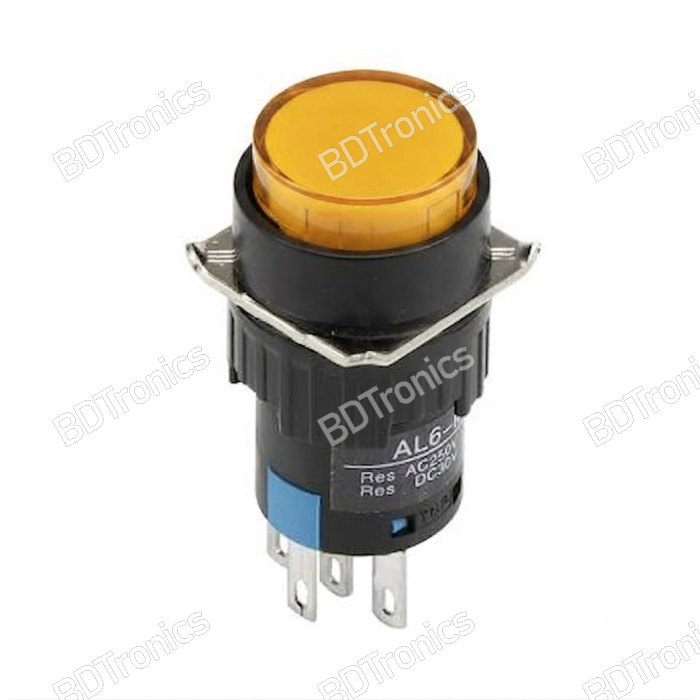

AL6 5-Pin Illuminated Push Button Switch is a high-quality panel-mount switch featuring a built-in LED indicator for clear visual status feedback. Designed for industrial control panels, arcade machines, DIY electronics, automation systems, and automotive applications, this switch combines reliable switching performance with bright LED illumination.

The AL6 push button switch is available in both momentary (push-to-make) and latching (push-to-lock) versions, allowing it to be used in a wide variety of electronic and electrical control applications. Its durable construction, compact design, and easy installation make it a popular choice for control panels, robotics, gaming systems, and custom electronic projects.

Features:

• 5-pin illuminated push button switch

• Built-in Yellow LED indicator

• Easy panel-mount installation

• Available in momentary and latching versions

• Bright LED status indication

• Durable plastic and metal construction

• Compact design for space-saving installation

• Reliable switching performance

• Suitable for low and medium power control circuits

• Long operational lifespan

• Standard mounting hole compatibility

• Easy wiring and integration

• Ideal for industrial and DIY applications

• Resistant to regular wear and repeated operation

• Suitable for indoor control systems

How It Works:

• Pressing the button activates or deactivates the connected circuit.

• The integrated LED provides visual indication of switch status.

• Momentary versions remain active only while pressed.

• Latching versions stay in position until pressed again.

• The separate LED terminals allow independent illumination control.

Applications:

• Industrial control panels

• Machine control systems

• Arcade machines

• Gaming consoles

• DIY electronics projects

• Automation systems

• Robotics projects

• Automotive modifications

• Motorcycle control panels

• Custom switch panels

• Electronic equipment controls

• Home automation projects

• Control boxes and enclosures

• Instrument panels

• Power control systems

Installation Instructions:

• Drill a suitable mounting hole in the panel.

• Insert the switch through the mounting hole.

• Secure the switch using the supplied mounting hardware.

• Connect switch terminals according to the circuit requirements.

• Connect LED terminals to the appropriate power source.

• Verify wiring before applying power.

Wiring Information:

• 2 Pins for switch contacts

• 2 Pins for LED illumination

• 1 Common Ground Pin

• Supports separate control of switching and LED indication functions

Product Instructions:

• Confirm operating voltage before installation.

• Use proper wire gauge for connected loads.

• Avoid exceeding the rated current and voltage.

• Protect the switch from excessive moisture and dust.

• Ensure secure mounting to prevent vibration damage.

• Disconnect power before wiring or maintenance.

Specifications:

• Product Type: Illuminated Push Button Switch

• Model: AL6

• Switch Type: Push Button

• Number of Pins: 5

• Contact Configuration: SPST or DPDT (Model Dependent)

• LED Color: Yellow

• Rated Current: 3A

• Rated Voltage: 250VAC

• DC Rating: 5A at 30VDC

• Mounting Hole Diameter: Approximately 16mm-19mm

• Housing Material: Plastic with Metal Components

• Switch Mechanism: Momentary or Latching

• Operating Temperature: -20°C to +80°C

• Installation Type: Panel Mount

• Indicator Type: Built-in LED

• Application: Industrial, Automotive, Electronics, Automation
