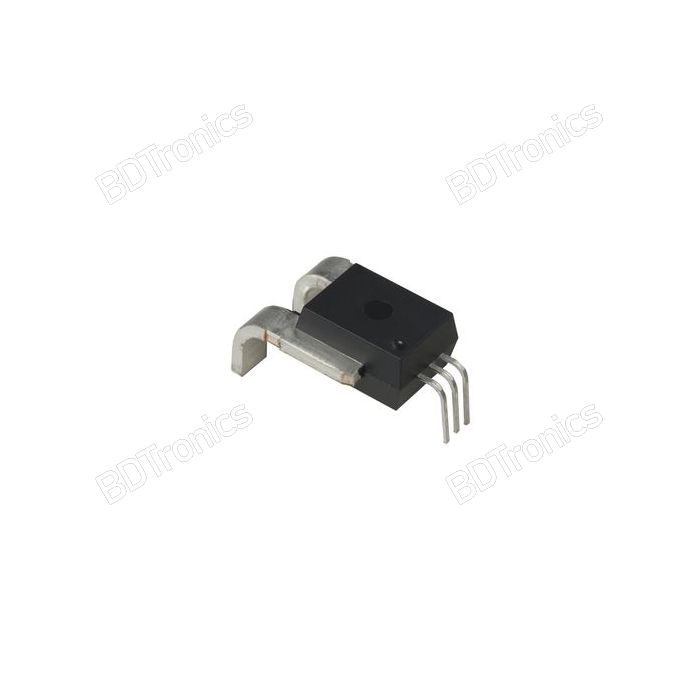

ACS758 50A ACS758LCB-050B Current Sensor

The ACS758 consists of a precision, low-offset linear Hall sensor circuit with a copper current path close to the product. The current applied through the copper current path is capable of generating a magnetic field that can be induced by the integrated Hall IC and converted to a proportional voltage.

In stock

SKU PRD-00001177
Categories: Sensors
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

The terminals of the conduction path and the sensor pins (pins 1 to 3) are electrically blasted. In this way, the ACS758 sensor 1C series can be used in applications that require electrical insulation but use opto-insulators or complex insulation techniques.
The ACS758 device is fully calibrated prior to shipment from the factory. The ACS758 series is a lead-free product. All pins are plated with fog and no lead is present in the package.



Technical Specifications:

  • Voltage Supply (VDD): 3V0 ~ 5V5
  • Abs.Max VDD: -0.5V ~ 8V0
  • Measurement range: ±50A
  • Interface: Analogue
  • Active current (mA) (typ,max): 10, 13.5
  • Conductor resistance 100µ Ohm
  • Zero current output voltage: VCC/2
  • Output offset (@25°C, High T, Low T)[3]mV: ±5, ±15, ±35
  • Sensitivity: 40mV/A
  • Noise: 10mV
  • Magnetic offset error [1]: 100mA
  • Propagation delay (Current change to op): 1µs
  • Rise time (step response 10% to 90%): 3µs
  • Error (High Temp, low Temp)[3]: -1.2%, 2%
  • Accuracy best at [2][2a]: 5V supply
  • Output load resistance: 4k7
  • Output load capacitance (max): 10nF
  • Overcurrent for 1s (@25°C,150°C): 1200A, 600A
  • Isolation Voltage (VDC or VPK, VRMS): 900V, 700Vrms
  • Package Thermal resistance: 7°C/W
  • Max junction Temp.: 165°C
  • Operating temperature: -40°C ~ 150°C

[1] Occurs when device is subjected to high or over current.
[2] For 3V3 contact AllegroMicroSystems for accuracy data.
[2a] The device is Ratiometric.
[3] High temp = 25°C ~ 150°C, Low temp = -40°C ~ 25°C.



Top Features

  • Industry-leading noise performance through proprietary amplifier and filter design techniques
  • Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high-voltage applications
  • Total output error improvement through gain and offset trim over temperature
  • Small package size, with easy mounting capability
  • Monolithic Hall IC for high reliability
  • Ultralow power loss: 100 µΩ internal conductor resistance
  • Galvanic isolation allows use in economical, high-side current sensing in high-voltage systems
  • 3.0 to 5.5 V, single supply operation
  • 120 kHz typical bandwidth
  • 3 µs output rise time in response to step input current
    Output voltage proportional to AC or DC currents
  • Factory-trimmed for accuracy
  • Stable output offset voltage
  • Nearly zero magnetic hysteresis
arrow-down
Show More

You might also be interested in...

DHT22 Digital Temperature Humidity Sensor
BDT 572.00
ACS770 50A ACS770LCB-050B Current Sensor Lower Noise
Special Price BDT 590.00 Regular Price BDT 695.00

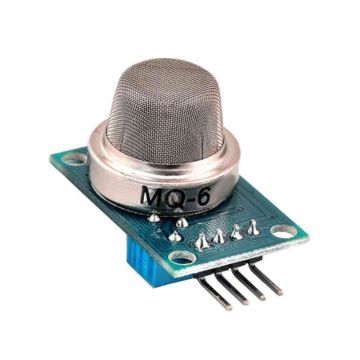

MQ6 Gas Sensor Module
