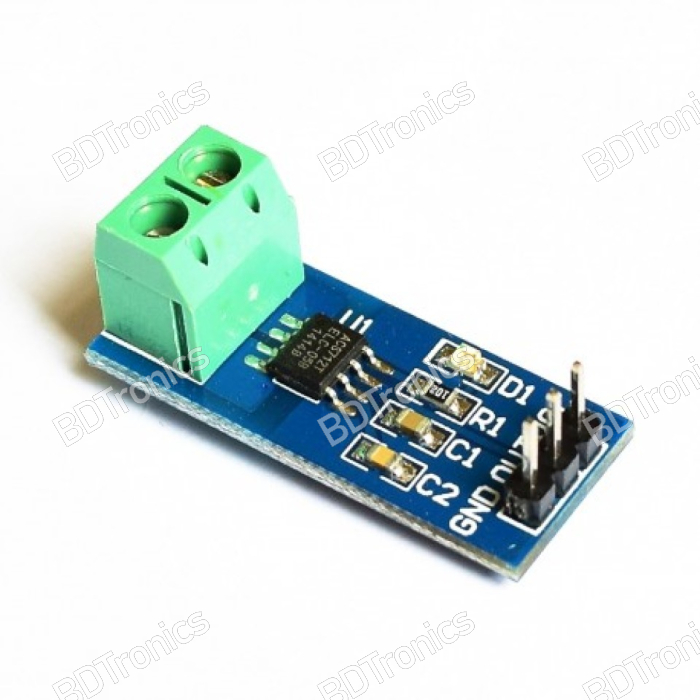

ACS712 20A Hallf Effect Current Sensor

The ACS712 current sensor is an economical solution for measuring current with hall effect principle. The sensor delivers a voltage output proportional to the current. There are several model of this sensor with maximum current measuring capability. This model can handle up to 20A of current with sensitivity level of 100mV/A. This sensor can detect current in both forward and reverse directions and gives us a value of 2.5 volts at input current 0A.

In stock

SKU PRD-00000782
Category: Sensors
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Technical Specifications:

  • 80kHz bandwith
  • 100mV/A output sensitivity
  • Low-noise analog signal path
  • Device bandwith is set via the new Filter pin
  • 1.2 mΩ internal conductor resistance
  • Total output error of 1.5% at TA = 25°C
  • Stable output offset voltage.
  • Near zero magnetic hysteresis
arrow-down
Show More

You might also be interested in...

Reed Switch Magnetic Sensor Module
BDT 112.00
LJ12A3-4-Z/BX Inductive Proximity Sensor NPN NO DC 6-36V
Special Price BDT 495.00 Regular Price BDT 544.00

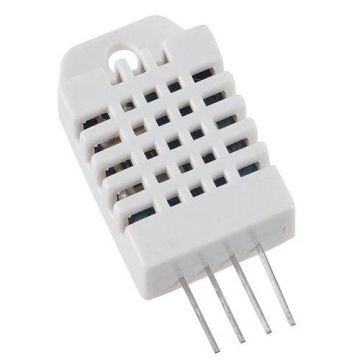

DHT22 Digital Temperature Humidity Sensor
