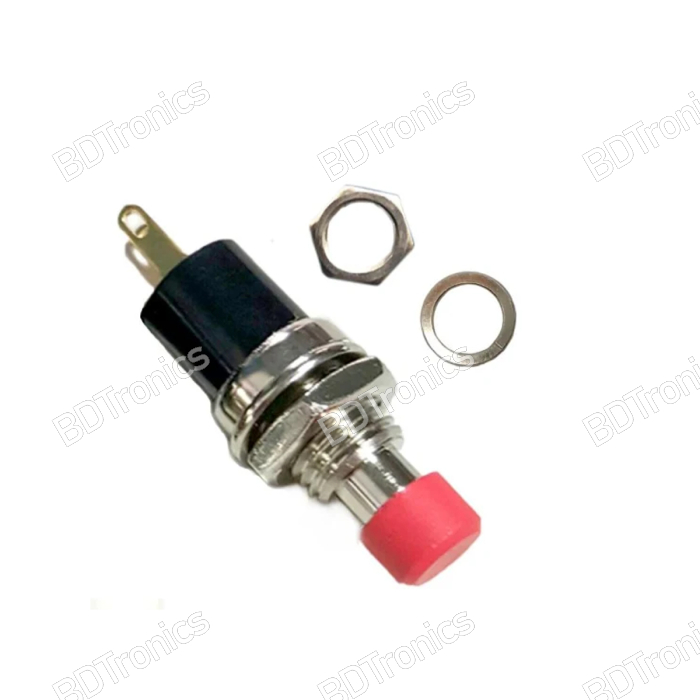

This 7mm threaded 2-pin metal momentary push button switch is a compact and durable SPST N/O switch designed for low-voltage electronic projects. Featuring a red round cap with a smooth momentary action, it activates when pressed and returns to the OFF state when released. Ideal for DIY electronics, control panels, prototyping, Arduino projects, robotics, and small appliances that require a reliable momentary input signal. The metal body ensures long-lasting performance, while the included locking nut and washer provide secure mounting on enclosures or panels.

Features:

• Momentary action: press to turn ON, release to turn OFF

• SPST (Single Pole Single Throw) normally open configuration

• Mini push button with red cap for clear visibility

• Strong metal threaded body for secure panel mounting

• Includes locking nut and washer for easy installation

• Suitable for low-voltage DC electronics and control circuits

• Smooth tactile response ideal for frequent press operations

• Compact size perfect for tight spaces in DIY or commercial projects

• Not designed for foot switch or heavy-load switching

• High durability for long-term use in electronic builds

Specifications:

• Button color: Red

• Type: Momentary SPST N/O

• Button diameter: 5.40mm / 0.21″

• Thread size: 7mm

• Hole mounting diameter (2 holes): 3.8mm / 0.15″

• Pin length: 6mm / 0.23″

• Body length (excluding pins): 21.65mm / 0.85″

• Terminals: 2-pin

• Material: Metal body, plastic button

• Rating voltage: DC 50V / 0.5A

• Includes: 1 pc switch, metal locking nut, washer

Usage Instructions:

• Drill a 7mm hole in the panel or project enclosure

• Insert the switch through the hole from the front side

• Secure with the included nut and washer

• Connect the two pins to the circuit’s input signal and ground (or as required)

• Use in low-voltage DC projects only up to the rated 50V / 0.5A

• Test continuity to ensure proper ON (pressed) and OFF (released) function

Suitable Applications:

• DIY electronics and prototyping

• Arduino and Raspberry Pi input control

• Robotics and automation triggers

• Power reset button for small devices

• Signal input for controllers and panels

• Model making and hobby projects

• Low-voltage equipment control switches
