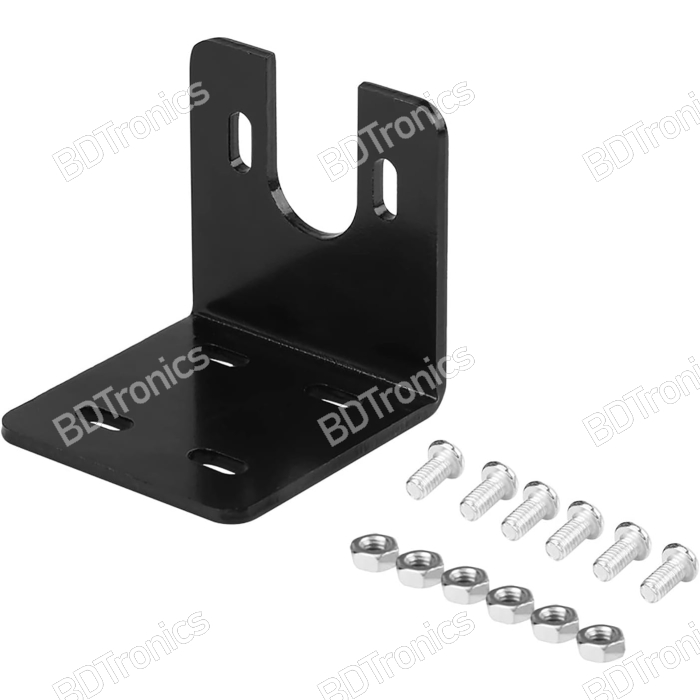

775 Motor Fixed Base Bracket is a heavy-duty L-shaped motor mounting bracket specially designed for 775 series DC motors. Manufactured from durable metal with a sturdy 3mm thick construction, this motor mount provides stable and secure installation for DC motors in DIY machinery, robotics, CNC projects, drilling machines, automation equipment, and various mechanical applications.

The bracket features a precision-machined U-shaped center slot and multiple mounting holes, allowing easy motor installation and alignment. Its robust design helps minimize vibration and improves motor stability during operation.

Features:

• Specially designed for 775 DC motors

• Heavy-duty metal construction

• Durable black finish

• Strong 3mm thick mounting plate

• L-shaped bracket design for secure support

• Precision motor mounting holes

• Easy motor installation and removal

• Excellent vibration resistance

• High mechanical strength

• Corrosion-resistant surface

• Suitable for DIY and industrial projects

• Stable motor positioning

• Compact and practical design

• Long service life

• Includes mounting screws and nuts

Applications:

• 775 DC motor mounting

• Mini drilling machines

• DIY power tools

• CNC machine projects

• Robotics systems

• Automation equipment

• Motorized mechanisms

• Small machine building

• Woodworking machinery

• Educational engineering projects

• Conveyor systems

• DIY electronics and mechanical projects

• Electric vehicle prototypes

• Hobby motor assemblies

• Custom machinery construction

Advantages:

• Provides secure motor fixation

• Reduces motor vibration during operation

• Improves mechanical stability

• Easy installation and maintenance

• Compatible with standard 775 motors

• Durable and long-lasting construction

• Supports high-speed motor applications

• Suitable for professional and DIY use

How to Use:

• Align the 775 motor with the bracket mounting holes.

• Insert M4 screws through the motor mounting holes.

• Secure the motor using the supplied nuts and screws.

• Mount the bracket onto the desired surface using appropriate fasteners.

• Ensure all screws are tightened properly before operation.

• Verify motor alignment before connecting power.

Product Instructions:

• Confirm compatibility with your motor before installation.

• Use proper mounting hardware for the application.

• Ensure the mounting surface is stable and rigid.

• Periodically inspect screws for tightness.

• Avoid excessive mechanical stress on the bracket.

• Store in a dry environment when not in use.

Specifications:

• Product Type: DC Motor Mounting Bracket

• Compatibility: 775 Series DC Motors

• Bracket Style: L Shape Motor Fixed Base

• Color: Black

• Material: Metal

• Vertical Surface Thickness: 3mm

• Vertical Surface Height: 40mm

• Vertical Surface Width: 50mm

• Bottom Plate Length: 52mm

• Bottom Plate Width: 50mm

• Bottom Plate Thickness: 3mm

• U Center Slot Diameter: Approximately 17.5mm

• Motor Fixing Hole Diameter: 4mm

• Compatible Screw Size: M4

• Weight: 100g

• Mounting Type: Screw Mount

Package Includes:

• 1 x 775 Motor Fixed Base Bracket

• 6 x Nuts

• 6 x Screws
