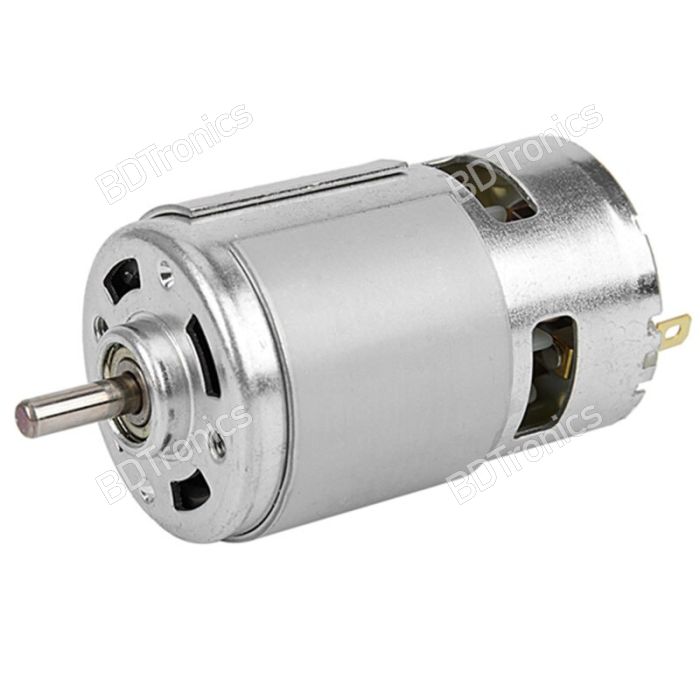

The 775 High Speed High Torque 12V DC Motor is a powerful and durable brushed DC motor widely used in DIY machinery, robotics, power tools, pumps, and mechanical automation projects. Designed for high performance and reliability, this motor delivers strong torque and high rotational speed, making it suitable for demanding applications that require continuous operation and stable output.

With a no-load speed of up to 10,000 RPM and strong load performance around 8800 RPM, the 775 motor provides efficient power delivery for drilling machines, electric cutters, grinders, mini lathes, water pumps, electric vehicles, and DIY mechanical systems. Its solid metal body construction ensures excellent durability, while the 5mm shaft allows easy coupling with gears, pulleys, and mechanical assemblies.

This motor is widely used by engineers, robotics enthusiasts, mechanics, and electronics hobbyists in Bangladesh for building custom machines and automation systems requiring high torque and speed.

Features:

• High torque brushed DC motor designed for heavy-duty applications

• Operates efficiently on 12V DC power supply

• High rotational speed up to 10,000 RPM without load

• Strong torque performance under load conditions

• Durable metal housing for long-lasting performance

• 5mm motor shaft compatible with couplers, gears, and pulleys

• Suitable for drilling machines, grinders, pumps, and DIY machinery

• Stable performance for robotics and automation projects

• Compact industrial design for easy mounting

• Multiple mounting holes for secure installation

• Reliable motor performance for continuous operation

Specifications:

• Motor Type: 775 Brushed DC Motor

• Operating Voltage: 12V DC

• No-load Current: 1A

• Stall Current: 2.6A

• No-load Speed: 10,000 RPM

• Speed Under Load: Approx. 8800 RPM

• Motor Diameter: 42 mm

• Motor Length: 66.5 mm

• Shaft Diameter: 5 mm

• Shaft Length: 16 mm

• Motor Step Diameter: 17.5 mm

• Motor Bench Height: 4.5 mm

• Motor Tail Step Height: Approx. 4.5 mm

• Motor Tail Shaft Length: Approx. 6.5 mm

• Mounting Hole Pitch: Approx. 29 mm

• Mounting Hole Size: M4 screw

• Motor Weight: Approx. 350 g

How to Use:

• Connect the motor terminals to a 12V DC power supply

• Ensure the power supply can provide sufficient current for startup and load

• Mount the motor securely using M4 screws on the mounting holes

• Attach gears, pulleys, blades, or couplers to the 5mm shaft as required

• Use a motor controller or PWM speed controller for adjustable speed

• Avoid operating continuously under stall conditions to prevent overheating

• Use proper insulation and wiring when integrating into machines or robotics projects

Applications:

• DIY drilling machines and mini drill tools

• Electric cutters and grinders

• Water pumps and air pumps

• Robotics and automation systems

• Mini lathe machines and mechanical tools

• Electric vehicles and mobility projects

• Conveyor systems and mechanical drives

• Engineering prototypes and educational projects

• DIY power tools and workshop machinery
