The ZVS Induction Heating Power Supply Module is designed to power induction heating coils for various heating applications. Ideal for users with technical expertise, this module provides a reliable solution for heating small objects via eddy currents. It works with a range of voltages (DC5V-12V) and is capable of delivering a maximum power of 120W when operating at 12V. The module includes the necessary heating coil, making it perfect for DIY projects, metalworking, or hobbyist heating applications. However, it requires some technical knowledge for setup, especially for soldering and ensuring proper connections.

Features:

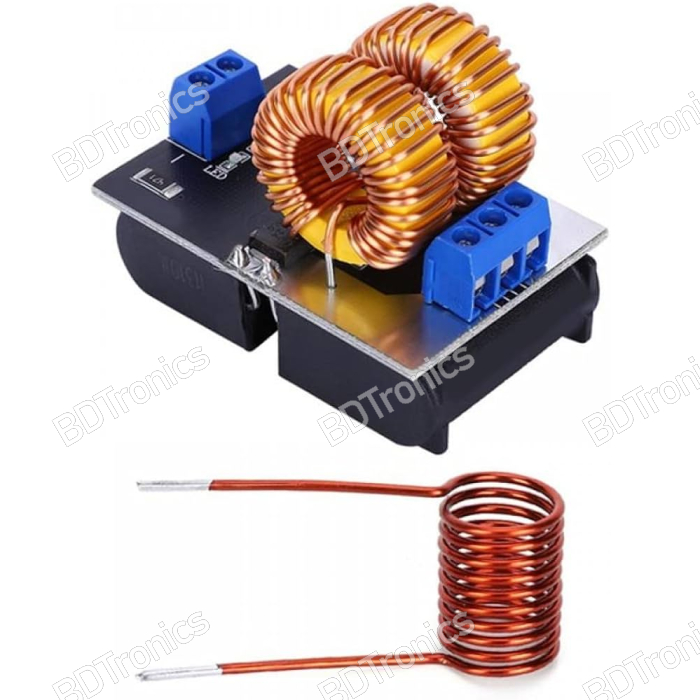

• ZVS Power Supply Module: Includes the induction heating power supply module with a built-in heating coil.

• Input Voltage Range: Works with DC input voltages from 5V to 12V (Note: Module is not guaranteed to work outside this range).

• Maximum Power Output: 120W at 12V with eddy-current heating for efficient energy transfer.

• Compact Design: The module’s dimensions (5.5 x 4 x 2 cm) make it a space-efficient solution for various heating applications.

• Heating Coil Included: The kit includes a heating coil (7.5 cm length, 2.8 cm width) to directly apply heat to your object.

Specifications:

• Input Voltage: DC 12V (20A)

• Module Dimensions: 5.5 x 4 x 2 cm (L x W x H)

• Product Weight: 119g

• Coil Size: Length: 7.5 cm, Width: 2.8 cm

• Power Output: Maximum 120W (12V eddy-current heating)

Important Notes:

• Technical Expertise Required: This module requires hands-on skills and knowledge of electrical circuits, including soldering and correctly wiring the power supply.

• Voltage Range: The working voltage is DC5V-12V. The module is designed to operate within this range, but connecting to higher or lower voltages could damage the components.

• Correct Assembly: Ensure all components are correctly soldered and connected. The power lines should be correctly wired (positive and negative poles). Do not power on the module without a load connected, as this may cause damage due to excessive current.

• Heating Coil Application: The object to be heated should ideally fit within 1/3 to 1/2 of the inner diameter of the heating coil, with a maximum width of 2/3 of the coil's diameter. The diameter of the heated object should ideally be ≤ 20 mm for optimal performance. Larger objects may be difficult to heat effectively.

Safety Precautions:

• The module can generate significant heat, and both the coil and heated object will become very hot. Ensure proper cooling and avoid handling when in operation.

• Cooling Recommendation: For long-term use, it is advised to use copper tubes as coils and consider adding water cooling to prevent overheating of the coil.

Package Includes:

• 1 x ZVS Induction Heating Power Supply Module

• 1 x Heating Coil
