Brushless 24V DC Gear Motor Full Metal 155kgf-cm BLDC Planetary Gear 42GP-4260
Order before 12.00PM

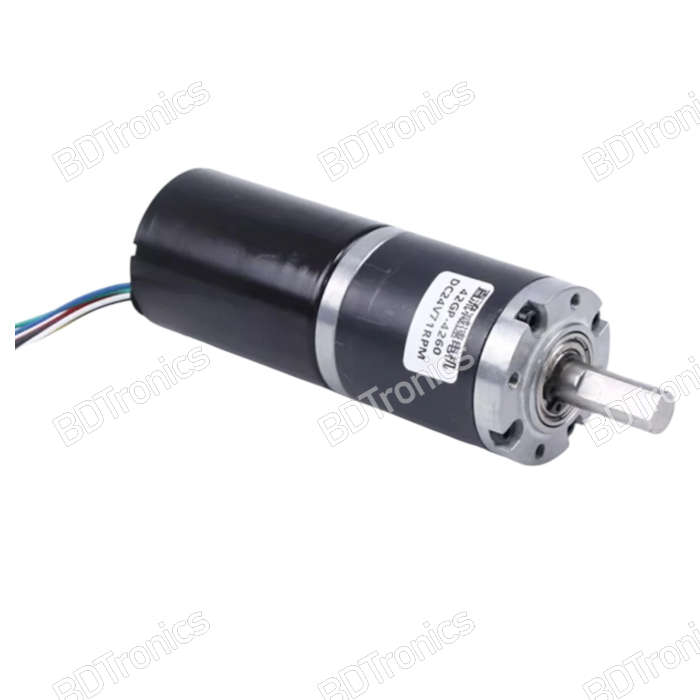

The 42mm Planetary Brushless Gear Reduction Motor (Model: 42GP-4260) is a high-performance BLDC planetary gear motor designed for applications requiring large torque, stable operation, low noise, and extended service life. With a torque range of 0.8kgf.cm to 155kgf.cm and speeds from 7 RPM to 1351 RPM, this motor is ideal for automation equipment, robotics, smart devices, and industrial machinery.
Built with brushless DC technology, this planetary gear reduction motor ensures high efficiency, long working hours (up to 15,000 hours), and minimal maintenance compared to traditional brushed motors. Its compact 42mm diameter design makes it versatile and easy to integrate into projects where power, reliability, and durability are crucial.
Features:
-
High Torque Performance – Delivers up to 155kgf.cm torque, perfect for demanding applications.
-
Wide Voltage Range – Compatible with 12V and 24V systems.
-

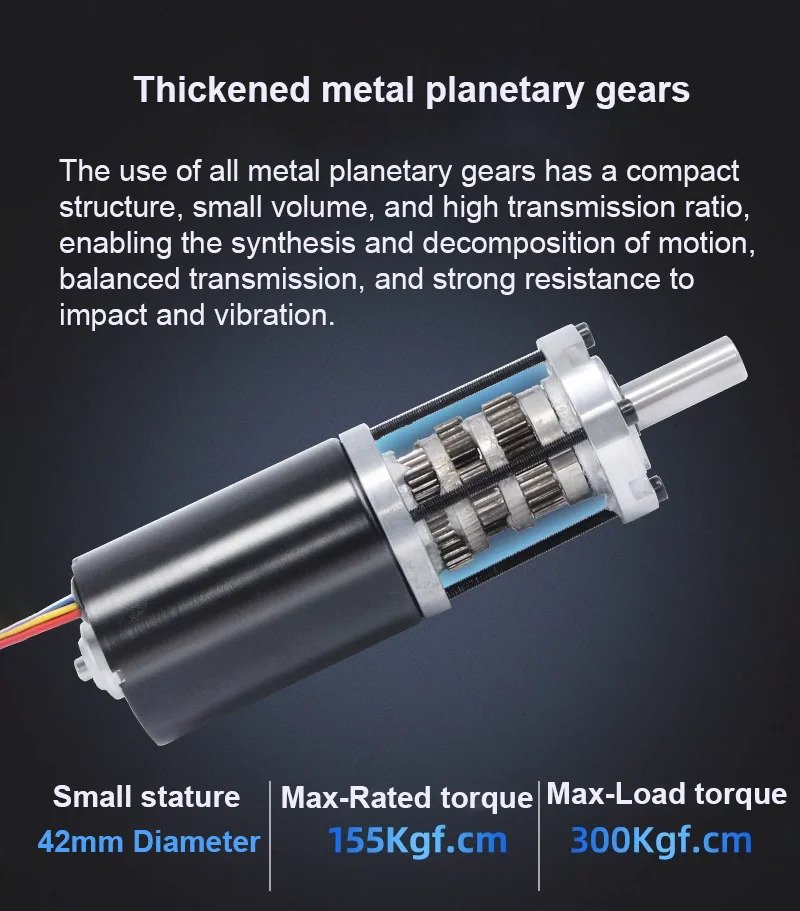

Planetary Gear Design – Provides high reduction ratio, stable transmission, and smooth operation.
-
Long Service Life – Up to 15,000 working hours with brushless motor efficiency.
-
Low Noise & Smooth Running – Optimized for quiet operation in precision equipment.
-
Compact Size – 42mm diameter motor with a 10mm output shaft for universal use.
-
Energy Efficient – Low power loss with high motor efficiency.
Specifications:
-
Product Name: 42mm Planetary Brushless Gear Reduction Motor
-
Model: 42GP-4260
-
Motor Diameter: 42mm
-
Output Shaft Diameter: 10mm
-
Output Shaft Length: 25mm
-
Voltage Options: 12V / 24V
-
Idle Speed Range: Check the table below
-
Rated Torque: 0.8kgf.cm – 155kgf.cm
-
Working Hours: 15,000+ hours
-

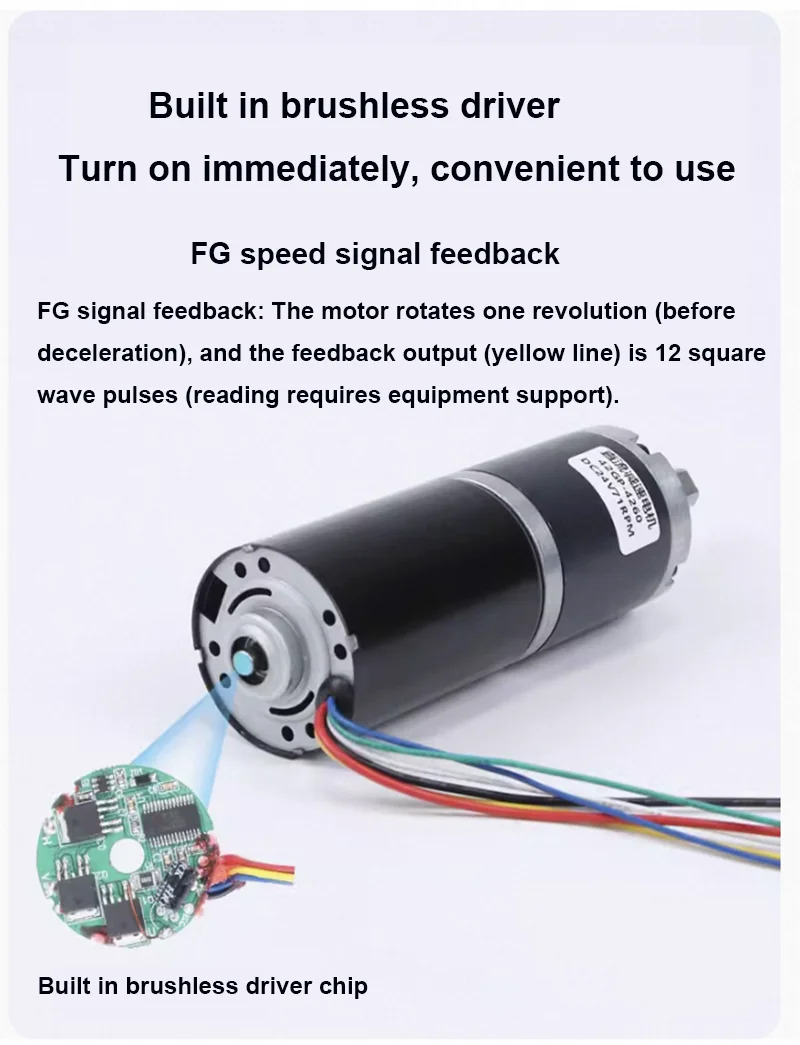

Default Wiring: 5-wire connection
Rated Voltage: 24V DC
Input Speed: 5000 RPM
Motor Type: Brushless DC (BLDC)
Gear Type: Full Metal Planetary Gearbox
Model Comparison:
| Gear Ratio (i) | 3.7 | 5.18 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 721 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No-Load Speed (RPM) | 1351 | 965 | 357 | 263 | 185 | 98 | 70 | 50 | 36 | 26 | 19 | 14 | 10 | 7 |
| No-Load Current (mA) | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 |
| Rated Speed (RPM) | 1080 | 800 | 280 | 210 | 150 | 80 | 55 | 40 | 29 | 22 | 15 | 11 | 8 | 6 |
| Rated Current (A) | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.25 | 1.1 |
| Rated Torque (kgf·cm) | 1.2 | 2 | 3.5 | 5 | 8 | 13 | 25 | 45 | 65 | 85 | 100 | 120 | 135 | 155 |
| Rated Input Power (W) | 31.2 | 31.2 | 31.2 | 31.2 | 31.2 | 31.2 | 31.2 | 31.2 | 31.2 | 31.2 | 31.2 | 31.2 | 30 | 26.4 |
| Max Load Torque (kgf·cm) | 3.7 | 6.2 | 10.8 | 15 | 25 | 40 | 77 | 130 | 130 | 130 | 130 | 130 | 130 | 130 |
| Max Load Current (A) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 3.8 | 2.6 | 2.0 | 1.7 | 1.4 | 1.25 | 1.1 |
Applications:
-
Robotics and automation systems
-
Smart home devices and appliances
-
Electric locks and precision instruments
-
Medical equipment and laboratory devices
-
Industrial automation machinery
-
DIY engineering projects requiring low-speed high-torque motors
Why Choose This Motor?
This 42mm BLDC planetary gear motor offers the perfect balance of compact design, high torque, energy efficiency, and long-lasting performance. Unlike conventional brushed motors, it requires minimal maintenance, operates at lower noise levels, and supports continuous heavy-duty applications.
