3S 11.1V Lithium-Ion Battery Capacity Indicator Module
In stock
Order before 12.00PM

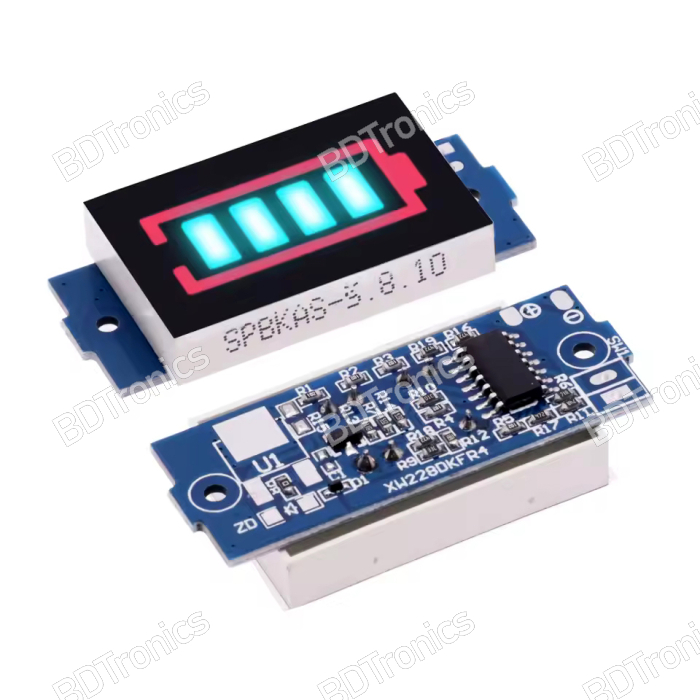

This compact battery level indicator module is designed to visually display the charge level of multi-cell battery packs using a segmented LED bar. It is particularly well-suited for 3S (11.1V) lithium-ion battery.
The module features a red outline to indicate the battery shape and green LED segments that progressively light up based on the current battery voltage. It is ideal for portable electronics, battery-powered tools, and DIY energy storage systems where quick visual feedback of battery charge status is needed.
Features:
-
Battery Compatibility: Lithium-ion, Lead-Acid, and NiMH battery packs
- Voltage Thresholds: Segment activation based on nominal cell voltage
-
Visual Display: Red battery outline with green LED level indicators
-
Compact Size: Easily mounts onto enclosures or dashboards
-
Low Power Consumption: Efficient voltage detection without high drain
Specifications:
| Parameter | Specification |
|---|---|
| Compatible Battery Types | Li-Ion, Lead Acid, NiMH |
| Default Configuration | 3S (11.1V nominal) |
| Voltage Range | Based on number of cells × 1S voltage level |
| Display Type | 4-segment LED with red battery outline |
| Segment Illumination Thresholds | (Here, N = 3) |
| – No Segments | Voltage < (3.3V × N) |
| – 1 Segment | Voltage ≥ (3.3V × N) |
| – 2 Segments | Voltage ≥ (3.5V × N) |
| – 3 Segments | Voltage ≥ (3.7V × N) |
| – 4 Segments | Voltage ≥ (3.9V × N) |
| Display Dimensions | ~31.4 mm × 20 mm |
| Module Dimensions | ~43.8 mm × 20 mm × 8.7 mm |
| Mounting Hole Diameter | ~2.0 mm |
| Mounting Hole Spacing | ~37 mm (center to center) |
Applications:
-
Battery-powered electronics and handheld devices
-
DIY lithium battery packs and power banks
-
Electric bikes and scooters
-
Portable power supplies and solar energy systems
-
Robotics and embedded systems
