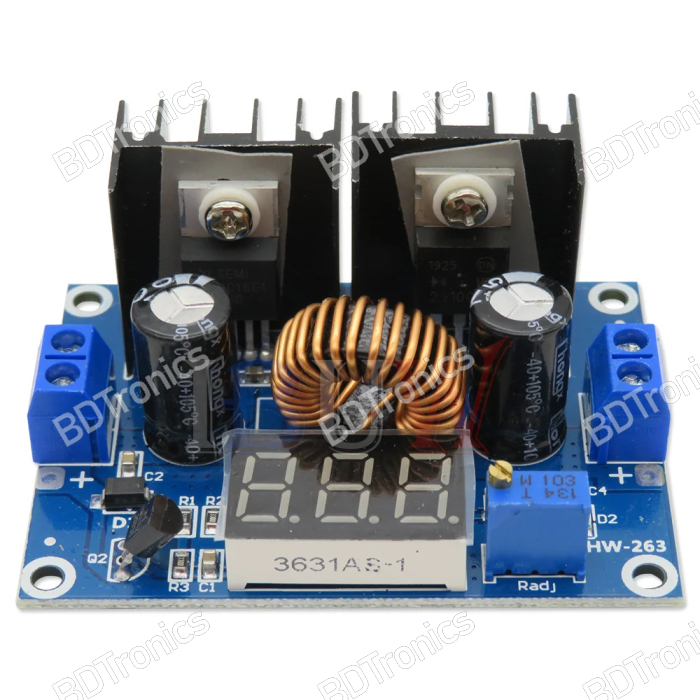

The XH-M404 is a high-efficiency, non-isolated DC-DC step-down (buck) converter module based on the XL4016E1 switching regulator chip. It converts an input voltage ranging from 4V to 40V DC down to an adjustable output of 1.25V to 36V DC. This module supports up to 8A output current with an external cooling fan and delivers a maximum power of 200W, making it suitable for a wide range of high-power DC applications.

This module features digital PWM control, excellent efficiency (up to 94%), and integrated safety protections including current limiting, over-temperature, and short-circuit protection with automatic recovery. A built-in potentiometer allows for precise voltage adjustment using a multimeter for reference.

Note: This product may ship as either XH-M404 or HW-263. Both variants offer the same functionality and performance.

Features:

• Wide input voltage range: 4–40V DC

• Adjustable output voltage: 1.25–36V DC

• Supports up to 8A output with proper cooling

• High power capacity: up to 200W

• High efficiency: up to 94%

• Integrated protections: over-current, thermal, short-circuit

• Simple voltage adjustment via onboard potentiometer

• Low quiescent current (~6mA)

• Digital PWM control

• Compact design with easy wiring

Specifications:

• Input Voltage: 4 to 40V DC

• Output Voltage: 1.25 to 36V DC (adjustable)

• Maximum Output Current: 8A (with adequate cooling)

• Maximum Output Power: 200W

• Efficiency: Up to 94%

• Switching Frequency: 180 kHz

• Module Dimensions: 63 mm × 46 mm × 25 mm

• Weight: 45 g

• Shipping Dimensions: 7 cm × 5 cm × 3 cm

• Shipping Weight: 0.05 kg

Connection Instructions:

• Input Terminals: IN+ (positive), IN– (negative)

• Output Terminals: OUT+ (positive), OUT– (negative)

• Voltage Adjustment:

  • Clockwise to increase output voltage

  • Counter-clockwise to decrease output voltage

  • Monitor using a multimeter for accurate setting

Package Includes:

• 1 × XH-M404 DC-DC Step Down Voltage Regulator Module (XL4016E1-based)

Applications:

• Battery charging systems

• Adjustable power supplies

• Motor and LED drivers

• DIY electronics projects

• Industrial and automotive power management
