The 24V 20A All-in-One Smart Battery Charger is a high-power automatic battery charger designed for 24V LiFePO4, Lead Acid, GEL, AGM and SLA battery systems. BDTronics offers this smart battery charger with Bluetooth App support for convenient monitoring of charging voltage, charging current, battery status and charging progress from a compatible smartphone.

BDTronics 24V 20A battery charger uses a smart CC/CV (Constant Current / Constant Voltage) charging algorithm to provide controlled and efficient charging for high-capacity battery banks. With up to 480W charging power and claimed efficiency of ≥95%, it is suitable for 24V battery applications including solar energy storage, UPS backup systems, emergency power systems, workshops, battery banks and other DC power applications.

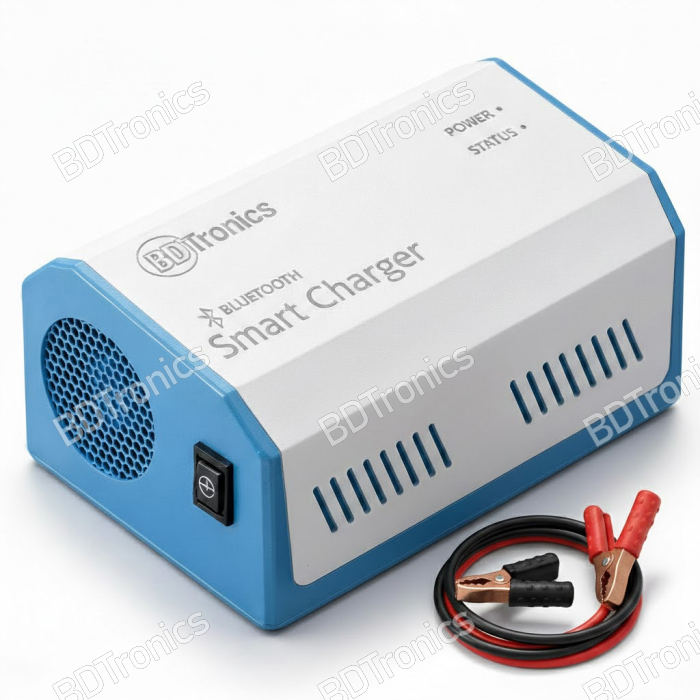

The charger combines automatic charging control, Bluetooth monitoring, LED charging indicators, audio charging-complete alerts and multiple protection functions in a compact enclosure. Heavy-duty crocodile clips and an EU AC plug are included for convenient battery connection.

Features:

• 24V 20A high-power smart battery charger

• Maximum charging power up to 480W

• Bluetooth App support for battery charging monitoring

• Real-time charging voltage monitoring

• Real-time charging current monitoring

• Battery charging status monitoring through smartphone

• Smart CC/CV constant-current and constant-voltage charging algorithm

• Compatible with 24V LiFePO4 battery systems

• Supports 24V Lead Acid batteries

• Supports GEL batteries

• Supports AGM batteries

• Supports SLA battery systems

• 29.2V charging cutoff for 24V 8S LiFePO4 battery systems

• Claimed charging efficiency of ≥95%

• Automatic charging control

• Automatic full-charge control

• Red LED charging indicator

• Green LED full-charge indicator

• Audio beep notification when charging is complete

• Overvoltage protection

• Overcurrent protection

• Overload protection

• Short-circuit protection

• Heavy-duty crocodile clips included

• Battery lug connection support

• EU AC power plug included

• Compact portable design

• Suitable for home, laboratory, workshop and battery maintenance applications

• Hot-plug support according to supplied specifications

• Suitable for high-capacity 24V battery banks

• Useful for solar battery charging and backup power applications

Smart CC/CV Charging:

• Uses a Constant Current (CC) and Constant Voltage (CV) charging method.

• During the constant-current stage, the charger supplies controlled charging current to the connected battery.

• As battery voltage approaches the programmed charging voltage, the charger transitions toward constant-voltage operation.

• Charging current gradually decreases as the battery approaches its full-charge condition.

• Automatic charging control helps prevent uncontrolled continuous charging after reaching the programmed charging condition.

• The specified LiFePO4 charging cutoff is 29.2V, suitable for an 8S 24V-class LiFePO4 battery configuration when supported by the battery manufacturer.

• CC/CV charging is commonly used for rechargeable battery systems requiring controlled current and voltage charging.

LiFePO4 Battery Charging:

• Designed for 24V-class LiFePO4 battery packs using an appropriate 8S configuration.

• The specified 29.2V charging cutoff corresponds to 3.65V per cell for an 8S LiFePO4 battery pack.

• 20A charging current can provide relatively fast charging for appropriately rated 24V LiFePO4 batteries.

• Battery capacity and BMS current rating should be suitable for a maximum 20A charging current.

• Check the battery manufacturer's recommended charging voltage and charging current before operation.

• Ensure the battery BMS supports the selected charging profile.

• Do not use a LiFePO4 charging profile with a battery chemistry that requires a different charging voltage.

Lead Acid, AGM, GEL and SLA Battery Charging:

• Supports compatible 24V Lead Acid battery systems.

• Suitable for supported AGM battery configurations.

• Compatible with GEL battery systems when the charger profile is appropriate.

• Supports SLA battery systems according to the charger's available charging characteristics.

• Always select or configure the appropriate battery type where battery-mode selection is provided.

• Use a charging profile appropriate for the specific battery chemistry.

• LiFePO4, Lead Acid, AGM and GEL batteries have different charging requirements and should not be treated as interchangeable.

Bluetooth App Monitoring:

• Connect the charger to a compatible smartphone through Bluetooth where supported by the charger and application.

• Monitor battery charging voltage from the mobile application.

• Monitor charging current in real time.

• View battery charging status through the smartphone application.

• Monitor charging progress without repeatedly checking the charger display.

• Available Bluetooth functions may depend on the compatible application and charger firmware.

• Bluetooth communication operates within the supported wireless range of the charger and smartphone.

Charging Indicators:

• Red LED: Indicates active charging according to the supplied specifications.

• Green LED: Indicates full-charge status.

• Audio Beep: Provides an audible notification when charging is complete.

• Bluetooth App: Provides additional charging information where supported.

• LED and audio indicators provide a convenient way to identify the current charging condition without relying exclusively on the mobile application.

Built-in Protection Functions:

• Overvoltage Protection: Helps protect the charger and connected battery system against excessive voltage conditions.

• Overcurrent Protection: Helps limit excessive output charging current.

• Overload Protection: Helps protect the charger during abnormal operating conditions.

• Short-Circuit Protection: Helps protect the output circuit if the battery connection or charging output is accidentally shorted.

• Protection functions are intended to reduce the risk of damage during abnormal electrical conditions, but correct battery connection and charging configuration remain essential.

How to Use:

• Confirm that the battery is a compatible 24V battery system.

• Identify the battery chemistry before connecting the charger.

• Verify the battery's recommended charging voltage and maximum charging current.

• For 24V LiFePO4 batteries, confirm that the battery uses a suitable 8S configuration and supports a 29.2V charging cutoff.

• Inspect the battery terminals, charger cables and crocodile clips for damage or loose connections.

• Connect the positive crocodile clip or battery lug to the battery positive terminal.

• Connect the negative crocodile clip or battery lug to the battery negative terminal.

• Confirm correct polarity before applying AC power.

• Connect the charger to the battery before connecting the AC input.

• Connect the charger to a suitable AC 110–220V, 50/60Hz power source.

• Select the appropriate supported battery charging mode if the charger provides battery-type selection.

• Start the charging process.

• Monitor charging voltage, current and charging status through the Bluetooth App where available.

• The red LED indicates charging operation.

• When the green LED and audio notification indicate full charge, charging is complete according to the charger's control system.

• Disconnect the AC power before removing the battery connections.

• Remove the battery clips only after the AC input has been disconnected.

• Avoid reversing battery polarity.

• Do not connect incompatible batteries or batteries with charging specifications outside the charger's supported range.

Recommended Applications:

• 24V LiFePO4 battery charging

• 24V Lead Acid battery charging

• 24V AGM battery charging

• 24V GEL battery charging

• 24V SLA battery charging

• Solar energy storage battery charging

• 24V UPS battery charging

• Backup power systems

• Emergency power battery banks

• DC energy storage systems

• Electric vehicle battery applications where the battery charging specifications are compatible

• Workshop battery charging

• Home energy storage

• Electronics and electrical testing environments

• High-capacity rechargeable battery systems

Specifications:

• Product Type: All-in-One Smart Battery Charger

• Rated Battery System: 24V

• Maximum Charging Current: 20A

• Maximum Charging Power: 480W

• Charging Algorithm: CC/CV

• Charging Method: Constant Current / Constant Voltage

• LiFePO4 Charging Cutoff: 29.2V

• Input Voltage: AC 110–220V

• Input Frequency: 50/60Hz

• Claimed Efficiency: ≥95%

• Supported Battery Types: LiFePO4, Lead Acid, GEL, AGM, SLA

• Battery Connection: Heavy-Duty Crocodile Clips / Battery Lugs

• AC Plug: EU Plug

• Bluetooth: Supported

• Mobile App: Supported

• Charging Indicator: Red LED

• Full Charge Indicator: Green LED

• Charging Completion Alert: Audio Beep

• Protection: Overvoltage, Overcurrent, Overload, Short Circuit

• Hot Plug Support: Yes

• Color: White

• Approximate Weight: 1200g ±5g

• Stated Dimensions: 300 × 250 × 200mm

Why Choose BDTronics:

• BDTronics provides this 24V 20A smart battery charger for customers looking for a high-current charger with Bluetooth monitoring in Bangladesh.

• Suitable for 24V battery systems used in solar, UPS, backup power and energy storage applications.

• Bluetooth monitoring makes it easier to observe charging voltage, current and charging status from a compatible smartphone.

• 20A maximum charging current is suitable for appropriately rated high-capacity 24V battery systems.

• CC/CV charging provides controlled charging throughout the charging cycle.

• Multiple protection functions help provide safer operation during abnormal electrical conditions.

• Included heavy-duty crocodile clips allow convenient connection for battery charging and testing.

• BDTronics supplies electronics, battery, solar and power-electronics products for customers across Bangladesh.
