Features:

• 8-Types Readings: -The energy meter display Current (A), Voltage (V), Watts (W), Amp-hours (Ah), Watt-hours (Wh), Peak Amps (Ap), Minimum Volts (Vm) and Peak Watts (Wp).

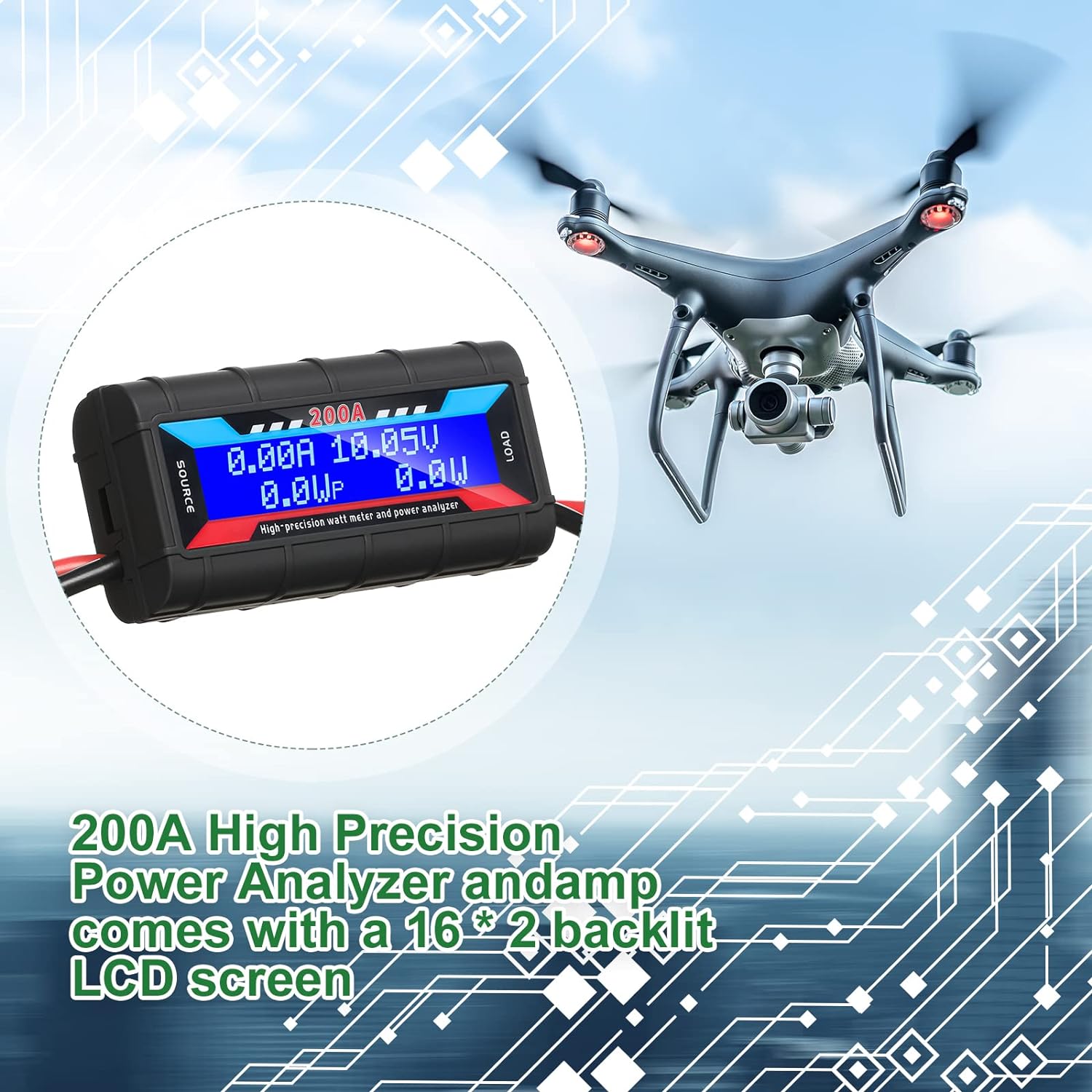

• LCD Display: - A digital display with back-lit shows all the measured real-time readings which are visible in dark surroundings
• High Precision: - Measures 0-200 A with resolution 0.01 A, measures 0-60V with resolution 0.01, measure 0 - 6554W with resolution 0.1W, measure 0 - 65Ah with resolution 0.001Ah, measure 0 - 6554Wh with resolution 0.01Wh.
• Note: - Make sure to read the manual first before making connections as incorrect wiring can lead to product damage.
• Attention: If you're utilizing the device to inspect products operating on less than 8V, the meter display will remain unlit. In such cases, you can utilize an external power supply, ranging from DC 8V to 60V, to illuminate the display.

Specifications:

• Operates from 4.8-60V (0V with optional auxiliary battery)
• Backlit LCD Model: 16x2Product
• Size:85x42x25mm
• Weight:82g.
• Test Range：
• 0-200 A, resolution 0.01A
• 0-60 V, resolution 0.01V
• 0-6554 W, resolution 0.1W
• 0-65 Ah, resolution 0.001Ah
• 0-6554 Wh, resolution 0.01Wh

Package list:

• 1 x 200A Watt Meter
• 1 x Manual

»
