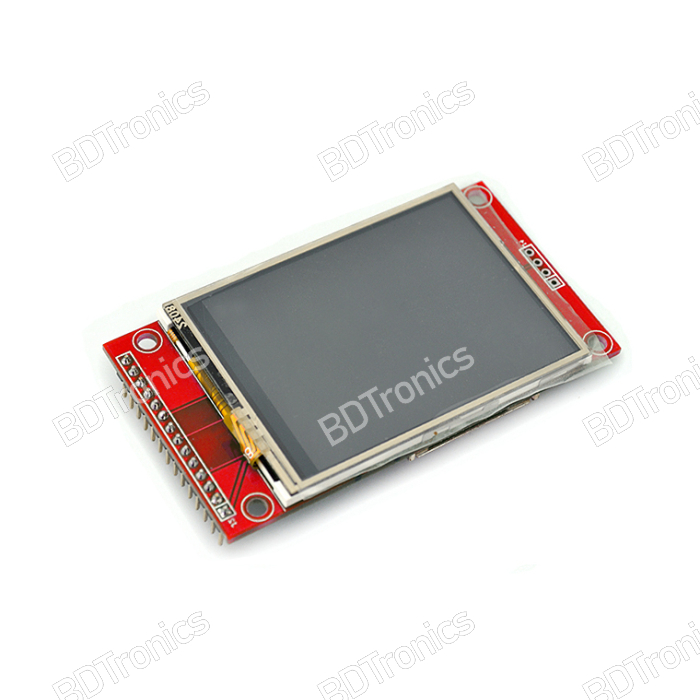

This 2.4-inch SPI TFT LCD Screen Module is an excellent choice for DIY enthusiasts and embedded system developers. It features a compact design, a vivid 240x320 resolution, and a resistive touch panel. The integrated SPI interface minimizes the number of pins required, making it ideal for microcontroller projects with limited GPIO availability. Additionally, the module includes an SD card slot for added functionality, enabling dynamic content display.

Features:

1. High-Resolution Display:

   • 2.4-inch TFT LCD with a resolution of 240x320 pixels for clear and colorful visuals.

2. Compact Design:

   • Integrated SPI interface reduces pin usage to just 5 control pins.

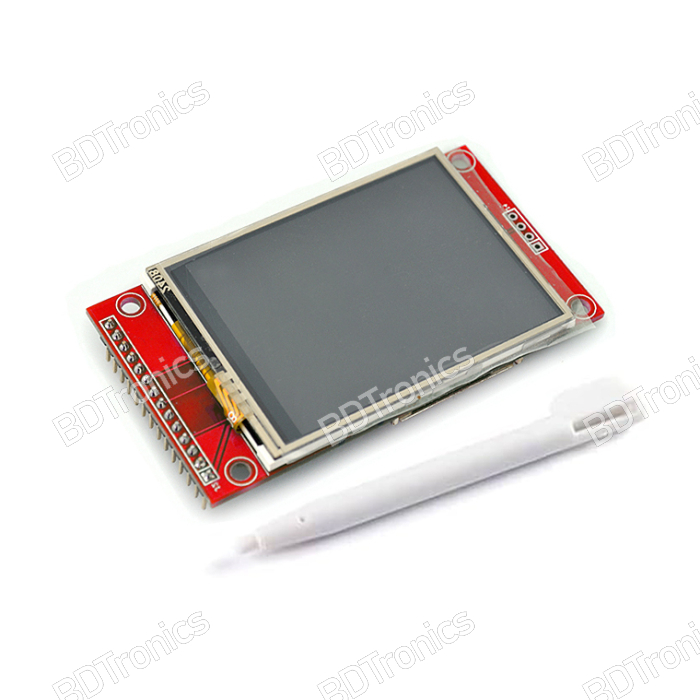

3. Resistive Touch Panel:

   • Supports touch interaction for enhanced usability.

4. Built-In SD Card Slot:

   • Allows image and file storage for dynamic display applications.

5. Wide Viewing Angle and Contrast:

   • Provides excellent readability and a visually appealing display.

6. Low-Power Consumption:

   • Operates efficiently with 3.3V logic and power supply.

7. ILI9341 Driver:

   • Supported by a wide range of libraries (e.g., Adafruit GFX, TFT_eSPI) for quick development.

Specifications:

• Display Type: TFT LCD
• Screen Size: 2.4 inches
• Resolution: 240x320 pixels (QVGA)
• Touch Panel: Resistive
• Driver IC: ILI9341
• Interface: SPI (Serial Peripheral Interface)
• Input Voltage: 3.3V
• Pins: 10 (CS, RS, SCL, SDA, RST, LED, GND, VDD33)
• Viewing Angle: Wide, suitable for various lighting conditions
• SD Card Slot: Supported (2GB max tested)
• Backlight: Adjustable via LED pin
• Dimensions: Compact form factor

Pin Description:

Applications:

• IoT device interfaces
• Embedded system dashboards
• Home automation controls
• DIY electronics projects
• Portable multimedia players
• Interactive graphical user interfaces
