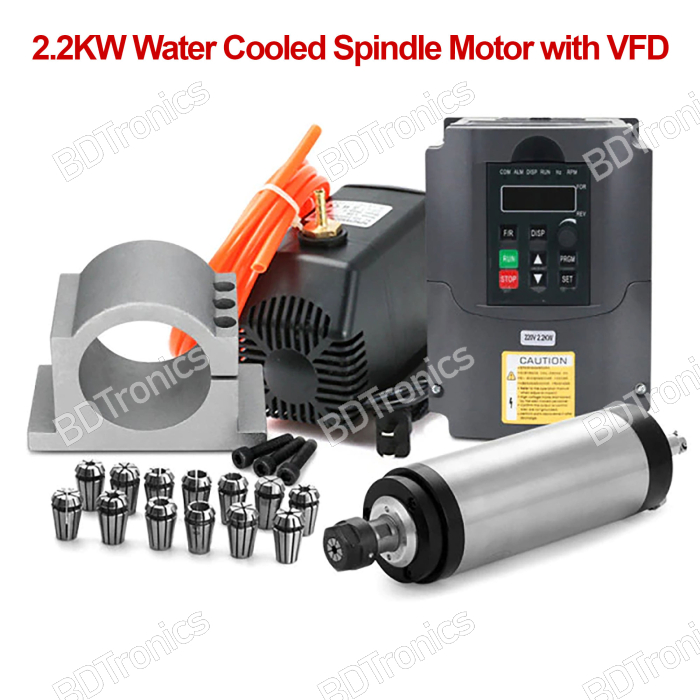

The 2.2KW Water-Cooled CNC Spindle Motor Kit is designed for CNC routers, engraving machines, and woodworking applications that require high-speed and powerful rotary cutting. Available from BDTronics, this complete spindle package includes a 2.2KW water-cooled spindle motor, variable frequency drive (VFD), water pump, cooling pipes, aluminium spindle clamp, and ER11 collet set.

With a maximum spindle speed of 24,000 RPM and adjustable operating frequency up to 400Hz, this spindle kit is suitable for engraving, milling, routing, and cutting compatible materials. Its water-cooling system helps maintain the spindle's operating temperature during extended machining sessions, making it a practical choice for CNC woodworking machines and DIY CNC router projects.

Features:

• 2.2KW Water-Cooled Spindle: Powerful spindle motor designed for CNC engraving, milling, routing, and cutting applications.

• 80mm Motor Diameter: Designed for CNC machines and mounting systems compatible with an 80mm spindle body.

• High-Speed Operation: Supports spindle speeds up to 24,000 RPM with variable frequency control.

• Water-Cooling System: Includes an AC water pump and cooling pipes to circulate water through the spindle and help control operating temperature.

• Variable Frequency Drive: Included 2.2KW VFD controls spindle speed by adjusting the output frequency.

• ER11 Collet Compatibility: Includes 13 collets for holding different cutting tool shank sizes.

• Precision Bearings: Uses four bearings, specified as 2 × C7005 and 2 × C7002.

• Low Runout: Specified runout is less than 0.1mm.

• Aluminium Spindle Clamp: Includes an aluminium mounting clamp with a sandblasted surface finish.

• Advanced VFD Functions: Supports PID control, programmable speed settings, RS485 Modbus communication, automatic voltage regulation, and multiple protection functions.

• CNC Router Integration: Suitable for compatible CNC routers, engraving machines, and woodworking machinery.

Specifications:

Spindle Motor

• Power: 2.2KW

• Motor Diameter: 80mm

• Voltage: 110V / 220V (as specified for the motor version)

• Frequency: 0–400Hz

• Maximum Speed: 24,000 RPM

• Cooling Method: Water-cooled

• Collet Type: ER11

• Runout: Less than 0.1mm

• Lubrication: Grease lubrication

• Bearings: 2 × C7005 + 2 × C7002

Variable Frequency Drive (VFD)

• Rated Power: 2.2KW

• Input Voltage: 110V / 220V AC, 50Hz (depending on the supplied version)

• Output Voltage: 0–110V / 0–220V AC, three-phase (depending on the VFD version)

• Output Frequency: 0–400Hz

• Control Features: PID control, programmable speed control, RS485 Modbus communication, AVR, and protection functions

• Recommended Parameter Settings:

  • PD003 = 400

  • PD004 = 400

  • PD005 = 400

Water Pump

• Operating Voltage: 220–240V AC

• Frequency: 50Hz

• Power: 80W

• Maximum Flow Rate: 3,500L/hour

• Pump Structure: Single-stage pump

ER11 Collet Set

• Collet Type: ER11

• Included Sizes: 1mm, 2mm, 3.175mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12.7mm, 13mm

• Quantity: 13 pieces

Spindle Clamp

• Material: Aluminium

• Surface Finish: Sandblasted

• Clamp Diameter: 80mm

Water Cooling Pipes

• Length: 5 metres

• Inner Diameter: 6mm

• Outer Diameter: 8mm

Applications:

• CNC woodworking and furniture manufacturing

• Wooden door engraving, milling, and cutting

• CNC router engraving and carving

• Acrylic and plastic machining with suitable cutting tools

• Sign making and decorative engraving

• DIY CNC router construction and upgrades

• Small-scale CNC production and prototyping

Installation and Usage Notes:

• Connect the spindle motor to the VFD according to the motor and inverter wiring diagrams.

• Connect the water pump and cooling pipes to the spindle's water-cooling inlet and outlet.

• Fill and circulate the cooling system before starting the spindle.

• Never operate the spindle without water circulation. Insufficient cooling can damage the spindle.

• Configure the VFD according to the spindle's rated voltage, current, frequency, and wiring requirements.

• The supplied VFD parameters PD003, PD004, and PD005 are specified as 400. Do not change these settings unless necessary and supported by the equipment instructions.

• Confirm that the VFD input voltage matches your available power supply. A 110V and a 220V version are not interchangeable without checking the electrical specifications.

• Ensure proper grounding, electrical protection, and secure mounting before operation.

Package Contents:

• 1 × 2.2KW Water-Cooled CNC Spindle Motor (80mm)

• 1 × 2.2KW VFD Inverter

• 1 × Water Pump (specified 3,500L/hour)

• 1 × 5-Metre Water Cooling Pipe Set

• 1 × 80mm Aluminium Spindle Clamp

• 13 × ER11 Collets (1mm, 2mm, 3.175mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12.7mm, 13mm)

Note: The original accessory specifications mention both ER11 and ER20 in different sections. The package contents list 13 ER11 collets, so this description follows the listed package contents. Confirm spindle taper and collet compatibility before ordering.
