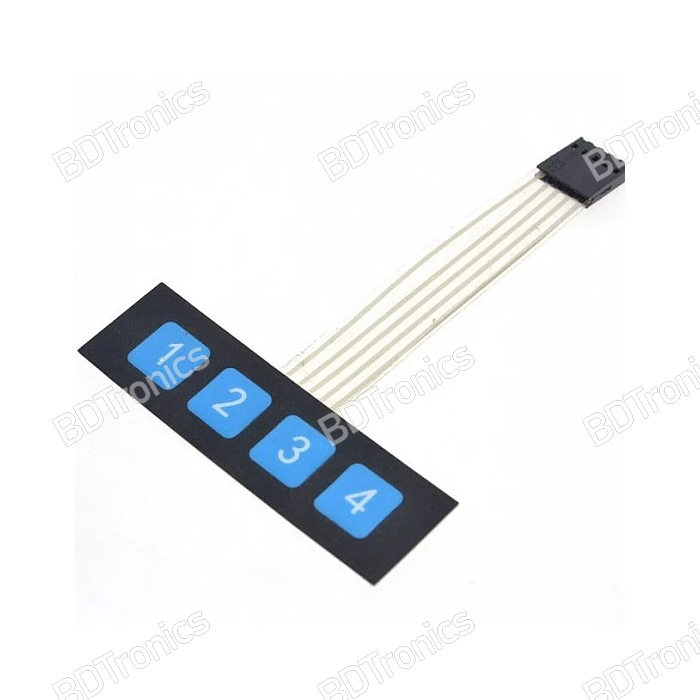

The 1x4 4 Key Matrix Membrane Switch Keypad Keyboard is a compact four-key input panel designed for control panels, embedded systems, industrial equipment, and DIY electronic projects. BDTronics offers this extended membrane keypad as a simple and space-efficient numeric or function-key interface for machines, controllers, automation systems, and custom electronic devices.

Its single-row 1x4 arrangement provides four independent key positions in a narrow footprint, making it suitable for applications where a conventional keypad would require too much panel space. The flexible membrane construction also allows easy integration into custom front panels and enclosures.

Features:

• 1x4 matrix keypad layout

• Four individual membrane keys

• Extended single-row keyboard design

• Compact and space-saving construction

• Flexible membrane switch design

• Suitable for numeric or function-key input

• Designed for control panel applications

• Easy to integrate into custom electronic equipment

• Suitable for SCM and microcontroller-based systems

• Compatible with Arduino, ESP32, PLC, and other controllers when electrically interfaced correctly

• Suitable for industrial automation and machine control

• Useful for DIY electronics, robotics, and mechatronics projects

• BDTronics suitable for control panel and electronic input applications in Bangladesh

Specifications:

Applications:

• Control panel keypad

• Industrial machine controls

• Extended numeric keyboard

• Electronic equipment

• SCM control systems

• Microcontroller projects

• Arduino projects

• ESP32 projects

• PLC control interfaces

• Robotics control panels

• Automation equipment

• Access control systems

• DIY electronic devices

• Embedded control systems

• Custom machine interfaces

Matrix Keypad Operation:

The 1x4 keypad provides four switch inputs through its matrix-style electrical connections. When a key is pressed, the corresponding contacts are electrically connected. A suitable microcontroller, SCM, PLC, or other controller can detect the key press and assign different functions to each button.

The keypad itself is a passive switch interface, so the required pull-up, pull-down, scanning, or input circuitry depends on the controller being used.

Control Panel Integration:

The slim single-row arrangement is useful for mounting several function buttons along the edge of a display or control panel. It can be used for functions such as Up, Down, Enter, Back, Start, Stop, Menu, or four numeric/function inputs depending on how the controller firmware is configured.
