1S 3.7V Lithium-Ion Battery Capacity Indicator Module
Out of stock
This product is out of stock. Are you interested about this product?
Order before 12.00PM

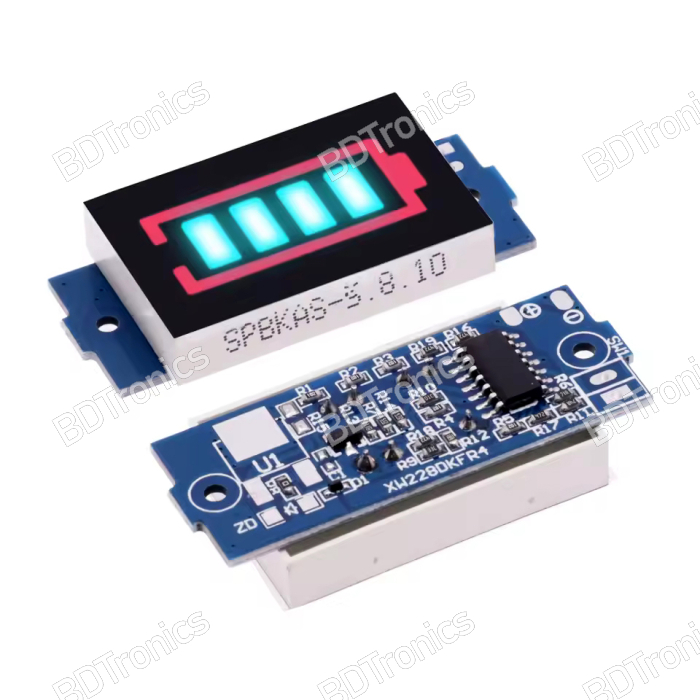

This compact battery level indicator module is designed to visually display the charge level of multi-cell battery packs using a segmented LED bar. It is particularly well-suited for 1S (3.7V) lithium-ion battery.
The module features a red outline to indicate the battery shape and green LED segments that progressively light up based on the current battery voltage. It is ideal for portable electronics, battery-powered tools, and DIY energy storage systems where quick visual feedback of battery charge status is needed.
Features:
-
Battery Compatibility: Lithium-ion, Lead-Acid, and NiMH battery packs
- Voltage Thresholds: Segment activation based on nominal cell voltage
-
Visual Display: Red battery outline with green LED level indicators
-
Compact Size: Easily mounts onto enclosures or dashboards
-
Low Power Consumption: Efficient voltage detection without high drain
Specifications:
| Parameter | Specification |
|---|---|
| Compatible Battery Types | Li-Ion, Lead Acid, NiMH |
| Default Configuration | 1S (3.7V nominal) |
| Voltage Range | Based on number of cells × 1S voltage level |
| Display Type | 4-segment LED with red battery outline |
| Segment Illumination Thresholds | (Here, N = 1) |
| – No Segments | Voltage < (3.3V × N) |
| – 1 Segment | Voltage ≥ (3.3V × N) |
| – 2 Segments | Voltage ≥ (3.5V × N) |
| – 3 Segments | Voltage ≥ (3.7V × N) |
| – 4 Segments | Voltage ≥ (3.9V × N) |
| Display Dimensions | ~31.4 mm × 20 mm |
| Module Dimensions | ~43.8 mm × 20 mm × 8.7 mm |
| Mounting Hole Diameter | ~2.0 mm |
| Mounting Hole Spacing | ~37 mm (center to center) |
Applications:
-
Battery-powered electronics and handheld devices
-
DIY lithium battery packs and power banks
-
Electric bikes and scooters
-
Portable power supplies and solar energy systems
-
Robotics and embedded systems
