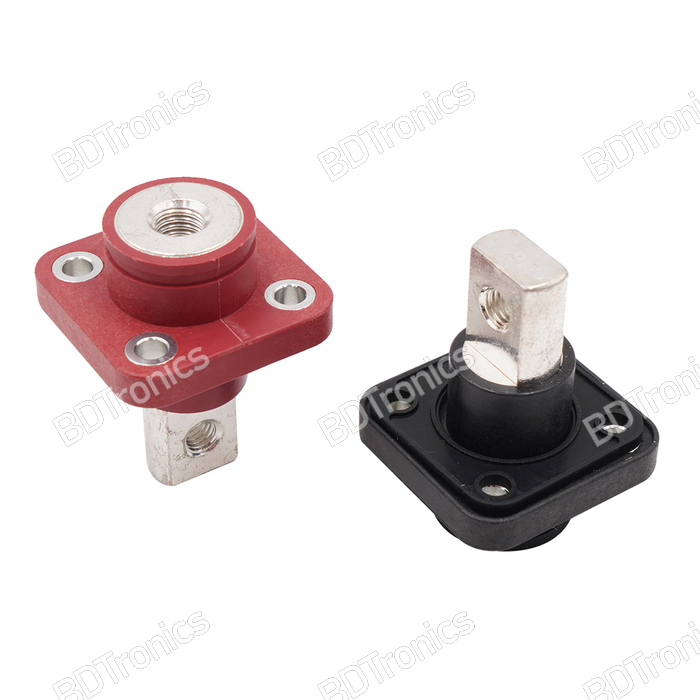

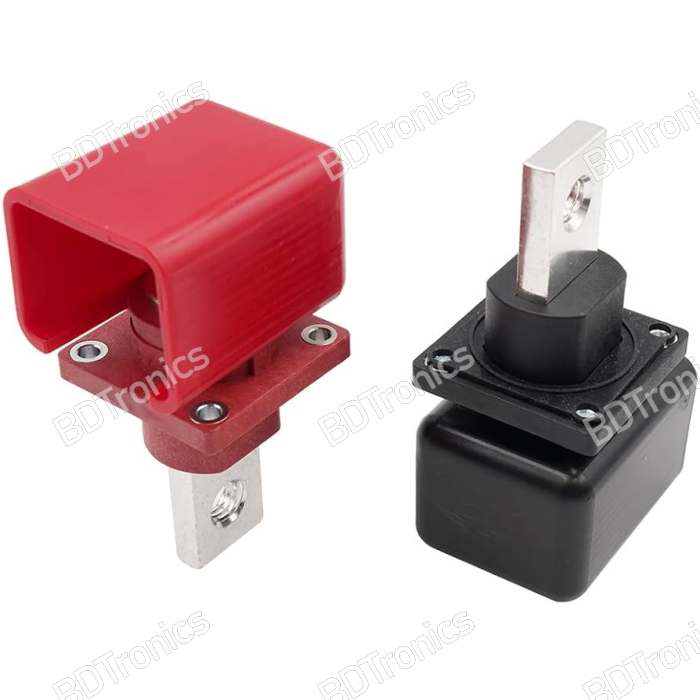

The 150A Industrial Heavy-Duty High Current Battery Terminal is engineered for Lithium Iron Phosphate (LiFePO4) battery packs, DIY energy storage systems, and custom battery enclosures. Designed for both professional and DIY builders, this terminal ensures safe, efficient, and stable high-current connections. Built from pure copper with zinc plating, it offers superior conductivity, corrosion resistance, and minimal voltage drop even under continuous high-load operation.

The terminal housing is made from high-temperature resistant and fireproof PA66 material, providing insulation and protection against short circuits, arcing, and environmental wear. The M8 internal screw connection allows a firm and secure link to the battery busbar, while the M5 flange mount ensures mechanical stability during vibration or thermal expansion.

Ideal for solar energy storage systems, powerwall batteries, EV conversion projects, marine applications, and industrial-grade battery setups, this terminal ensures maximum efficiency and durability for long-term use.

Features:

• Heavy-duty 150A continuous current handling capacity

• Pure copper conductor with zinc plating for superior conductivity and anti-corrosion protection

• High dielectric strength up to 3000V ensuring safe insulation

• Flame-retardant UL94 V-0 PA66 housing for fireproof performance

• Designed for LiFePO4 and high-power lithium battery systems

• Easy installation with M8 busbar connection and M5 flange mount

• High temperature resistance up to 125°C, suitable for harsh industrial environments

• Perfect for DIY battery builders, solar ESS projects, and EV battery packs

Specifications:

• Model: IF-FM8M5-3543-150A

• Current Rating: 150A

• Voltage Rating: 1000VDC Max

• Dielectric Strength: 3000V

• Mounting Screw Size: ⌀4.5mm × 4

• Mounting Hole Size: ⌀18.5mm

• Mounting Type: Bulkhead

• Terminal Size: 23 × 23mm

• Contact Termination: Busbar, Screw

• Termination Thread: M8

• Material: PA66 / H62 Brass

• Operating Temperature: -40℃ ~ 125℃

• Flammability Rating: UL94 V-0

• High Temperature & Fireproof Certified

Package Includes:

• 1 x Red Terminal

• 1 x Black Terminal

• 4 x M4.5 Screw and Nut Set

• 1 x M8 Battery Connect Screw
