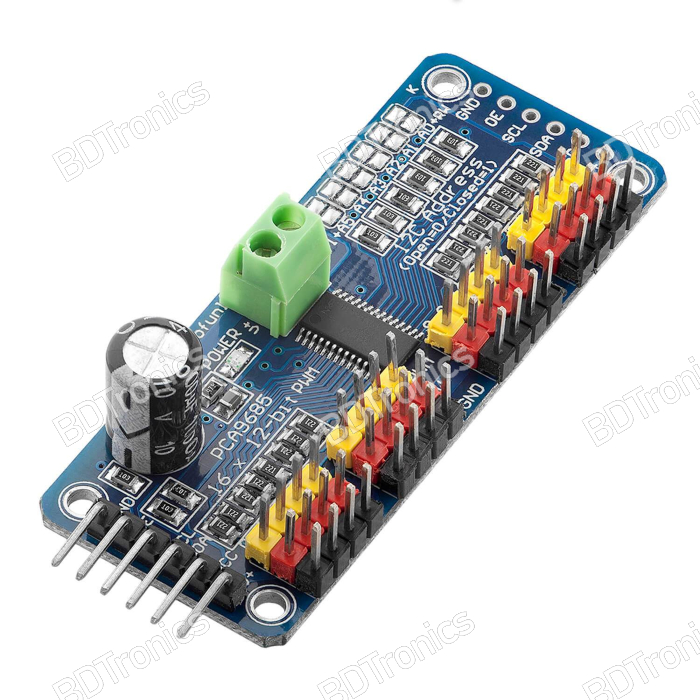

16 Channel 12-bit PWM Servo Driver Controller I2C interface PCA9685 for Arduino
In stock
Order before 12.00PM
The PCA9685 is a versatile and powerful 16-channel, 12-bit PWM servo driver IC designed for seamless integration with Raspberry Pi and other microcontrollers. This IC is perfect for controlling servo motors, LEDs, and other PWM-enabled devices, making it an essential component for robotics and automation projects.
Features:
- 16 PWM Outputs: Control up to 16 PWM channels simultaneously with high precision.
- 12-Bit Resolution: Achieve 4096 steps for smooth and accurate PWM signal generation.
- Adjustable Frequency: Pulse frequency adjustable up to 1.6 kHz, enabling precise control for various applications.
- Built-in Clock Generator: No external clock required—reducing dependency on the Raspberry Pi or microcontroller for continuous signal transmission.
- I²C Interface: Easily connect and control using the Raspberry Pi’s I²C bus.
- Daisy Chain Capability: Link up to 62 drivers for 992 independent PWM channels using just one controller.
Specifications:
- Voltage Input: 3.3V to 5.5V
- Frequency Range: Adjustable up to 1.6 kHz
- Output Channels: 16 independent PWM outputs
- Interface: I²C (up to 400 kHz)
- Dimensions: Compact and easy to integrate into projects
- Compatibility: Works with Raspberry Pi, Arduino, ESP boards, and other I²C-compatible devices
Applications:
- Robotics (servo motor control for arms, legs, etc.)
- LED lighting control (dimming, color mixing, etc.)
- Model aircraft, cars, and boats
- Automatic control systems
- Precision automation projects
Advantages Over Alternatives:
- Unlike the TLC5940, the PCA9685 includes a built-in clock generator, reducing the computational load on your microcontroller.
- Independent signal generation allows your Raspberry Pi to focus on other tasks.
- Daisy chain layout simplifies large-scale projects, avoiding cable clutter.
Package Includes:
- 1 x PCA9685 Servo Driver Module
