Battery Load Tester Capacity Meter 150W 20A
This product is out of stock. Are you interested about this product?
Order before 12.00PM

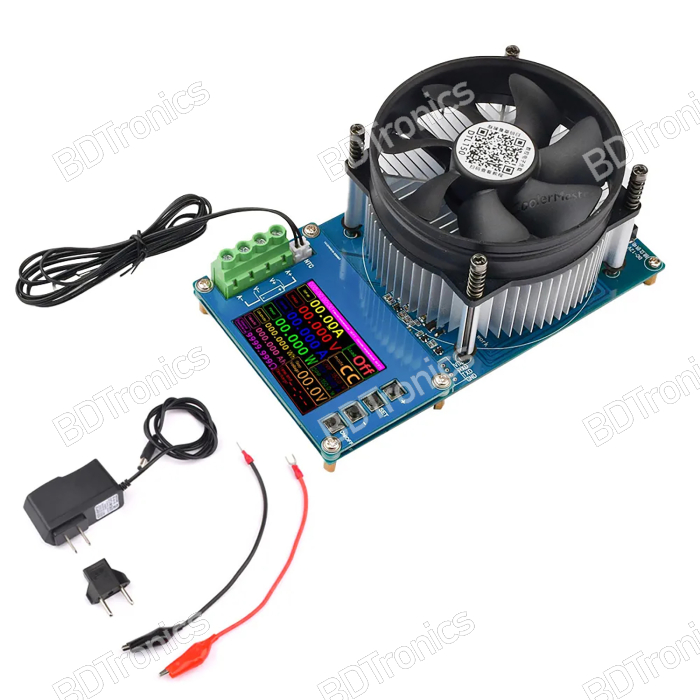

The DTL150 Battery Capacity Meter is a highly accurate, feature-rich electronic load tester capable of measuring voltage, current, power, energy, capacity, resistance, and temperature. With up to 150W / 20A discharge capability, it’s perfect for testing batteries, adapters, chargers, and cables across various interfaces including USB-A, USB Type-C, Micro USB, Mini USB, and high-current screw posts.
Features:
-
Real-time testing of voltage, current, power (W), capacity (Ah), energy (Wh), resistance (Ω), and temperature
-
3.7” STN LCM Display: Clear, yellow-green, anti-glare screen with 10 main display modes + 4 alarm display interfaces
-
Rich input options: 20A screw post, USB Type-A, Mini USB, Micro USB, Type-C, 5.5*2.1mm DC plug
-
Integrated heat sink + 3.7” silent fan for 150W cooling (22±3dBA, >40,000 hrs lifespan)
-
Smart fan control: Activates at >40°C, reduces wear and noise
-
12×12mm light-touch button with multi-function input and 100,000 press life
-
Dual adjustable knobs (270°±5°) for precise resistance tuning
-
Double-layer PCB design in a firm, elegant ABS shell with copper fasteners
-
Multiple protections: Over-voltage, over-current, over-power, low-voltage cutoff with visual + buzzer alarms
-
Includes 100V–240V AC to 12V DC power supply, manual, and protective EVA-lined case
Operation Guide:
Mode Button Functions (by Interface)
| Interface | Operation Description |
|---|---|
| 1–5 | Click to cycle display modes |
| 2–4 | - Long press: Clear all records- Double click: Reset Ah (capacity)- Triple click: Reset Wh (power)- Quadruple click: Reset timer- 7 consecutive presses (no-load): Current zero calibration (essential for low current accuracy)- Factory Reset: Clears all user parameters |
| 6, 7, 9, 11, 13 | - Double click: Increase parameter- Double click + hold: Continuous increase- Triple click: Decrease- Triple click + hold: Continuous decrease |
Specifications:
| Parameter | Value |
|---|---|
| Power Input Voltage | DC 6–12V (via included adapter) |
| Voltage Test Range | 0–150V (±0.05V) |
| Current Test Range | 0–10A (±0.05A) |
| Capacity Range | 0–999.999Ah (±0.001Ah) |
| Energy Range | 0–99999.9Wh (±0.01Wh) |
| Power Range | 0–2999.9W (±0.01W) |
| Resistance Range | 0–999.9Ω (±0.01Ω) |
| Temperature Range | 0–99°C (±1°C) |
| Timing Range | Up to 999:59:59 (1-second resolution) |
| Fan Cooling Power | Up to 150W |
| Fan Auto On Threshold | >40°C |
| Standby Reminder | <2W for 0.5 hours |
| Timing Start Threshold | >0.5W |
| Refresh Rate | >500ms per update |
| Measurement Rate | 0.5 times/sec |
| Over-limit Auto Stop | - Voltage: 0–150V- Current: 0–10A- Power: 0–150W |
| Display | 3.7" STN LCM, Yellow-Green background |
| Consumption | <1.5A |
| Input Ports | 20A screw terminals, USB-A, USB-C, Mini USB, Micro USB, 5.5×2.1mm plug |
| Device Dimensions | 149×96×80 mm |
| Package Dimensions | 195×105×135 mm |
| Operating Temperature | -10°C to +60°C |
| Humidity Range | 10% – 80% RH |
What’s in the Box:
-
1 × DTL150 Battery Load Tester
-
1 × AC 100–240V to 12V Power Adapter
-
1 × Chinese & English Instruction Manual
-
1 × Sturdy EVA Foam-Lined Protective Carton
⚠️ Important Usage Notes
-
Only the 20A occlusion screw terminals support up to 10A input current. USB ports are for lower currents and should not be overloaded.
-
For accurate low-current testing, use the seven-click zero calibration in a no-load state.
-
Always confirm input voltage, current, and power are within safe limits before connecting.
-
Fan auto-starts at 40°C+, ensuring safe operation during long-duration or high-wattage tests.
Applications:
-
Lithium, NiMH, and lead-acid battery capacity testing
-
Power adapter and charger output testing
-
USB cable quality and voltage drop diagnostics
-
DIY electronics, RC battery load analysis, lab equipment
