Technical Specifications:

• Input voltage: DC 12V (Range 10 – 15V)
• Output voltage: AC 220V
• Output waveform: Modified sine wave
• Fuse: 10A / 15A / 20A / 40A / 70A
• Low Battery Alarm (nominal): 9.5 – 11.0V
• Low Battery Shutdown Point (nominal): 9.0 – 10.5V
• High Battery Shutdown Point (nominal): 14.5 – 15.5V
• Unload current: Less than 0.3A
• Conversion efficiency: More than 80 percent
• RATED AC Output Power: 1500W
• Package weight: 0.9 kg
• Product dimension (excluding terminals): 17.50 x 9.50 x 5.50 cm

Features:

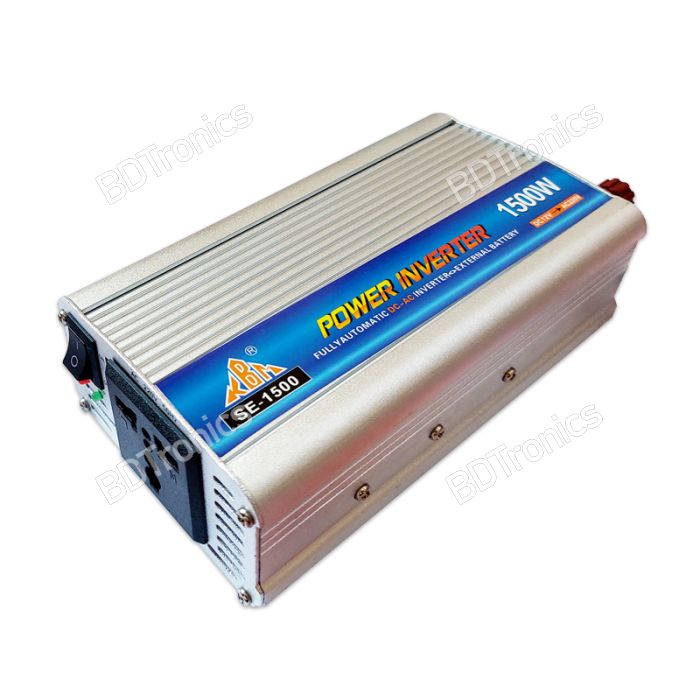

• 1500W modified sine wave power inverter, convert DC 12V to AC 220V.
• Over temperature protection, overload protection, over voltage protection.
• Steady and Precise Output Voltage. Proving steady voltage to protect device and extend device service life.
• Built-in low noise cooling fan ensures better air flow to keep the internal circuitry cool during operation.
• Full Voltage Protection. Over temperature protection, overload protection, over voltage protection. Guarantee the inverter and electronic equipment safe.
• LED Indicator Light Display Real-Time Voltage Situation. The LED indicator light should be green when it is normal. The red indicator light indicate inverter shut down caused by low or high voltage, overload or excessive temperature.
• Universal Plug. Compatible with EU/UK/US plug easily.
• Complete isolation-type inverter technology, noiseless output
• Dynamic current loop control technology to ensure inverter reliable operation.
• Wide DC input voltage range
• Excellent EMC design
• Low output harmonic distortion.
• LED indicators display input voltage range, load power range, normal output & failure state
• Wide working temperature range.
• Continuous operation at full power

Package Includes:

• 1 x 1500W power inverter
• 1 x pair battery cable clip
