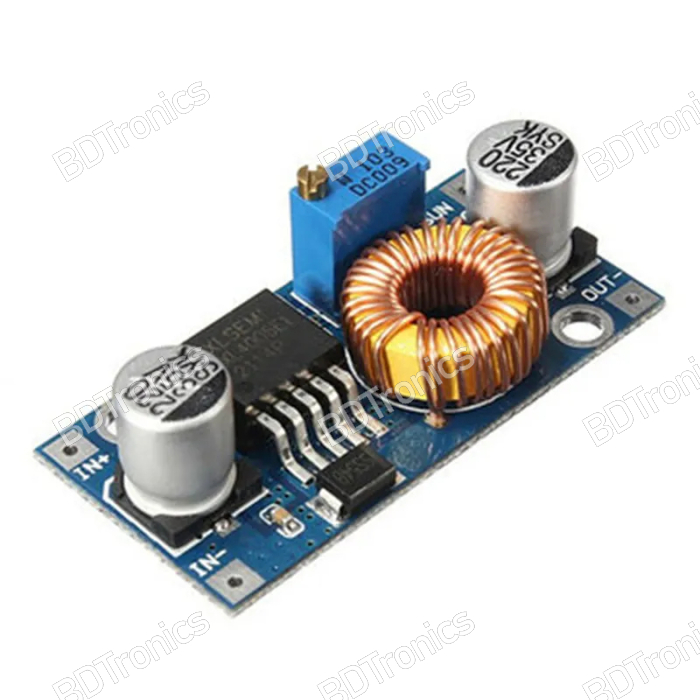

XL4005 DC-DC 5-32V Adjustable Step Down 5A Buck Power Supply Module

Input voltage range: DC 5V-32V Output voltage range: 0.8V-30V DC adjustable. Output current: 0-5A. High efficiency up to 96%

In stock

SKU PRD-00002699
Categories: Modules
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

This module features the adjustable XL4005 step-down (buck) switching regulator, capable of driving a 5A load with excellent line and load regulation.

This module has a multi-turn trim pot (potentiometer) that you can use to adjust the output voltage. Since the trim pot has 25 turns of adjustment you can easily adjust the output of the module to exactly the voltage you need.

The simplest way to reduce the voltage of a DC supply voltage is to use a linear voltage regulator (LDO), but linear regulators step down voltage by dissipating the excess energy as heat and do not yield any current step up. Buck converters, on the other hand, can be remarkably efficient and provide a step up in current output. Buck converters are one of the best ways to provide a regulated voltage from a battery since they don’t waste near as much energy in the process of dropping the input voltage as a linear regulator would waste.



Features:

  • Wide 5V to 32V Input Voltage Range
  • Output Adjustable from 0.8V to 30V
  • Maximum Duty Cycle 100%
  • Minimum Drop Out 0.6V
  • Fixed 300KHz Switching Frequency
  • 5A Constant Output Current Capability
  • Internal Optimize Power MOSFET
  • High efficiency



Specifications:

Input Voltage DC 5V – 32 V
Output Voltage 0.8V ~ 30V
Max. Output Current 0 to 5A
Length 43mm
Width 20mm
Height 15mm
Weight 12 gm



Package Includes:

1 x XL4005 DC-DC 5-32V Adjustable Step-Down 5A Buck Power Supply Module.

arrow-down
Show More

You might also be interested in...

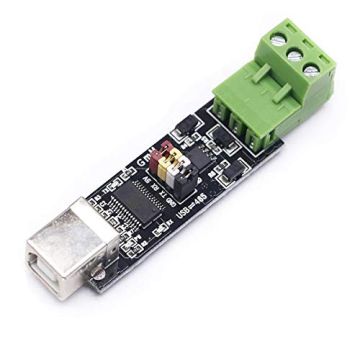

USB 2.0 to TTL RS485 Serial Converter Adapter FTDI Module
BDT 359.00
NRF24L01+ 2.4Ghz Wireless Module Adapter
BDT 193.00
Openlog Serial Data Logger Module SD Card Support
BDT 780.00

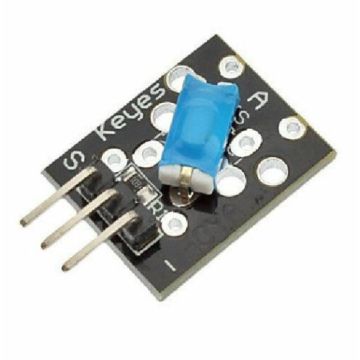

KY-020 Standard Tilt Switch Sensor Module
BDT 272.00
MQ9 Gas Sensor Module
BDT 184.00
Raspberry Pi 5MP Camera Module OV5647 (Chinese)
BDT 1,186.00

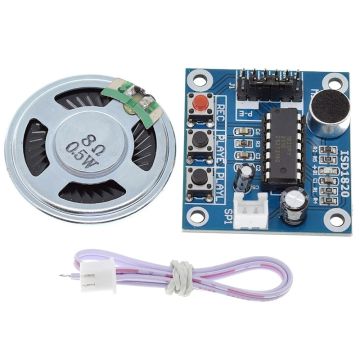

ISD1820 Voice Recorder Module with Microphone + Loudspeaker
BDT 274.00

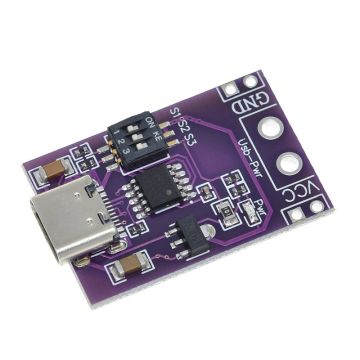

Quick Charge QC2 QC3 AFC PD2.0 PD3.0 Fast Charging Module Board USB Type-C
Special Price BDT 199.00 Regular Price BDT 250.00

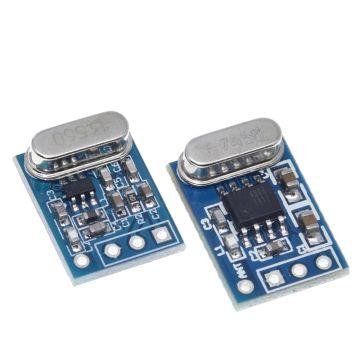

433MHZ Wireless Transmitter Receiver Module SYN115 SYN480R
