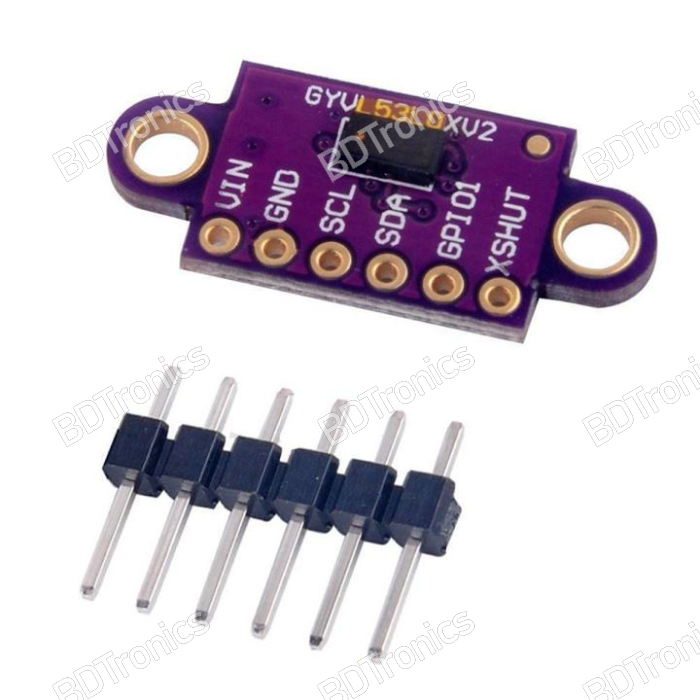

VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Module 940nm GY-VL53L0XV2

The VL53L0X laser range finder is a high-precision distance sensor that based on new Time-of-Flight (ToF) principle. VL53L0X provides accurate distance measurement whatever the target reflection unlike traditional technology. It can measure absolute distances up to 2m.

In stock

SKU PRD-00001202
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Technical Specifications:

  • Power supply: 2.6-5.5V DC
  • Operating Voltage: 2.8V
  • Infrared emitter: 940nm
  • Range: 30-2000mm
  • FOV: 25°
  • Ranging Accuracy: ±3%
  • Sampling Time: <= 30ms
  • Operating Temperature: -20-70 °C
  • Interface Type: Gravity-I2C
  • Product Size: 20*22 mm/ 0.787*0.866 inches



Pin Descriptions:

  • VIN: This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I2C lines high to this level.
  • GND: The ground (0 V) connection for your power supply. Your I2C control source must also share a common ground with this board.
  • SDA: Level-shifted I2C data line: HIGH is VIN, LOW is 0 V
  • SCL: Level-shifted I2 C clock line: HIGH is VIN, LOW is 0
  • VXSHUT: This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted.
arrow-down
Show More

You might also be interested in...

LJ8A3-4-Z/BX Inductive Proximity Sensor NPN NO DC 6-36V
Special Price BDT 495.00 Regular Price BDT 574.00
LJ18A3-8-Z/BX Inductive Proximity Sensor NPN NO DC 6-36V
Special Price BDT 495.00 Regular Price BDT 594.00
SCT-013-000 100A Non-invasive AC Current Sensor
BDT 757.00
MAX31865 Platinum PT100 RTD Temperature Sensor Amplifier Module
BDT 1,164.00

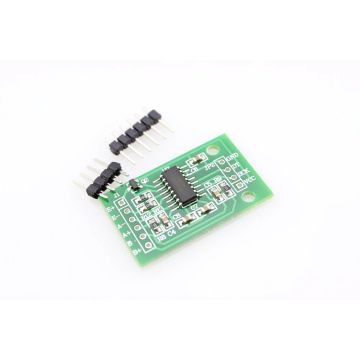

HX711 Dual-Channel 24 Bit Precision A/D weight Pressure Sensor
BDT 193.00

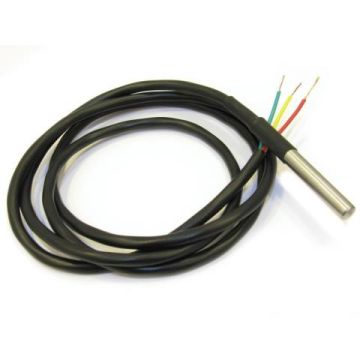

Ds18b20 Waterproof Digital Temperature Sensor Probe - 3 Meter
BDT 155.00
ACS758 50A ACS758LCB-050B Current Sensor
Special Price BDT 585.00 Regular Price BDT 650.00
MQ2 Methane Butane LPG Smoke Gas Sensor Module
BDT 233.00

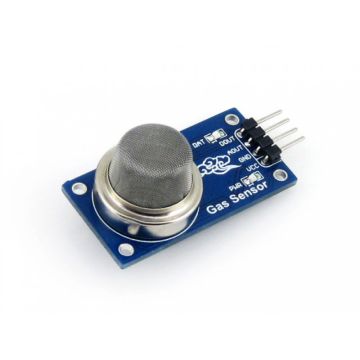

MQ5 Gas Sensor
